# FILE: pages/changelog/v1.0.0-beta.mdx
---
version: "v1.0.0"
title: "Release Loro v1.0.0"
date: 2024/10/21
# breakingChange: false
# category: ["Encoding", "Tree"]
---
We are very excited to announce the release of Loro v1.0, a major milestone.
It has a stable encoding format, faster document import and export speed, better version control capabilities, and a shallow snapshot. For more information, please check [the blog](https://loro.dev/blog/v1.0).
The following are the specific API changes:
## New
### LoroDoc
- `getChange(id: ID)`: get `ChangeMeta` by `ID`.
- `setDetachedEditing(flag: boolean)`: Enables editing in detached mode, which is disabled by default.
- `isDetachedEditingEnabled()`: Whether the editing is enabled in detached mode.
- `setNextCommitMessage(msg: string)`: Set the commit message of the next commit.
- `shallowSinceVV()`: The doc only contains the history since this version.
- `shallowSinceFrontiers()`: The doc only contains the history since this version.
- `export(mode: ExportMode)`: Export the document based on the specified ExportMode. see more details [here](/docs/tutorial/encoding).
- `getDeepValueWithID()`: Get deep value of the document with container id.
- `subscribeLocalUpdates(callback:(bytes: Uint8Array) => void)`: Subscribe to updates from local edits.
- `getPathToContainer(id: ContainerID)`: Get the path from the root to the container.
- `JSONPath(jsonPath: string)`: Evaluate JSONPath against a LoroDoc.
- `forkAt(frontiers: Frontiers): LoroDoc`: Creates a new LoroDoc at a specified version (Frontiers)
- `getPendingTxnLength():number`: Get the number of operations in the pending transaction.
- `travelChangeAncestors(ids: ID[], callback: (meta: ChangeMeta)->bool)`: Iterate over all changes including the input id in order, and stop iterating if the callback returns false.
### LoroText
- `updateByLine(text: string)`: Update the current text based on the provided text line by line like git.
### LoroList
- `toArray(): ValueOrContainer[]`: Get elements of the list. If the value is a child container, the corresponding `Container` will be returned.
- `clear()`: Delete all elements in the list.
### LoroMovableList
- `toArray(): ValueOrContainer[]`: Get elements of the list. If the value is a child container, the corresponding `Container` will be returned.
- `clear()`: Delete all elements in the list.
### LoroMap
- `clear()`: Delete all key-value pairs in the map.
### LoroTree
- `enableFractionalIndex(jitter: number)`: Set whether to generate fractional index for Tree Position.
- `disableFractionalIndex()`: Disable the fractional index generation for Tree Position when
you don't need the Tree's siblings to be sorted. The fractional index will be always default.
- `isFractionalIndexEnabled()`: Whether the tree enables the fractional index generation.
- `isNodeDeleted(id: TreeID)`: Return `undefined` if the node is not exist, otherwise return `true` if the node is deleted.
- `getNodes(prop: getNodesProp): LoroTreeNode[]`: Get the flat array of the forest. If `with_deleted` is true, the deleted nodes will be included.
### UndoManager
- `clear()`: Clear the Undo and Redo stack of `UndoManager`
## Changes
### LoroDoc
- Move `setFractionalIndexJitter()` to `LoroTree`, you can set whether to enable or disable it for each `Tree Container`.
- `import()`, `importWith()` and `importJsonUpdates` will return `ImportStatus` for indicating which ops have been successfully applied and which ops are pending.
- New Subscription for event.
- In Loro 1.0, `doc.version()` `doc.frontiers()` `doc.oplogVersion()` and `doc.oplogFrontiers()` even if ops has not been committed, it indicates the latest version of all operations.
- rename `Loro` to `LoroDoc`.
### LoroTree
- `contains(id: TreeID)`: Return true even if the node exists in the internal state and has been deleted.
- `nodes()`: deleted nodes will be included now, you can use `isDeleted()` to filter.
- `toJSON()`: Now use the hierarchical approach to express the tree structure.
## Deprecation
### LoroDoc
- `exportFrom(version)` and `exportSnapshot()` are deprecated, use `export(mode: ExportMode)` instead.
# FILE: pages/changelog/v1.3.0.mdx
---
version: "v1.3.0"
title: "Release Loro v1.3.0"
date: 2025/01/09
---
## New
- UndoManager's `onPush` now can access the change event.
- add getShallowValue for each container.
### LoroDoc
- `toJsonWithReplacer(replacer: (k, v)=>Value)`: Convert the document to a JSON value with a custom replacer function.
- `revertTo(frontiers: Frontiers)`: Revert the document to the given frontiers.
- `findIdSpansBetween(from: Frontiers, to: Frontiers)`: Find the op id spans that between the `from` version and the `to` version.
- `exportJsonInIdSpan(idSpan: IdSpan)`: Export the readable [`Change`]s in the given [`IdSpan`].
## Fix
- fix: prevent merging remote changes based on local `changeMergeInterval` config [#643](https://github.com/loro-dev/loro/pull/643)
- fix: should commit before travel_change_ancestors [#599](https://github.com/loro-dev/loro/pull/599)
- fix: panic when detach then attach [#592](https://github.com/loro-dev/loro/pull/592)
- fix: move child in current parent [#589](https://github.com/loro-dev/loro/pull/589)
- fix: panic when returned non-boolean value from text.iter(f) [#578](https://github.com/loro-dev/loro/pull/578)
# FILE: pages/changelog/v1.1.0.mdx
---
version: "v1.1.0"
title: "Release Loro v1.1.0"
date: 2024/11/09
---
## New
### LoroDoc
- `forkAt(frontiers: Frontiers)`: Fork the document at the given frontiers.
- `getChangedContainersIn(id: ID, len: number)`: Gets container IDs modified in the given ID range.
- ``
### LoroText
- `getEditorOf(pos: number)`: Get the editor of the text at the given position.
- `push(s: string)`: Push a string to the end of the text.
### LoroMap
- `getLastEditor(key: string)`: Get the peer id of the last editor on the given entry
### LoroList
- `getIdAt(pos: number)`: Get the ID of the list item at the given position.
- `pushContainer(child: Container)`: Push a container to the end of the list.
### LoroMovableList
- `getCreatorAt(pos: number)`: Get the creator of the list item at the given position.
- `getLastMoverAt(pos: number)`: Get the last mover of the list item at the given position.
- `getLastEditorAt(pos: number)`: Get the last editor of the list item at the given position.
- `pushContainer(child: Container)`: Push a container to the end of the list.
### LoroTree
- `toJSON()`: Get JSON format of the LoroTreeNode.
## Fix
- fix get correct encode blob info [#545](https://github.com/loro-dev/loro/pull/545)
- fix: avoid creating non-root containers that doesn't exist by get_container api [#541](https://github.com/loro-dev/loro/pull/541)
- fix: define the fork behavior when the doc is detached [#537](https://github.com/loro-dev/loro/pull/537)
# FILE: pages/changelog/inspector-v0.1.0.mdx
---
version: "v0.1.0"
title: "Release Loro Inspector v0.1.0"
date: 2025/04/30
---
Try it here: [Loro Inspector](https://inspector.loro.dev/)
Now you can directly browse the current state and complete edit history of your Loro
documents in the browser. You can also use this tool to time travel to any version
in the history of your Loro document.
import { ReactPlayer } from "components/video";
# FILE: pages/changelog/v1.5.0.mdx
---
version: "v1.5.0"
title: "Release Loro v1.5.0"
date: 2025/04/04
---
## New
### 1. New Hooks
`doc.subscribePreCommit(listener)` - Modify commit options before processing:
This hook is particularly useful because doc.commit() is often invoked implicitly in various methods such as doc.import, doc.export, doc.checkout, and doc.exportJsonUpdates. Without this hook, users attempting to add custom messages to each commit might miss these implicit commit triggers.
```ts
const doc = new LoroDoc();
doc.setPeerId(0);
doc.subscribePreCommit((e) => {
e.modifier.setMessage("test").setTimestamp(Date.now());
});
doc.getList("list").insert(0, 100);
doc.commit();
expect(doc.getChangeAt({ peer: "0", counter: 0 }).message).toBe("test");
```
Advanced Example - Creating a Merkle DAG:
```ts no_run
const doc = new LoroDoc();
doc.setPeerId(0);
doc.subscribePreCommit((e) => {
const changes = doc.exportJsonInIdSpan(e.changeMeta);
expect(changes).toHaveLength(1);
const hash = crypto.createHash("sha256");
const change = {
...changes[0],
deps: changes[0].deps.map((d) => {
const depChange = doc.getChangeAt(idStrToId(d));
return depChange.message;
}),
};
hash.update(JSON.stringify(change));
const sha256Hash = hash.digest("hex");
e.modifier.setMessage(sha256Hash);
});
doc.getList("list").insert(0, 100);
doc.commit();
expect(doc.getChangeAt({ peer: "0", counter: 0 }).message).toBe(
"2af99cf93869173984bcf6b1ce5412610b0413d027a5511a8f720a02a4432853",
);
```
`doc.subscribeFirstCommitFromPeer(listener)` - Triggers on first peer interaction:
This hook provides an ideal point to associate peer information (such as author identity) with the document.
```ts
const doc = new LoroDoc();
doc.setPeerId(0);
doc.subscribeFirstCommitFromPeer((e) => {
doc.getMap("users").set(e.peer, "user-" + e.peer);
});
doc.getList("list").insert(0, 100);
doc.commit();
expect(doc.getMap("users").get("0")).toBe("user-0");
```

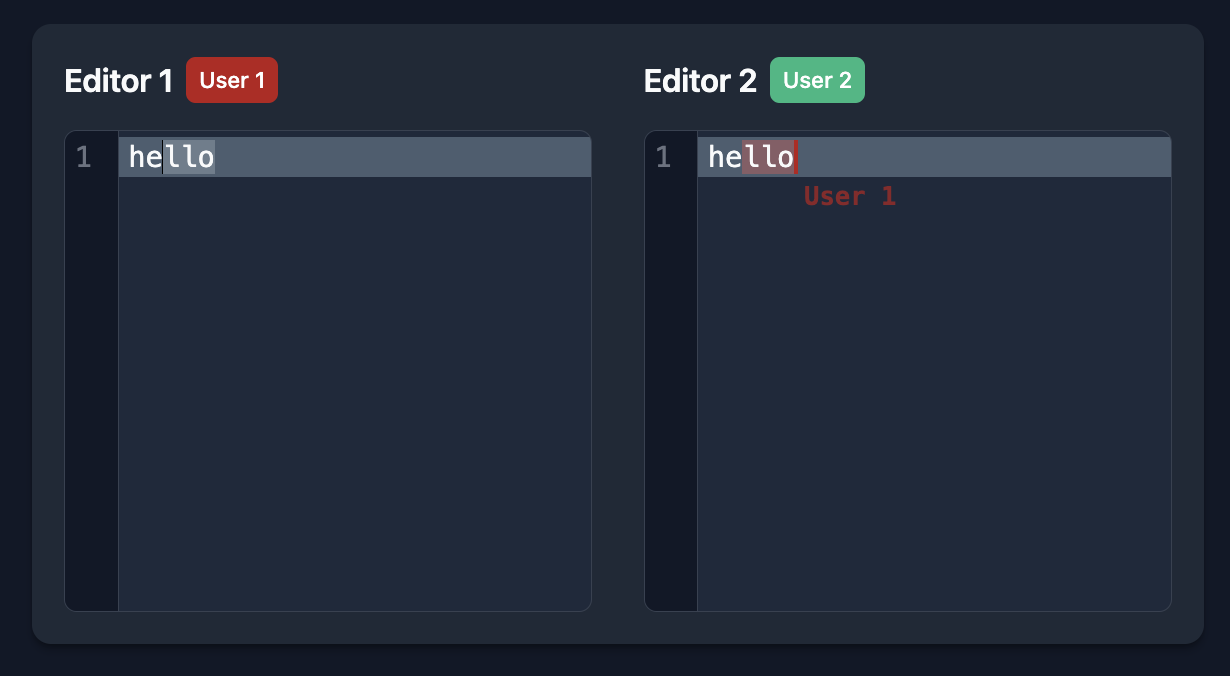

### 2. EphemeralStore
EphemeralStore is a better alternative to Awareness for ephemeral states:
Awareness is commonly used as a state-based CRDT for handling ephemeral states in real-time collaboration scenarios, such as cursor positions and application component highlights. As application complexity grows, Awareness may be set in multiple places, from cursor positions to user presence. However, the current version of Awareness doesn't support partial state updates, which means even minor mouse movements require synchronizing the entire Awareness state.
```ts no_run
awareness.setLocalState({
...awareness.getLocalState(),
x: 167,
});
```
Since Awareness is primarily used in real-time collaboration scenarios where consistency requirements are relatively low, we can make it more flexible. We've introduced EphemeralStore as an alternative to Awareness. Think of it as a simple key-value store that uses timestamp-based last-write-wins for conflict resolution. You can choose the appropriate granularity for your key-value pairs based on your application's needs, and only modified key-value pairs are synchronized.
```ts
import {
EphemeralStore,
EphemeralListener,
EphemeralStoreEvent,
} from "loro-crdt";
const store = new EphemeralStore();
// Set ephemeral data
store.set("user-alice", {
anchor: 10,
focus: 20,
user: "Alice"
});
// Encode only the data for `loro-prosemirror`
const encoded = store.encode("user-alice")
const newStore = new EphemeralStore();
newStore.subscribe((e: EphemeralStoreEvent) => {
// Listen to changes from `local`, `remote`, or `timeout` events
});
newStore.apply(encoded);
console.log(newStore.get("user-alice"))
// {
// anchor: 10,
// focus: 20,
// user: "Alice"
// }
```
## Fix
- Fixed text styling at end "\n" character
- Added JSON support for current transaction operations
- For environments that support multi-threading such as Rust and Swift, LoroDoc can now be directly and safely
shared and accessed in parallel across multiple threads without triggering the previous WouldBlock panic.
# FILE: pages/changelog/v1.4.7.mdx
---
version: "v1.4.7"
title: "Release Loro v1.4.7"
date: 2025/04/01
---
## New
- You can get the version of Loro by `LORO_VERSION`
- `setNextCommitOrigin(origin: string)`: Set the origin of the next commit.
- `setNextCommitTimestamp(timestamp: number)`: Set the timestamp of the next commit.
- `setNextCommitOptions(options: CommitOption)`: Set the options of the next commit.
- `clearNextCommitOptions()`: Clear the options of the next commit.
- `configDefaultTextStyle(style: TextStyle)`: Configures the default text style for the document.
- `getUncommittedOpsAsJson()`: Get the pending operations from the current transaction in JSON format
## Fix
- fix: memory leak issue [#647](https://github.com/loro-dev/loro/pull/647)
- fix: mark err on detached LoroText [#659](https://github.com/loro-dev/loro/pull/659)
- fix: detached loro text issues [#665](https://github.com/loro-dev/loro/pull/665)
- fix: entity index when the tree is empty [#670](https://github.com/loro-dev/loro/pull/670)
# FILE: pages/changelog/v1.2.0.mdx
---
version: "v1.2.0"
title: "Release Loro v1.2.0"
date: 2024/12/10
---
## New
- Add `isDeleted()` method to all container types (Text, Map, List, Tree, etc.)
### LoroDoc
- `changeCount()`: Get the number of changes in the oplog.
- `opCount()`: Get the number of ops in the oplog.
### VersionVector
- `setEnd(id: ID)`: Set the exclusive ending point. target id will NOT be included by self.
- `setLast(id: ID)`: Set the inclusive ending point. target id will be included.
- `remove(peer: PeerID)`: Remove the specific peer id.
- `length()`: Get the number of peers in the VersionVector.
## Change
- Return `ImportStatus` in the `importUpdateBatch` method.
- Fractional index is enabled by default now.
## Fix
- fix: getOrCreateContainer should not throw if value is null [#576](https://github.com/loro-dev/loro/pull/576)
- fix: dead loop when importing updates [#570](https://github.com/loro-dev/loro/pull/570)
# FILE: pages/changelog/v1.4.0.mdx
---
version: "v1.4.0"
title: "Release Loro v1.4.0"
date: 2025/02/13
---
## New
- add `unsubscribe()` for Subscription.
## Fix
- fix: getting values by path in LoroTree [#643](https://github.com/loro-dev/loro/pull/643)
- fix: should be able to call subscription after diffing [#637]
- fix: update long text may fail [#633](https://github.com/loro-dev/loro/pull/633)
- fix: map.keys() may return keys from deleted entries [#618](https://github.com/loro-dev/loro/pull/618)
# FILE: pages/docs/examples.mdx
---
keywords: "crdt, example, get started, excalidraw"
description: "The examples of basic usage in Loro"
---
# Examples
You can find the examples of basic usage in [Loro examples in Deno](https://github.com/loro-dev/loro-examples-deno);
### loro-prosemirror
GitHub: [loro-dev/loro-prosemirror](https://github.com/loro-dev/loro-prosemirror)
It provides seamless integration between Loro and ProseMirror, a powerful rich text editor framework. It includes:
- Document state synchronization with rich text support
- Cursor awareness and synchronization
- Undo/Redo support in collaborative editing
It can also be used with [Tiptap](https://tiptap.dev/), a popular rich text editor built on top of ProseMirror. This means you can easily add collaborative editing capabilities to your Tiptap-based applications.
### loro-codemirror
GitHub: [loro-dev/loro-codemirror](https://github.com/loro-dev/loro-codemirror)
This package provides integration between Loro and CodeMirror 6, a versatile code editor. It supports:
- Document state synchronization
- Cursor awareness synchronization
- Undo/Redo functionality
### loro-inspector
GitHub: [loro-dev/loro-inspector](https://github.com/loro-dev/loro-inspector)
import { ReactPlayer } from "components/video";
# FILE: pages/docs/advanced/inspector.mdx
# Loro Inspector
[Loro Inspector](https://inspector.loro.dev/) is an open-source web tool that helps developers debug and visualize Loro documents. It provides a user-friendly interface to inspect the state and history of Loro documents.
import { ReactPlayer } from "components/video";
# FILE: pages/docs/advanced/doc_state_and_oplog.md
---
keywords: "crdt, oplog, snapshot, doc state, checkout, version"
description: "Introducing Loro's DocState and OpLog concepts"
---
# DocState and OpLog
Although not explicitly exposed in the WASM interface, internally in Loro, we
distinctly differentiate between:
- The current state of the document: DocState
- The edit history of the document: OpLog
During local operations, we update the DocState and record the operations in
OpLog. When merging remote updates, we add the new Ops to OpLog and compute a
Delta. This Delta is applied to DocState and also emitted as an event.
DocState can switch between different versions, similar to Git's checkout. In
this case, we calculate the Delta based on the edit history. The same mechanism
applies: the Delta is emitted as an event and applied to DocState.
Impact on the encoding schema:
- When calling `doc.export({ mode: "update" })` or
`doc.export({ mode: "update-in-range" })`, we only encode the operations that
occurred after the specified version.
- When calling `doc.export({ mode: "snapshot" })` or
`doc.export({ mode: "shallow-snapshot" })`, we encode both OpLog and DocState,
providing rapid loading speed (as it doesn't require recalculating the state
of DocState).
## Attached/Detached LoroDoc Status
As we aim to support version control and the ability to load OpLog without
state, the version of DocState and the latest version recorded in OpLog may not
always match. When they align, it is in an _attached_ state; otherwise, it's in
a _detached_ state.
```ts
const doc = new LoroDoc();
doc.setPeerId(1);
doc.getText("text").insert(0, "Hello");
const doc2 = doc.fork(); // create a fork of the doc
console.log(doc.version().toJSON());
// Map(1) { "1" => 5 }
console.log(doc.oplogVersion().toJSON());
// Map(1) { "1" => 5 }
doc.checkout([{ peer: "1", counter: 1 }]);
console.log(doc.version().toJSON());
// Map(1) { "1" => 2 }
console.log(doc.oplogVersion().toJSON());
// Map(1) { "1" => 5 }
doc2.setPeerId(2);
doc2.getText("text").insert(5, "!");
doc.import(doc2.export({ mode: "update" }));
console.log(doc.version().toJSON());
// Map(1) { "1" => 2 }
console.log(doc.oplogVersion().toJSON());
// Map(2) { "1" => 5, "2" => 1 }
console.log(doc.isDetached()); // true
doc.attach();
console.log(doc.version().toJSON());
// Map(2) { "1" => 5, "2" => 1 }
console.log(doc.oplogVersion().toJSON());
// Map(2) { "1" => 5, "2" => 1 }
```
The doc cannot be edited in the detached mode. Users must use `attach()` to
return to the latest version to continue editing.
### Attached/Detached Container Status
This refers to whether a container is associated with a document. If not, it's a
detached container created by methods like `new LoroText()`. The `.isAttached()`
state never changes for an instance of a container.
When you insert a detached container into an attached one, you get a new
attached container that has the same content as the detached one.
> This is different from the LoroDoc's attached/detached status
# FILE: pages/docs/advanced/event_graph_walker.mdx
---
keywords: "crdt, event graph walker, eg-walker, synchronization, collaboration"
description: "introduction to Event Graph Walker, a crdt algorithm for real-time collaboration and synchronization."
---
# Brief Introduction to Event Graph Walker (Eg-Walker)
Eg-walker is a novel CRDT algorithm introduced in:
> [Collaborative Text Editing with Eg-walker: Better, Faster, Smaller](https://arxiv.org/abs/2409.14252)
> By: Joseph Gentle, Martin Kleppmann
import { ReactPlayer } from "components/video";
Whether dealing with real-time collaboration or multi-end synchronization, a
directed acyclic graph (DAG) forms over the history of these parallel edits,
similar to Git's history. The Eg-walker algorithm records the history of user edits
on the DAG. Unlike conventional CRDTs, Eg-walker can record just the original description
of operations, not the metadata of CRDTs.
For instance, in text editing scenarios, the [RGA algorithm] needs the op ID and
[Lamport timestamp][Lamport] of the character to the left to determine the
insertion point. [Yjs]/Fugue, however, requires the op ID of both the left and
right characters at insertion. In contrast, Eg-walker simplifies this by only
recording the index at the time of insertion. Loro, which uses [Fugue] upon Eg-walker,
inherits these advantages.
An index is not a stable position descriptor, as the index of an operation can
be affected by other operations. For example, if you highlight content from
`index=x` to `index=y`, and concurrently someone inserts n characters at
`index=n` where `n Each insertion or deletion by the user generates an `op`, and multiple consecutive `op`s can merge into a larger `Change`. `Change`s log a `Timestamp`, but each `Change` can only associate with one `Timestamp`. Hence, if the time gap is too wide, merging `Changes` becomes impractical. However, treating each Change as new based on slight timestamp differences (e.g., key presses milliseconds apart) introduces significant additional overhead for each Change. Therefore, users can customize the `change merge interval` according to their needs.
Note that these settings do not persist in exported `Updates` or `Snapshots`. Thus, if custom configurations are required, they must be reapplied upon each initialization of `LoroDoc`. Without timestamp recording enabled, the `Timestamp` defaults to the current maximum known `Timestamp`.
# FILE: pages/docs/advanced/op_and_change.md
# Operations and Change
In Loro, every basic operation such as setting a key-value pair on a Map, adding
a list item, or inserting/deleting a character in text is considered an
individual op. (Don't worry about the cost, in Loro's internal memory
representation and export format, consecutive ops are merged into a larger op,
such as consecutive text insertions and deletions.)
One or more local consecutive `Op`s constitute a `Change`, which includes the
following information:
- ID: ID of the Change is essentially the first op's ID
- Timestamp: An optional timestamp, which can be enabled with
`setRecordTimestamp(true)`. If not enabled, there is no extra storage
overhead.
- Dependency IDs: Used to represent the causal order, the Op IDs that the
current Change directly depends on.
- Commit Message: An optional commit message (WIP not yet released); when not
enabled, there is no extra storage overhead.
Each time `doc.commit()` is called, a new `Change` is generated, which will be
merged with the previous local `Change` as much as possible to reduce the amount
of metadata that needs to be stored.
> Note: Each time you export, a `doc.commit()` is implicitly performed by the
> Loro Doc.
Unlike a Git commit, Loro's Change can be merged; it is neither atomic nor
indivisible. This design allows Loro to better accommodate real-time
collaboration scenarios (where each keystroke would have its own `doc.commit()`,
which would be hugely costly if not merged) and asynchronous collaboration
scenarios (like Git, which combines many modifications to form one).
## When a New Change is Formed
> Note: You may not need to understand the content of this section, and the
> content may change in future versions. Unless you want to understand Loro's
> internal implementation or want to achieve more extreme performance
> optimization.
By default, each commit-generated `Change` will merge with the previous local
`Change`. However, there are exceptions in several cases:
- The current Change depends on a Change from a different peer. This occurs when
local operations build upon recently applied remote operations. For example,
deleting a character sequence that was just inserted by a remote peer. These
causal relationships form a DAG (Directed Acyclic Graph). After importing
remote updates, the next local Change will have new dependency IDs,
necessitating a separate Change.
- When `setRecordTimestamp(true)` is set, if the time interval between
successive Changes exceeds the "change merge interval" (default duration
1000s).
- When the current Change has a different commit message from the previous
Change by the same peer.
## Example
```ts
import { Change, LoroDoc } from "npm:loro-crdt@1.0.0-beta.5";
const docA = new LoroDoc();
docA.setPeerId("0");
const textA = docA.getText("text");
// This create 3 operations
textA.insert(0, "123");
// This create a new Change
docA.commit();
// This create 2 operations
textA.insert(0, "ab");
// This will NOT create a new Change
docA.commit();
{
const changeMap: Map<`${number}`, Change[]> = docA.getAllChanges();
console.log(changeMap);
// Output:
//
// Map(1) {
// "0" => [
// {
// lamport: 0,
// length: 5,
// peer: "0",
// counter: 0,
// deps: [],
// timestamp: 0
// }
// ]
// }
}
// Create docB from doc
const docB = LoroDoc.fromSnapshot(docA.export({ mode: "snapshot" }));
docB.setPeerId("1");
const textB = docB.getText("text");
// This create 2 operations
textB.insert(0, "cd");
// Import the Change from docB to doc
const bytes = docB.export({ mode: "update" }); // Exporting has implicit commit
docA.import(bytes);
// This create 1 operations
textA.insert(0, "1");
// Because doc import a Change from docB, it will create a new Change for
// new commit to record this causal order
docA.commit();
{
const changeMap: Map<`${number}`, Change[]> = docA.getAllChanges();
console.log(changeMap);
// Output:
//
// Map(2) {
// "0" => [
// {
// lamport: 0,
// length: 5,
// peer: "0",
// counter: 0,
// deps: [],
// timestamp: 0
// },
// {
// lamport: 7,
// length: 1,
// peer: "0",
// counter: 5,
// deps: [ { peer: "1", counter: 1 } ],
// timestamp: 0
// }
// ],
// "1" => [
// {
// lamport: 5,
// length: 2,
// peer: "1",
// counter: 0,
// deps: [ { peer: "0", counter: 4 } ],
// timestamp: 0
// }
// ]
// }
}
```
# FILE: pages/docs/advanced/cid.md
# Container ID
A Container ID is a unique identifier that comes in two forms:
- Root Container: Composed of a type and root name
- Normal Container: Created through user operations, composed of an ID and type
**Rust `ContainerID`**
```rust
pub enum ContainerID {
Root {
name: InternalString,
container_type: ContainerType,
},
Normal {
peer: PeerID,
counter: Counter,
container_type: ContainerType,
},
}
```
**TypeScript `ContainerID`**
```typescript
export type ContainerID =
| `cid:root-${string}:${ContainerType}`
| `cid:${number}@${PeerID}:${ContainerType}`;
```
1. **Root Containers**
- Created implicitly when accessing a root container for the first time
(e.g., calling `doc.getText("text")`). No operation is generated in the
history.
- Uniquely identified by a string name and container type
2. **Normal Containers**
- Created explicitly through operations like `insertContainer` or
`createNode`
- Generated automatically when applying operations that create child
containers
- Contains the Operation ID of its creation within its Container ID
## Container Overwrites
When initializing child containers in parallel, overwrites can occur instead of
automatic merging. For example:
```typescript
const doc = new LoroDoc();
const map = doc.getMap("map");
// Parallel initialization of child containers
const docB = doc.fork();
const textA = doc.getMap("map").setContainer("text", new LoroText());
textA.insert(0, "A");
const textB = docB.getMap("map").setContainer("text", new LoroText());
textB.insert(0, "B");
doc.import(docB.export({ mode: "update" }));
// Result: Either { "meta": { "text": "A" } } or { "meta": { "text": "B" } }
```
This behavior poses a significant risk of data loss if the editing history is
not preserved. Even when the complete history is available and allows for data
recovery, the recovery process can be complex.
When a container holds substantial data or serves as the primary storage for
document content, overwriting it can lead to the unintended hiding/loss of
critical information. For this reason, it is essential to implement careful and
systematic container initialization practices to prevent such issues.
### Best Practices
1. When containers might be initialized concurrently, prefer initializing them
at the root level rather than as nested containers
2. When using map containers:
- If possible, initialize all child containers during the map container's
initialization
- Avoid concurrent creation of child containers with the same key in the map
container to prevent overwrites
The overwrite behavior occurs because parallel creation of child containers
results in different container IDs, preventing automatic merging of their
contents.
# FILE: pages/docs/advanced/import_batch.md
# Batch Import
## Performance Differences and Their Causes
When importing multiple updates into a document, using `doc.importBatch(updates)` is significantly faster than importing updates individually. This performance difference stems from how data merging is handled in each approach.
```ts
import { LoroDoc } from "loro-crdt";
const doc = new LoroDoc();
doc.getText("text").update("Hello");
const update1 = doc.export({ mode: "update" });
const version = doc.version();
doc.getText("text").update("Hello World");
const update2 = doc.export({ mode: "update", from: version });
const newDoc1 = new LoroDoc();
newDoc1.importBatch([update1, update2]); // faster
const newDoc2 = new LoroDoc();
for (const update of [update1, update2]) { // slower
newDoc2.import(update);
}
```
### Key Advantages of Import Batch
#### 1. Single Diff Calculation
The most significant advantage is that import batch performs only one diff calculation. In contrast, each individual import follows these steps:
- Merge remote updates into local history
- Calculate document state changes from the current version to the merged version
- Apply the diff to the current document state
This diff calculation has fixed overhead costs that accumulate with each import. But `doc.importBatch(...)` only performs one diff calculation, which is faster than multiple individual diff calculations.
#### 2. Reduced Communication Overhead
Import batch also results in more concise events. Each individual import generates a new event, but `doc.importBatch(...)` generates only a single event that contains all the changes.
# FILE: pages/docs/advanced/version_deep_dive.md
---
keywords: "crdt, version, frontier, DAG, git, history, time travel"
description: "The concept of several versions in Loro, DAG, Frontiers, and Version Vectors"
---
# Loro's Versioning Deep Dive: DAG, Frontiers, and Version Vectors
In centralized environments, we can use linear version numbers to represent a
version, such as incrementing a number each time or using timestamps. However,
CRDTs can be used in decentralized environments, and their version
representation is different.
In Loro, you can express a document's version through a
[Version Vector](https://en.wikipedia.org/wiki/Version_vector) or Frontiers.
```rust
doc.version(); // State Version vector
doc.oplogVersion(); // OpLog Version vector
doc.frontiers(); // State Frontiers
doc.oplogFrontiers(); // OpLog Frontiers
```
In most cases, you might only need the Version Vector, which can be used for
data synchronization and version comparison.
Frontiers are more space-efficient than Version Vectors but come with more
limitations.
The following sections detail these two different ways of version description.
## Background Knowledge
Loro belongs to Operation-Based CRDTs. Two Loro documents are consistent if they
have the same set of activated Operations. Version is a compact way to describe
which ops belong to this set.
Each operation has a unique ID, known as OpId. For example, each user's deletion
or insertion of characters will have a corresponding unique OpId (don't worry
about the overhead here; we've compressed them in memory and Encoding). OpId
consists of PeerId and Counter.
> 💡 Note: To simplify, the specific type descriptions below may not be accurate
> (e.g., the type of peer), but this does not affect the understanding of the
> content.
```tsx
interface OpId {
// Simplified here
// PeerId is actually close to uuid type, Loro uses u64
peerId: number;
counter: number;
}
```
PeerId represents the unique identifier of the device operating the document,
and Counter is a number that starts from 0 and increments on that device.
## Version Vector
A Version Vector is a vector that describes how many Operations starting from 0
need to be included for each Peer.
```tsx
// In TypeScript
type VersionVector = { [peerId in number]: number };
```
For example, for the following version vector A,
```tsx
const A = {
0: 2,
1: 3,
};
```
It includes:
- All operations where PeerId == 0 && Counter < 2
- Or PeerId == 1 && Counter < 3
This expression allows us to easily compare two versions and get the operations
they are missing from each other. For example, in the following case, suppose we
know that the document on the server has reached version B, and the device has
version A. To let the user's device get the Operations it is missing,
```tsx
const A = {
0: 2,
1: 3,
};
const B = {
0: 5,
1: 3,
2: 9,
};
```
We can easily calculate the Operations the device is missing:
- All Ops where PeerId == 0 && 2 ≤ Counter < 5
- Or PeerId == 2 && Counter < 9
Version Vectors help us identify a version and allow us to quickly calculate the
differences between two versions (quickly calculating the set of Ops missing in
two documents to be synchronized). For example, currently in Loro, you can use
the following method to synchronize two documents, where they only import the
Ops missing from each other:
```tsx
// doc.version() returns the version vector of the doc
a.import(b.export({ mode: "update", from: a.version() }));
b.import(a.export({ mode: "update", from: b.version() }));
```
## Directed Acyclic Graph (DAG) History
In Loro, we record an operation history similar to Git's Directed Acyclic Graph
(DAG). We represent DAG by recording Dependencies links on each Op. Like
document states, when the Op set is the same, the DAG is consistent across all
endpoints.
When a new Op is added, its Dependencies link points to the current Operations
that are not being pointed to.
> 💡 Note: The order of Ops is a partial order relationship. An Op may be
> before, after, or parallel to another Op. The structure of the DAG allows us
> to compactly express this partial order.
DAG history information helps us design some special CRDT algorithms and
facilitates time-travel implementation. Moreover, when automatic merges don't
meet expectations, DAG allows users a better chance to manually resolve
potential conflicts.
> 💡 We use Counter@PeerId for a more compact description of OpId.
Below is an example of how a DAG is formed:
## Frontiers
Version Vectors increase in size with the number of Peers. Most CRDTs Lib, to
prevent PeerId conflicts, use a random new PeerId each time a document is
opened, which increases the overhead of Version Vectors.
> 📌 If PeerId repeats, there's a high probability of duplicate OpId,
> potentially leading to inconsistent CRDT documents. Automerge has solved this
> problem, ensuring document consistency even with duplicate OpId, but at the
> cost of higher sync complexity.
Based on DAG information, we have a more compact way to describe versions: given
one or multiple OpIds, include all with a Causal Order less than or equal to
them. We call this method Frontiers.
```tsx
type Frontiers = OpId[];
```
> 💡 We use Counter@PeerId for a more compact description of OpId.
`Frontiers = [3@0]` in the above DAG includes 6 operations:
- PeerId == 0 && Counter < 4
- PeerId == 1 && Counter < 2
It is equivalent to the Version Vector:
```tsx
{
0: 4,
1: 2,
}
```
Frontiers can also specify multiple parallel operations:
In this example, `Frontiers = [1@1, 1@2]`, corresponding Version Vector is:
```tsx
{
0: 1,
1: 2,
2: 2,
}
```
One great property of Frontiers as a version is that `Frontiers = [A]` actually
represents the document version right after operation A was executed. Thus,
combined with Loro's time machine capability, you can easily return to any
document version corresponding to a specific operation. Here is a complete
example:
```tsx
const doc = new LoroDoc();
doc.setPeerId(0n);
const text = doc.getText("text");
text.insert(0, "H");
doc.commit();
const v = doc.frontiers();
text.insert(1, "i");
expect(doc.toJSON()).toStrictEqual({
text: "Hi",
});
doc.checkout([{ peer: 0n, counter: 0 }]);
expect(doc.toJSON()).toStrictEqual({
text: "H",
});
```
You can convert between Version Vectors and Frontiers in Loro if the specified
version is included in the document's history:
```tsx
const vv = doc.vvToFrontiers(f);
const frontiers = doc.frontiersToVV(vv);
```
# FILE: pages/docs/advanced/undo.mdx
---
keywords: "crdt, undo, redo, undo manager, cursor, selection, collaborate"
description: "how to use loro undo manager and show all APIs of loro undo manager."
---
# Undo
We provide an `UndoManager` that helps you manage the undo/redo stack and can be
used during concurrent editing. It also supports cursor position transformation.
In the case of concurrent editing, you will want the undo/redo to be **local**,
meaning it should only undo/redo local operations without affecting other
collaborators' edits.
### Why Local Undo/Redo?
If undo/redo is global, it often does not meet expectations. Consider the
following scenario:
- **User A and User B are collaborating**: They are likely editing different
parts of the document.
- **User A performs an undo**: If this undoes User B's operations, User A might
see no changes and think the undo failed, as User B might be editing content
outside of User A's view.
- **User B's perspective**: User B would find their recent edits deleted without
knowing how it happened.
## Usage
To create an `UndoManager`, you can specify:
- Which local operations are not recorded.
- The merge range for undo operations.
- The stack depth.
```ts no_run
const undoManager = new UndoManager(doc, {
maxUndoSteps: 100, // default 100
mergeInterval: 1000, // default 1000ms
excludeOriginPrefixes: ["sys:"], // default []
onPush: ...,
onPop: ...
}));
```
## Limitations
It can only track a single peer. When the peer ID of the document changes, it will
clear the undo stack and the redo stack and track the new peer ID.
## Restoring Selections
When utilizing undo/redo functionalities, it is important for our application to
restore the selection to its position prior to the operation that is being
undone or redone. This task is particularly challenging in a collaborative
setting where remote operations can alter the cursor's position (for instance,
if the cursor needs to revert to the 5th position, but remote operations have
added new characters before this position).
Challenges
- **Local undo/redo**: Local undo and redo delete and recreate elements. If we
use CRDT-based stable positions, they might lock on to the deleted elements,
while the user's expectation is for the cursor to return to the newly created
elements after redo.
- **Example**:
```
A fox jumped
```
- Select "fox" and delete it.
- Undo.
- After undo, the three characters "fox" should be recreated, and the cursor
should select these three characters. However, if we use stable positions,
it would lock onto the initially deleted characters, and after undo, the
absolute positions obtained would be `start = 2` and `end = 2`.
### Solution
We support storing [`cursors`](/docs/tutorial/cursor) for each undo/redo action
within the `UndoManager`. The `UndoManager` will adjust the stored cursors to
reflect changes from remote edits or other undo/redo operations, ensuring they
match the current state of the document.
They need be handled by the `onPush` and `onPop` callbacks.
On `onPush`, you can return a list of `Cursor`s that you want to store. On
`onPop`, you can retrieve the stored cursors and use them to restore the
selection.
Typically, you may need to store selections in an undo/redo item in the
following cases:
- When a new local change is applied, we need to record a new undo item.
Therefore, we must store the selection **before** the operation to be undone.
- **Purpose**: Storing the selection **before** is crucial because we may lose
the selection after applying the operation. If the user selects text and
deletes it, after undo, the `onPop` can retrieve the state of the selected
deleted content.
- **First undo operation**: Store the current document's selection for the
corresponding redo item.
- **Purpose**: After redo, it can return to the initial selection state.
Internally, we also automatically handle the storage and reset of cursors in the
undo/redo loop state.
```ts
const doc = new LoroDoc();
let cursors: Cursor[] = [];
let poppedCursors: Cursor[] = [];
const undo = new UndoManager(doc, {
mergeInterval: 0,
onPop: (isUndo, value, counterRange) => {
poppedCursors = value.cursors;
},
onPush: () => {
return { value: null, cursors: cursors };
},
});
doc.getText("text").insert(0, "hello world");
doc.commit();
cursors = [
doc.getText("text").getCursor(0)!,
doc.getText("text").getCursor(5)!,
];
// delete "hello ", the cursors should be transformed
doc.getText("text").delete(0, 6);
doc.commit();
expect(poppedCursors.length).toBe(0);
undo.undo();
expect(poppedCursors.length).toBe(2);
expect(doc.toJSON()).toStrictEqual({
text: "hello world",
});
// expect the cursors to be transformed back
expect(doc.getCursorPos(poppedCursors[0]).offset).toBe(0);
expect(doc.getCursorPos(poppedCursors[1]).offset).toBe(5);
```
Implementation
[The implementation of undo/redo](https://github.com/loro-dev/loro/pull/361)
follows a model similar to ProseMirror/Quill, which are based on OT (Operational
Transformation) algorithms (so we also implement basic OT primitives
internally).
When implementing undo/redo operations, we need to ensure the following
properties:
- Do not undo remote inserts.
- Redo after undo should return to the original state.
- If there is no concurrent editing, undo should return to the previous
version's state.
Therefore, we have also added some relevant checks in our internal fuzzing tests
to ensure correctness.
## Demonstration
import { ReactPlayer } from "components/video";
import Caption from "components/caption";
{" "}
ProseMirror with Loro binding
## Understanding the Undo/Redo Stack
The UndoManager maintains two stacks:
1. **Undo Stack**: Contains operations that can be undone
2. **Redo Stack**: Contains operations that were undone and can be redone
### How the Callbacks Work
The `onPush` and `onPop` callbacks are triggered when these stacks change:
- **onPush(isUndo, range, event)**: Called when a new item is pushed to either stack
- `isUndo: boolean`: `true` for the undo stack, `false` for the redo stack
- `range: (number, number)`: The operations' counter range that associated with the undo/redo action
- Returns: An object that can include `value` (any data you want to store) and `cursors` (cursor positions)
- **onPop(isUndo, value)**: Called when an item is popped from either stack
- `isUndo`: `true` for the undo stack, `false` for the redo stack
- `value`: The value you returned from `onPush` when this item was created
### Understanding Action Merging
The `mergeInterval` option in the UndoManager controls how closely spaced operations are grouped:
```ts no_run
const undoManager = new UndoManager(doc, {
mergeInterval: 1000, // 1000ms = 1 second (default)
});
```
**How mergeInterval works:**
- Operations occurring within the specified time interval (in milliseconds) will be merged into a single undo action
- Even though these operations are merged, `onPush` events will still be triggered for each individual operation
- When undoing, all merged operations will be undone as a single unit
- A lower value results in more granular undo steps; a higher value creates fewer, more comprehensive undo steps
- Set to `0` to disable merging entirely (every operation becomes a separate undo step)
### Stack Operations Flow
1. When a local transaction is committed, a new undo item is pushed to the undo stack (triggers `onPush` with `isUndo=true`)
2. When `.undo()` is called:
- An item is popped from the undo stack (triggers `onPop` with `isUndo=true`)
- A corresponding item is pushed to the redo stack (triggers `onPush` with `isUndo=false`)
3. When `.redo()` is called:
- An item is popped from the redo stack (triggers `onPop` with `isUndo=false`)
- A corresponding item is pushed to the undo stack (triggers `onPush` with `isUndo=true`)
### Example: Text Editing with Undo/Redo
Consider a simple text editor that uses Loro for collaboration. Let's walk through what happens during typical editing operations:
```ts
// Create document and undo manager
const doc = new LoroDoc();
const textField = doc.getText("textField");
// Set up undo manager with callbacks to track changes
const undoManager = new UndoManager(doc, {
// Store cursor positions and any other state you need
onPush: (isUndo, range) => {
if (isUndo) {
console.log("Action recorded for undo");
} else {
console.log("Action recorded for redo");
}
// Return whatever data you want associated with this action
return {
value: { affectedRange: range },
cursors: [/* your cursor positions */]
};
},
onPop: (isUndo, storedData) => {
// Access the data you stored during onPush
const { value, cursors } = storedData;
if (isUndo) {
console.log("Retrieving data for undo");
} else {
console.log("Retrieving data for redo");
}
// Use the stored cursors to restore selection
// applyStoredCursors(cursors);
},
mergeInterval: 0,
});
// User types "Hello"
textField.insert(0, "Hello");
doc.commit();
// → onPush triggered (isUndo=true) - Adds to undo stack
// User types " World"
textField.insert(5, " World");
doc.commit();
// → onPush triggered (isUndo=true) - Adds to undo stack
// User clicks Undo button
undoManager.undo();
// → onPop triggered (isUndo=true) - Removes " World" from document
// → onPush triggered (isUndo=false) - Adds to redo stack
// Document now contains only "Hello"
// User clicks Redo button
undoManager.redo();
// → onPop triggered (isUndo=false) - Retrieves " World" operation
// → onPush triggered (isUndo=true) - Adds back to undo stack
// Document now contains "Hello World" again
```
When the user clicks Undo, two things happen:
1. The last action is popped from the undo stack (removing " World")
2. That action is pushed to the redo stack so it can be redone later
This approach ensures that local changes can be undone without affecting other users' edits, making it ideal for collaborative editing.
### Cursor Efficiency
The built-in cursor solution is optimized for performance and handles collaborative scenarios efficiently, including situations where peers may
change the document concurrently during undo/redo operations. For complex editors like rich text editors, the cursor implementation provides the
best balance of performance and correctness.
# FILE: pages/docs/tutorial/text.md
---
keywords: "text crdt, richtext, richtext editor"
description: "how to use loro richtext crdt and show all APIs of loro text crdt."
---
# Text
Loro supports both plain text and rich text. When rich text features (like mark
and unmark) are not used, the text container operates as plain text without any
rich text overhead, making it efficient for simple text operations.
LoroText offers excellent performance, particularly when handling large strings.
It significantly outperforms native JavaScript string operations due to its
internal B-tree structure. All basic operations like insert and delete have
O(log N) time complexity, making it highly efficient even when working with
documents containing several million characters.
> To learn how rich text CRDT in Loro works under the hood, please refer to our
> blog: [Introduction to Loro's Rich Text CRDT](/blog/loro-richtext).
## Editor Bindings
Loro provides official bindings for popular editors to make it easier to integrate Loro's CRDT capabilities:
### ProseMirror Binding
The [loro-prosemirror](https://github.com/loro-dev/loro-prosemirror) package provides seamless integration between Loro and ProseMirror, a powerful rich text editor framework. It includes:
- Document state synchronization with rich text support
- Cursor awareness and synchronization
- Undo/Redo support in collaborative editing
The ProseMirror binding can also be used with [Tiptap](https://tiptap.dev/), a popular rich text editor built on top of ProseMirror. This means you can easily add collaborative editing capabilities to your Tiptap-based applications.
```ts
import {
CursorAwareness,
LoroCursorPlugin,
LoroSyncPlugin,
LoroUndoPlugin,
undo,
redo,
} from "loro-prosemirror";
import { LoroDoc } from "loro-crdt";
import { EditorView } from "prosemirror-view";
import { EditorState } from "prosemirror-state";
const doc = new LoroDoc();
const awareness = new CursorAwareness(doc.peerIdStr);
const plugins = [
...pmPlugins,
LoroSyncPlugin({ doc }),
LoroUndoPlugin({ doc }),
keymap({
"Mod-z": undo,
"Mod-y": redo,
"Mod-Shift-z": redo,
}),
LoroCursorPlugin(awareness, {}),
];
const editor = new EditorView(editorDom, {
state: EditorState.create({ doc, plugins }),
});
```
### CodeMirror Binding
The [loro-codemirror](https://github.com/loro-dev/loro-codemirror) package provides integration between Loro and CodeMirror 6, a versatile code editor. It supports:
- Document state synchronization
- Cursor awareness
- Undo/Redo functionality
```ts
import { EditorState } from "@codemirror/state";
import { EditorView } from "@codemirror/view";
import { LoroExtensions } from "loro-codemirror";
import { Awareness, LoroDoc, UndoManager } from "loro-crdt";
const doc = new LoroDoc();
const awareness = new Awareness(doc.peerIdStr);
const undoManager = new UndoManager(doc, {});
new EditorView({
state: EditorState.create({
extensions: [
// ... other extensions
LoroExtensions(
doc,
{
awareness: awareness,
user: { name: "Bob", colorClassName: "user1" },
},
undoManager,
),
],
}),
parent: document.querySelector("#editor")!,
});
```
## LoroText vs String
It's important to understand that LoroText is very different from using a regular string type. So the following code has different merge results:
Using `LoroText`:
```ts
const doc = new LoroDoc();
doc.setPeerId("0");
doc.getText("text").insert(0, "Hello");
const doc2 = new LoroDoc();
doc2.setPeerId("1");
doc2.getText("text").insert(0, "World");
doc.import(doc2.export({ mode: "update" }));
console.log(doc.getText("text").toString()); // "HelloWorld"
```
Using `String`:
```ts
const doc = new LoroDoc();
doc.setPeerId("0");
doc.getMap("map").set("text", "Hello");
const doc2 = new LoroDoc();
doc2.setPeerId("1");
doc2.getMap("map").set("text", "World");
doc.import(doc2.export({ mode: "update" }));
console.log(doc.getMap("map").get("text")); // "World"
```
### Merge Semantics
Unlike LoroMap which uses Last-Write-Wins (LWW) semantics, LoroText is designed to preserve edits. Here's how they differ:
When user A and user B make concurrent edits to the same text:
- LoroText will merge both users' edits in sequence, preserving both changes
- LoroMap will use LWW semantics, keeping only one user's changes
### When to Use String in LoroMap
There are specific scenarios where using a string in LoroMap (with LWW semantics) might be more appropriate than using LoroText:
- **URLs**: When dealing with hyperlinks, automatic merging could result in invalid URLs. In this case, it's better to use LoroMap's LWW semantics to ensure the URL remains valid.
- **Hash String**: When handling hash string, LWW semantics are more appropriate to maintain data accuracy and consistency.
## Rich Text Config
To use rich text in Loro, you need to specify the expanding behaviors for each
format first. When we insert new text at the format boundaries, they define
whether the inserted text should inherit the format.
There are four kinds of expansion behaviors:
- `after`(default): when inserting text right after the given range, the mark
will be expanded to include the inserted text
- `before`: when inserting text right before the given range, the mark will be
expanded to include the inserted text
- `none`: the mark will not be expanded to include the inserted text at the
boundaries
- `both`: when inserting text either right before or right after the given
range, the mark will be expanded to include the inserted text
### Example
```ts
const doc = new LoroDoc();
doc.configTextStyle({
bold: { expand: "after" },
link: { expand: "before" },
});
const text = doc.getText("text");
text.insert(0, "Hello World!");
text.mark({ start: 0, end: 5 }, "bold", true);
expect(text.toDelta()).toStrictEqual([
{
insert: "Hello",
attributes: {
bold: true,
},
},
{
insert: " World!",
},
] as Delta[]);
// " Test" will inherit the bold style because `bold` is configured to expand forward
text.insert(5, " Test");
expect(text.toDelta()).toStrictEqual([
{
insert: "Hello Test",
attributes: {
bold: true,
},
},
{
insert: " World!",
},
] as Delta[]);
```
## Methods
### `insert(pos: number, s: string)`
Insert text at the given pos.
### `delete(pos: number, len: number)`
Delete text at the given range.
### `slice(start: number, end: number): string`
Get a string slice.
### `toString(): string`
Get the plain text value.
### `charAt(pos: number): char`
Get the character at the given position.
### `splice(pos: number, len: number, text: string): string`
Delete and return the string at the given range and insert a string at the same
position.
### `length(): number`
Get the length of text
### `getCursor(pos: number, side: Side): Cursor | undefined`
Get the cursor at the given position.
### `toDelta(): Delta[]`
Get the rich text value. It's in
[Quill's Delta format](https://quilljs.com/docs/delta/).
### `mark(range: {start: number, end: number}, key: string, value: any): void`
Mark the given range with a key-value pair.
### `unmark(range: {start: number, end: number}, key: string): void`
Remove key-value pairs in the given range with the given key.
### `update(text: string)`
Update the current text based on the provided text.
### `applyDelta(delta: Delta[]): void`
Change the state of this text by delta.
If a delta item is `insert`, it should include all the attributes of the
inserted text. Loro's rich text CRDT may make the inserted text inherit some
styles when you use the `insert` method directly. However, when you use
`applyDelta` if some attributes are inherited from CRDT but not included in the
delta, they will be removed.
Another special property of `applyDelta` is if you format an attribute for
ranges out of the text length, Loro will insert new lines to fill the gap first.
It's useful when you build the binding between Loro and rich text editors like
Quill, which might assume there is always a newline at the end of the text
implicitly.
```ts
const doc = new LoroDoc();
const text = doc.getText("text");
doc.configTextStyle({ bold: { expand: "after" } });
text.insert(0, "Hello World!");
text.mark({ start: 0, end: 5 }, "bold", true);
const delta = text.toDelta();
const text2 = doc.getText("text2");
text2.applyDelta(delta);
expect(text2.toDelta()).toStrictEqual(delta);
```
### `subscribe(f: (event: Listener)): number`
This method returns a number that can be used to remove the subscription.
The text event is in `Delta[]` format. It can be used to bind the rich
text editor. It has the same type as the arg of `applyDelta`, so the following
example works:
```ts
(async () => {
const doc1 = new LoroDoc();
doc1.configTextStyle({
link: { expand: "none" },
bold: { expand: "after" },
});
const text1 = doc1.getText("text");
const doc2 = new LoroDoc();
doc2.configTextStyle({
link: { expand: "none" },
bold: { expand: "after" },
});
const text2 = doc2.getText("text");
text1.subscribe((e) => {
for (const event of e.events) {
const d = event.diff as TextDiff;
text2.applyDelta(d.diff);
}
});
text1.insert(0, "foo");
text1.mark({ start: 0, end: 3 }, "link", true);
doc1.commit();
await new Promise((r) => setTimeout(r, 1));
expect(text2.toDelta()).toStrictEqual(text1.toDelta());
text1.insert(3, "baz");
doc1.commit();
await new Promise((r) => setTimeout(r, 1));
expect(text2.toDelta()).toStrictEqual([
{ insert: "foo", attributes: { link: true } },
{ insert: "baz" },
]);
expect(text2.toDelta()).toStrictEqual(text1.toDelta());
text1.mark({ start: 2, end: 5 }, "bold", true);
doc1.commit();
await new Promise((r) => setTimeout(r, 1));
expect(text2.toDelta()).toStrictEqual(text1.toDelta());
})();
```
# FILE: pages/docs/tutorial/tips.md
# Tips and Tricks
##### `LoroDoc` will be initialized with a new random PeerID each time
What if I need to set the initial state?
If your document requires an initial state, you should not edit the document to achieve this state right
after creating it with new LoroDoc(). This approach can cause problems - each time someone opens the document,
new operations with different PeerIDs would be added just to set up the initial state.
The better approach is to initialize your document by loading the same Snapshot. This ensures all users start
from an identical baseline without generating unnecessary operations.
---
##### Be careful when using `doc.setPeerId(newId)`
When using `setPeerId`, you must avoid having two parallel peers use the same PeerId. This can cause serious consistency problems in your application.
Why
It's because Loro determines whether an operation has already been included by checking its operation ID. Since operation IDs are composed of `PeerId + Counter`, duplicate PeerIds can easily lead to duplicate operation IDs. During synchronization, Loro might incorrectly assume certain operations have already been processed, resulting in document inconsistency across peers.
How to reuse PeerIds safely
Be careful when reusing PeerIds (this optimization is often unnecessary). You should not assign a fixed PeerId to a user, as one user might use multiple devices. Similarly, you shouldn't assign a fixed PeerId to a device, because even on a single browser, multiple tabs might open the same document simultaneously.
If you must reuse PeerIds, you need to carefully manage your local PeerId cache with proper locking mechanisms. This would allow only one tab to "take" a specific PeerId, while other tabs use random IDs. The PeerId should be returned to the cache when no longer in use.
---
##### Root containers don't need operations to be initialized
Root Containers are created implicitly in Loro. This means that when you call `doc.getText("text")`, no new operations appear in the LoroDoc history, and there are no operations that need to be synchronized with other peers.
This behavior contrasts with non-root containers. For example, when you execute `doc.getMap("meta").setContainer("text", new LoroText())`, it generates an operation to insert the LoroText container into the map.
---
##### When initializing child containers of LoroMap in parallel, overwrites can occur instead of automatic merging.
Why this happens
This happens because parallel creation of child containers results in different container IDs, preventing automatic merging of their contents. When a container holds substantial data or serves as the primary storage for document content, overwriting it can lead to unintended hiding or loss of critical information.
```typescript
const doc = new LoroDoc();
const map = doc.getMap("map");
// Parallel initialization of child containers
const docB = doc.fork();
const textA = doc.getMap("map").setContainer("text", new LoroText());
textA.insert(0, "A");
const textB = docB.getMap("map").setContainer("text", new LoroText());
textB.insert(0, "B");
doc.import(docB.export({ mode: "update" }));
// Result: Either { "meta": { "text": "A" } } or { "meta": { "text": "B" } }
```
Best practices for container initialization
1. When using map containers:
- If possible, initialize all child containers during the map container's initialization
- Avoid concurrent creation of child containers with the same key in the map container to prevent overwrites
2. If it's impossible to initialize all child containers when the map container is initialized, prefer initializing them at the root level rather than as nested containers.
- You can use `doc.getMap("user." + userId)` instead of `doc.getMap("user").getOrCreateContainer(userId, new LoroMap())` to avoid this problem.
---
##### Use redaction to safely share document history
There are times when users might accidentally paste sensitive information (like API keys, passwords, or personal data) into a collaborative document. When this happens, you need a way to remove just that sensitive content from the document history without compromising the rest of the document's integrity.
How to safely redact sensitive content
Loro provides a `redactJsonUpdates` function that allows you to selectively redact operations within specific version ranges.
For example, if a user accidentally pastes a password or API key into a document:
```typescript
const doc = new LoroDoc();
doc.setPeerId("1");
// Create some content to be redacted
const text = doc.getText("text");
text.insert(0, "Sensitive information");
doc.commit();
const map = doc.getMap("map");
map.set("password", "secret123");
map.set("public", "public information");
doc.commit();
// Export JSON updates
const jsonUpdates = doc.exportJsonUpdates();
// Define version range to redact (redact the text content)
const versionRange = {
"1": [0, 21] // Redact the "Sensitive information"
};
// Apply redaction
const redactedJson = redactJsonUpdates(jsonUpdates, versionRange);
// Create a new document with redacted content
const redactedDoc = new LoroDoc();
redactedDoc.importJsonUpdates(redactedJson);
// The text content is now redacted with replacement characters
console.log(redactedDoc.getText("text").toString());
// Outputs: "���������������������"
// You can also redact specific map entries
const versionRange2 = {
"1": [21, 22] // Redact the "secret123" password
};
const redactedJson2 = redactJsonUpdates(jsonUpdates, versionRange2);
const redactedDoc2 = new LoroDoc();
redactedDoc2.importJsonUpdates(redactedJson2);
console.log(redactedDoc2.getMap("map").get("password")); // null
console.log(redactedDoc2.getMap("map").get("public")); // "public information"
```
This approach is safer than manually editing document content because:
1. It maintains document structure and CRDT consistency
2. It keeps key metadata like operation IDs and dependencies intact
3. It allows concurrent editing to continue working after redaction
4. It selectively redacts only specific operations, not the entire document
The redaction process follows these rules:
- Preserves delete, tree move, and list move operations
- Replaces text insertion content with Unicode replacement characters '�'
- Substitutes list and map insert values with null
- Maintains structure of child containers
- Replaces text mark values with null
- Preserves map keys and text annotation keys
**Important**: Your application needs to ensure that all peers receive the redacted version, otherwise the original document with sensitive information will still exist on other peers.
---
##### Use shallow snapshots to completely remove old history
When you need to completely remove ALL history older than a certain version point, shallow snapshots provide the solution.
How to remove old history with shallow snapshots
Shallow snapshots create a new document that preserves the current state but completely eliminates all history before a specified point, similar to Git's shallow clone functionality.
```typescript
const doc = new LoroDoc();
doc.setPeerId("1");
// Old history - will be completely removed
const text = doc.getText("text");
text.insert(0, "This document has a long history with many edits");
doc.commit();
text.insert(0, "Including some potentially sensitive information. ");
doc.commit();
// More recent history - will be preserved
text.delete(11, 55); // Remove the middle part
text.insert(11, "with sanitized history");
doc.commit();
// Create a sanitized version that removes ALL history before current point
const sanitizedSnapshot = doc.export({
mode: "shallow-snapshot",
frontiers: doc.oplogFrontiers()
});
// Create a new document from the sanitized snapshot
const sanitizedDoc = new LoroDoc();
sanitizedDoc.import(sanitizedSnapshot);
// The document has the final state
console.log(sanitizedDoc.getText("text").toString());
// Outputs: "Including with sanitized history"
// But ALL history before the snapshot point is completely removed
console.log(sanitizedDoc.isShallow()); // true
console.log(sanitizedDoc.shallowSinceFrontiers()); // Shows the starting point
```
This approach is useful for:
1. Completely removing all old history that might contain various sensitive information
2. Significantly reducing document size by eliminating unnecessary history
3. Creating clean document instances after certain milestones
4. Ensuring old operations cannot be recovered or examined
Compared to redaction:
- Shallow snapshots completely remove all operations before a version point
- Redaction selectively replaces just specific content with placeholders
**Important**: While both methods maintain future synchronization consistency, your application must distribute the sanitized document to all peers. Otherwise, the original document with sensitive information will still exist on other clients.
**When to use each approach**:
- Use **redaction** when you need to sanitize specific operations (like an accidental password paste) while preserving older history
- Use **shallow snapshots** when you want to completely eliminate all history before a certain point
---
##### You can store mappings between LoroDoc's peerIds and user IDs in the document itself
Use `doc.subscribeFirstCommitFromPeer(listener)` to associate peer information with user identities when a peer first interacts with the document.
How to track peer-to-user mappings
This functionality is essential for building user-centric features in collaborative applications. You often need bidirectional mapping between user IDs and peer IDs:
- **Finding all edits by a user**: When you need to retrieve all document edits made by a specific user ID, you must first find all peer IDs associated with that user
- **Showing edit attribution**: When displaying which user edited a piece of text, you need to map from the peer ID (stored in the operation) back to the user ID for display
This hook provides an ideal point to associate peer information (such as author identity) with the document. The listener is triggered on the first commit from each peer, allowing you to store user metadata within the document itself.
```typescript
const doc = new LoroDoc();
doc.setPeerId(0);
doc.subscribeFirstCommitFromPeer((e) => {
doc.getMap("users").set(e.peer, "user-" + e.peer);
});
doc.getList("list").insert(0, 100);
doc.commit();
expect(doc.getMap("users").get("0")).toBe("user-0");
```
This approach allows you to:
1. Automatically track which peers have contributed to the document
2. Store user metadata (names, emails, etc.) alongside the document
3. Build features like author attribution, presence indicators, or edit history
The mapping is stored within the document, so it automatically synchronizes across all peers and persists with the document's state.
---
##### You can use https://loro.dev/llms-full.txt to prompt your AI
When working with AI assistants or language models on Loro-related tasks, you can use these URLs to provide comprehensive context about Loro's capabilities and API:
- `https://loro.dev/llms-full.txt` - All the documentation in one file
- `https://loro.dev/llms.txt` - An overview of Loro website
# FILE: pages/docs/tutorial/map.md
---
keywords: "map crdt, last write win, key value, conflict"
description: "how to use loro map crdt and show all APIs of loro map crdt."
---
# Map
Loro's Map uses LWW (Last-Write-Wins) semantics. When concurrent edits conflict, it compares Lamport logic timestamps to determine the winner.
Here is how to use it:
```ts
const docA = new LoroDoc();
docA.setPeerId("0");
const docB = new LoroDoc();
docB.setPeerId("1");
const mapA = docA.getMap("map");
const mapB = docB.getMap("map");
mapA.set("a", 1);
const textB = mapB.setContainer("a", new LoroText());
textB.insert(0, "Hi");
console.log(docA.toJSON()); // OUTPUT: { map: { a: 1 } }
console.log(docB.toJSON()); // OUTPUT: { map: { a: "Hi" } }
docA.import(docB.export({ mode: "snapshot" }));
docB.import(docA.export({ mode: "snapshot" }));
// docB wins because it has the larger peerId, thus the larger logical timestamp
console.log(docA.toJSON()); // OUTPUT: { map: { a: "Hi" } }
console.log(docB.toJSON()); // OUTPUT: { map: { a: "Hi" } }
```
> **Note**: When calling `map.set(key, value)` on a LoroMap, if `map.get(key)` already returns `value`, the operation will be a no-op (no operation recorded).
# FILE: pages/docs/tutorial/counter.md
---
keywords: "counter crdt"
description: "how to use loro counter crdt and show all APIs of loro counter crdt."
---
# Counter
Loro's Counter will add up all the applied values, and supports integers and floating point numbers.
Here is how to use it:
```ts
const doc = new LoroDoc();
const counter = doc.getCounter("counter");
counter.increment(1);
counter.increment(2);
counter.decrement(1);
expect(counter.value).toBe(2);
```
# FILE: pages/docs/tutorial/cursor.md
---
keywords: "cursor, crdts, multi-player, awareness, position, loro"
description: "How to use Loro to implement cursor position in real-time collaboration"
---
# Cursor
Cursor is an independently storable entity, meaning it can store content separately from the Loro document. It is used to stably represent positions within structures such as Text, List, or MovableList. Cursors can be utilized to represent collaborative cursor positions, highlight ranges, or comment ranges.
## Motivation
Using "index" to denote cursor positions can be unstable, as positions may shift with document edits. To reliably represent a position or range within a document, it is more effective to leverage the unique ID of each item/character in a List CRDT or Text CRDT.
## Updating Cursors
Loro optimizes State metadata by not storing the IDs of deleted elements. This approach, while efficient, complicates tracking cursor positions since they rely on these IDs for precise locations within the document. The solution recalculates position by replaying relevant history to update stable positions accurately. To minimize the performance impact of history replay, the system updates cursor info to reference only the IDs of currently present elements, thereby reducing the need for replay.
Each position has a "Side" information, indicating the actual cursor position is on the left, right, or directly in the center of the target ID.
Note: In JavaScript, the offset returned when querying a Stable Position is based on the UTF-16 index.
## Example
```ts
const loro = new LoroDoc();
const list = loro.getList("list");
list.insert(0, "a");
const pos0 = list.getCursor(0);
list.insert(1, "b");
{
const ans = loro.getCursorPos(pos0!);
expect(ans.offset).toEqual(0);
expect(ans.side).toEqual(0);
expect(ans.update).toBeUndefined();
}
list.insert(0, "c");
{
const ans = loro.getCursorPos(pos0!);
expect(ans.offset).toEqual(1);
expect(ans.side).toEqual(0);
expect(ans.update).toBeUndefined();
}
list.delete(1, 1);
{
const ans = loro.getCursorPos(pos0!);
expect(ans.offset).toEqual(1);
expect(ans.side).toEqual(-1);
expect(ans.update).toBeDefined();
}
```
# FILE: pages/docs/tutorial/composition.md
---
keywords: "crdts, json, data model, document state, semantics"
description: "Everyone can effectively model the states and the updates of documents that conform to the JSON schema."
---
# Composing CRDTs
In Loro, you can build complex data structures using basic CRDTs such as List, MovableList, Map and Tree. These containers can include sub-containers, which in turn can contain more sub-containers, allowing for the composition of intricate data structures.
It's important to note that documents in Loro must adhere to a tree structure. This means that while a parent can have multiple children, each child is restricted to only one parent. Therefore, the document forms a tree rather than a graph (like a DAG).
By leveraging these fundamental CRDTs, you can effectively model the states and the updates of documents that conform to the JSON schema.
```ts
const doc = new LoroDoc();
const map = doc.getMap("map");
let callTimes = 0;
// Events from a child are propagated to all ancestor nodes.
map.subscribe((event) => {
console.log(event);
callTimes++;
});
// Create a sub container for map
// { map: { list: [] } }
const list = map.setContainer("list", new LoroList());
list.push(0);
list.push(1);
// Create a sub container for list
// { map: { list: [0, 1, LoroText] } }
const text = list.insertContainer(2, new LoroText());
expect(doc.toJSON()).toStrictEqual({ map: { list: [0, 1, ""] } });
{
// Commit will trigger the event, because list is a sub container of map
doc.commit();
await new Promise((resolve) => setTimeout(resolve, 1));
expect(callTimes).toBe(1);
}
text.insert(0, "Hello, ");
text.insert(7, "World!");
expect(doc.toJSON()).toStrictEqual({ map: { list: [0, 1, "Hello, World!"] } });
{
// Commit will trigger the event, because text is a descendant of map
doc.commit();
await new Promise((resolve) => setTimeout(resolve, 1));
expect(callTimes).toBe(2);
}
```
# FILE: pages/docs/tutorial/list.md
---
keywords: "list crdt, movable list, move element, cursor, awareness"
description: "how to use loro list and movable list crdt and show all APIs of loro list and movable crdt."
---
# List and Movable List
Loro supports two types of lists: `List` and `MovableList`. The `List` is a
standard list that supports Insert and Delete operations. In contrast, the
`MovableList` supports additional Set and Move operations.
Using a combination of insert and delete operations, one can simulate set and
move operations on a `List`. However, this approach fails in concurrent editing
scenarios. For example, if the same element is set or moved concurrently, the
simulation would result in the deletion of the original element and the
insertion of two new elements, which does not meet expectations.
The `MovableList` addresses these issues by ensuring that set and move
operations do not lead to such problems, though it incurs additional overheads.
Specifically, when performing only insertions/deletions, the `MovableList` is
approximately 80% slower in encode/decode and consumes about 50% more memory
compared to the `List`.
Both `List` and `MovableList` utilize the
[_Fugue_](https://arxiv.org/abs/2305.00583) to achieve _maximal
non-interleaving_. Additionally, `MovableList` uses the algorithm from
[_Moving Elements in List CRDTs_](https://martin.kleppmann.com/2020/04/27/papoc-list-move.html)
to implement the move operation.
## Basic Usage
### List
```ts
const docA = new LoroDoc();
docA.setPeerId("1");
const listA = docA.getList("list");
listA.push(0);
listA.push(1);
listA.push(2);
const bytes: Uint8Array = docA.export({ mode: "snapshot" });
const docB = Loro.fromSnapshot(bytes);
docB.setPeerId("2");
const listB = docB.getList("list");
{
// Concurrently docA and docB update element at index 2
// docA updates it to 8
// docB updates it to 9
// docA.toJSON() should return { list: [0, 1, 8] }
// docB.toJSON() should return { list: [0, 1, 9] }
listB.delete(2, 1);
listB.insert(2, 9);
expect(docB.toJSON()).toStrictEqual({ list: [0, 1, 9] });
listA.delete(2, 1);
listA.insert(2, 8);
expect(docA.toJSON()).toStrictEqual({ list: [0, 1, 8] });
}
{
// Merge docA and docB
docA.import(docB.export({ mode: "update", from: docA.version() }));
docB.import(docA.export({ mode: "update", from: docB.version() }));
}
expect(docA.toJSON()).toStrictEqual({ list: [0, 1, 8, 9] });
expect(docB.toJSON()).toStrictEqual({ list: [0, 1, 8, 9] });
```
### MovableList
```ts
const docA = new LoroDoc();
docA.setPeerId("1");
const listA = docA.getMovableList("list");
listA.push(0);
listA.push(1);
listA.push(2);
const bytes: Uint8Array = docA.export({ mode: "snapshot" });
const docB = Loro.fromSnapshot(bytes);
docB.setPeerId("2");
const listB = docB.getMovableList("list");
{
// Concurrently docA and docB update element at index 2
// docA updates it to 8
// docB updates it to 9
// docA.toJSON() should return { list: [0, 1, 8] }
// docB.toJSON() should return { list: [0, 1, 9] }
listA.set(2, 8);
expect(docA.toJSON()).toStrictEqual({ list: [0, 1, 8] });
listB.set(2, 9);
expect(docB.toJSON()).toStrictEqual({ list: [0, 1, 9] });
}
{
// Merge docA and docB
docA.import(docB.export({ mode: "update", from: docA.version() }));
docB.import(docA.export({ mode: "update", from: docB.version() }));
}
// Converge to [0, 1, 9] because docB has larger peerId thus larger logical time
expect(docA.toJSON()).toStrictEqual({ list: [0, 1, 9] });
expect(docB.toJSON()).toStrictEqual({ list: [0, 1, 9] });
{
// Concurrently docA and docB move element at index 0
// docA moves it to 2
// docB moves it to 1
// docA.toJSON() should return { list: [1, 9, 0] }
// docB.toJSON() should return { list: [1, 0, 9] }
listA.move(0, 2);
listB.move(0, 1);
expect(docA.toJSON()).toStrictEqual({ list: [1, 9, 0] });
expect(docB.toJSON()).toStrictEqual({ list: [1, 0, 9] });
}
{
// Merge docA and docB
docA.import(docB.export({ mode: "update", from: docA.version() }));
docB.import(docA.export({ mode: "update", from: docB.version() }));
}
// Converge to [1, 0, 9] because docB has larger peerId thus larger logical time
expect(docA.toJSON()).toStrictEqual({ list: [1, 0, 9] });
expect(docB.toJSON()).toStrictEqual({ list: [1, 0, 9] });
```
## Using Cursor on List
The Cursor on a List changes with the list's modifications. If new elements are
inserted in front of it, it moves to the right. If elements in front are
deleted, it moves to the left. If elements are inserted or deleted behind it, it
remains stationary.
If you use a List to represent paragraphs in an article, you can use a Cursor to
stably represent the selection range on the paragraph.
```ts
import {
Cursor,
LoroDoc,
LoroList,
LoroMovableList,
LoroText,
} from "loro-crdt";
const doc = new LoroDoc();
doc.setPeerId("1");
const list = doc.getList("list");
list.push("Hello");
list.push("World");
const cursor = list.getCursor(1)!;
console.log(cursor.pos()); // OUTPUT: { peer: "1", counter: 1 }
const encodedCursor: Uint8Array = cursor.encode();
const exported: Uint8Array = doc.export({ mode: "snapshot" });
// Sending the exported snapshot and the encoded cursor to peer 2
// Peer 2 will decode the cursor and get the position of the cursor in the list
// Peer 2 will then insert "Hello" at the beginning of the list
const docB = new LoroDoc();
docB.setPeerId("2");
const listB = docB.getList("list");
docB.import(exported);
listB.insert(0, "Foo");
console.log(docB.toJSON()); // OUTPUT: { list: ["Foo", "Hello", "World"] }
const cursorB = Cursor.decode(encodedCursor);
{
// The cursor position is shifted to the right by 1
const pos = docB.getCursorPos(cursorB);
console.log(pos.offset); // OUTPUT: 2
}
listB.insert(1, "Bar");
console.log(docB.toJSON()); // OUTPUT: { list: ["Foo", "Bar", "Hello", "World"] }
{
// The cursor position is shifted to the right by 1
const pos = docB.getCursorPos(cursorB);
console.log(pos.offset); // OUTPUT: 3
}
listB.delete(3, 1);
console.log(docB.toJSON()); // OUTPUT: { list: ["Foo", "Bar", "Hello"] }
{
// The position the cursor points to is now deleted,
// but it should still get the position
const pos = docB.getCursorPos(cursorB);
console.log(pos.offset); // OUTPUT: 3
// It will also offer an update on the cursor position.
//
// Because the old cursor position is deleted, `doc.getCursorPos()` will slow down over time.
// Internally, it needs to traverse the related history to find the correct position for a deleted
// cursor position.
//
// After refreshing the cursor, the performance of `doc.getCursorPos()` will improve.
console.log(pos.update); // OUTPUT: { peer: "2", counter: 1 }
const newCursor: Cursor = pos.update!;
// The new cursor position is undefined because the cursor is at the end of the list
console.log(newCursor.pos()); // OUTPUT: undefined
// The side is 1 because the cursor is at the right end of the list
console.log(newCursor.side()); // OUTPUT: 1
const newPos = docB.getCursorPos(newCursor);
// The offset doesn't change
console.log(newPos.offset); // OUTPUT: 3
// The update is undefined because the cursor no longer needs to be updated
console.log(newPos.update); // OUTPUT: undefined
}
```
# FILE: pages/docs/tutorial/encoding.md
---
keywords: "crdts, schema, encoding, persist, snapshot, gc"
description: "Introduce how to encode and decode Loro documents, and how to persist data"
---
# Export Mode
> Loro 1.0 has stabilized the data format and will not have any breaking
> changes.
Loro introduces three encoding modes to meet the needs for different use cases:
- **Updates Encoding**: Encodes all or a specified range of operations, mainly
used for delta updates of documents.
- **Snapshot Encoding**: Encodes the entire document, including both all the
operations and the current document state.
- **Shallow Snapshot Encoding**: Loro 1.0 provides a new encoding format for
discarding useless historical operations. It is a special snapshot that
encodes the most recent historical operations, the starting state of the
remaining history, and the latest state of the document.
Different encoding formats are provided through the unified `doc.export(mode)`,
and all binary encoding formats can be imported via `doc.import(bytes)`.
```ts
export type ExportMode =
| {
mode: "update";
from?: VersionVector;
}
| {
mode: "updates-in-range";
spans: {
id: ID;
len: number;
}[];
}
| {
mode: "snapshot";
}
| {
mode: "shallow-snapshot";
frontiers: Frontiers;
};
```
## Updates Encoding
There are two modes for updates encoding. `update` 和 `updates-in-range`.
- `update` mode will encode all ops from the from version to the latest version
of the document.
- `updates-in-range` mode will encode all ops within the specified version
range.
```ts
const doc1 = new LoroDoc();
const doc2 = new LoroDoc();
doc2.setPeerId(2);
doc2.getText("text").insert(0, "hello");
const bytes = doc2.export({ mode: "update", from: doc1.version() }); // Uint8Array
// const bytes = doc2.export({ mode: "updates-in-range", spans: [{id: { peer: 2, counter: 0 }, len: 1}] });
// These bytes can be stored in a database or transmitted over a network.
doc1.import(bytes);
console.log(doc1.toJSON()); // { text: "hello" }
```
Updates Encoding selectively encodes operations from a chosen initial version to
the most recent, enhancing support for real-time collaboration by focusing on
incremental changes rather than the entire document state.
## Snapshot Encoding
```ts
const doc1 = new LoroDoc();
const doc2 = new LoroDoc();
doc2.getText("text").insert(0, "hello");
const bytes = doc2.export({ mode: "snapshot" }); // Uint8Array
// These bytes can be stored in a database or transmitted over a network.
doc1.import(bytes);
console.log(doc1.toJSON()); // { text: "hello" }
```
Snapshot Encoding comprehensively captures a document's current state and its
historical operations. This mode can quickly obtain the latest document state.
## Shallow Snapshot Encoding
Loro will save all editing history to resolve conflicts and history
backtracking. However, for most scenes, most of the older history is useless,
taking up too much extra memory and requires more storage space for saving.
Loro 1.0 provides a shallow snapshot encoding mode. You can specify the starting
historical version to be retained, and Loro will truncate all the history before
this version.
```ts
const doc1 = new LoroDoc();
const doc2 = new LoroDoc();
doc2.setPeerId(2);
const text = doc2.getText("text");
text.insert(0, "hello");
const frontiers = doc2.frontiers();
text.insert(0, "w");
text.insert(0, "o");
text.insert(0, "r");
text.insert(0, "l");
text.insert(0, "d");
const bytes = doc2.export({ mode: "shallow-snapshot", frontiers }); // Uint8Array
// These bytes can be stored in a database or transmitted over a network.
doc1.import(bytes);
console.log(doc1.toJSON()); // { text: "hello" }
```
Note: When using shallow snapshots, you cannot import updates that are
concurrent to the snapshot's start version. For details, see
[shallow snapshot](/docs/advanced/shallow_snapshot).
## Loro's Snapshot File Format
To support lazy loading capabilities, we referenced common storage formats in
databases, introduced a simple LSM engine, and abstracted the encoding results
as simple key bytes and value bytes representations, preparing for future
integration with common key-value databases.
### Encoding Details
In Loro, multiple consecutive Ops of the same Container are merged into one
Change, i.e., one commit record. Each Change has additional metadata, such as
ID, Lamport, Timestamp, etc. In most scenarios, Changes are also consecutive,
and related metadata can be compressed to some extent. Therefore, we combine
multiple consecutive Changes into a ChangeBlock, which is the minimum unit for
encoding Op history. Detailed encoding content can be found in the
[documentation](https://github.com/loro-dev/loro/blob/main/crates/loro-internal/src/oplog/change_store/block_encode.rs).
We use the first Change ID of the ChangeBlock as the query key, and the encoded
ChangeBlock as the value. This allows for quick querying of specified ID Changes
and their Ops without decoding all Changes.
The complete State is composed of the states of all Containers starting from the
Root Container. The key is the bytes representation of the ContainerID, and the
value is composed of each Container's metadata and the bytes encoded according
to its own semantic state expression.
These key-value pairs will be stored in our implemented simple LSM structure.
The final exported encoding will be divided into four parts: encoding header,
oplog bytes, latest state bytes, and shallow state bytes.
The Header consists of a 4-byte magic number, 16-byte checksum, and 2-byte
encode mode.
The oplog bytes, latest state bytes, and shallow state bytes are all exported
using the
[LSM encoding structure](https://github.com/loro-dev/loro/blob/main/crates/kv-store/src/lib.rs).
## Snapshot Encoding Layout
# FILE: pages/docs/tutorial/version.md
# Version
In centralized environments, we can use linear version numbers to represent a version, such as incrementing a number each time or using timestamps. However, CRDTs can be used in decentralized environments, and their version representation is different.
In Loro, you can express a document's version through a [Version Vector](https://en.wikipedia.org/wiki/Version_vector) or Frontiers.
```rust
doc.version(); // State Version vector
doc.oplogVersion(); // OpLog Version vector
doc.frontiers(); // State Frontiers
doc.oplogFrontiers(); // OpLog Frontiers
```
In most cases, you might only need the Version Vector, which can be used for data synchronization and version comparison.
To understand the difference and the definition of `Frontiers`, see [Loro's Versioning Deep Dive: DAG, Frontiers, and Version Vectors](/docs/advanced/version_deep_dive)
# FILE: pages/docs/tutorial/persistence.md
## Best Practices for Persisting Loro Documents
The simplest approach is to use full snapshots for both import and export
operations. Here's how it works:
1. Import the entire snapshot when loading the document.
2. Export a complete snapshot when saving changes.
3. Implement a debounce or throttle mechanism to trigger snapshot saves after a
certain number of edits.
This method simplifies initial application development but has a drawback: user
edits are not immediately saved. Let's explore how to quickly save each user
edit while minimizing resource consumption.
### Balancing Quick Saves and Resource Efficiency
To achieve both quick saves and resource efficiency:
- Use [`Snapshot Encoding`](./encoding#snapshot-encoding) to periodically store the entire document.
- Use [`Updates Encoding`](./encoding#updates-encoding) to export delta updates frequently (e.g., after each
keystroke or with debounce/throttle). Store these binary data in fast-write
storage like user disks or a key-value database. This ensures quick saves with
low resource cost.
- When loading a document, import the snapshot and all related updates to get
the latest version.
- After importing, export a new snapshot to replace the old one and remove
imported updates for faster future loading.
- If your `LoroDoc` has grown large and older history can be safely recycled,
use `Shallow Snapshot Encoding` to reduce snapshot size. You can archive the
history before the shallow snapshot's start version in cold storage.
For collaboration, the binary data generated by snapshot/updates can be
transmitted through any medium, such as WebRTC, WebSocket, or HTTP.
The strong eventual consistency in CRDTs ensures that peers with identical sets
of operations will converge to the same document state, obviating concerns about
the order, duplication, or timing of operation delivery.
# FILE: pages/docs/tutorial/ephemeral.md
---
keywords: "ephemeral, awareness, presence, collaborative"
description: "How to use Loro's ephemeral store feature to implement user awareness and online status management in real-time collaboration."
---
# Ephemeral Store
In real-time collaborative scenarios, Presence information is just as important as maintaining document consistency across peers through CRDTs. This includes information such as the current collaborator's username, mouse pointer position, or selected objects. We need a mechanism that doesn't persist in the CRDT Document but remains ephemeral, allowing collaborators to perceive each other's presence for better coordination and to avoid conflicts when multiple users edit the same object. This is why we've introduced the Ephemeral Store.
Since Ephemeral information is primarily used for real-time collaboration, we've chosen a simple yet effective approach. The Ephemeral Store is a timestamp-based, last-write-wins key-value store. Each entry maintains its own timestamp of the last update, enabling the system to send only the updated entry content rather than the complete current state.
## Example
```ts
import {
EphemeralStore,
EphemeralListener,
EphemeralStoreEvent,
} from "loro-crdt";
const store = new EphemeralStore();
// Set ephemeral data
store.set("loro-prosemirror", {
anchor: ...,
focus: ...,
user: "Alice"
});
store.set("online-users", ["Alice", "Bob"]);
expect(storeB.get("online-users")).toEqual(["Alice", "Bob"]);
// Encode only the data for `loro-prosemirror`
const encoded = store.encode("loro-prosemirror")
store.subscribe((e: EphemeralStoreEvent) => {
// Listen to changes from `local`, `remote`, or `timeout` events
});
```
## API
- `constructor(timeout)`:
Creates a new EphemeralStore instance with an optional timeout parameter (default: 30000ms). The timeout determines how long ephemeral data remains valid before being automatically removed.
- `set(key, value)`:
Sets a value for the specified key in the ephemeral store. If the key already exists, its value will be updated.
- `get(key)`:
Retrieves the current value for the specified key, or returns `undefined` if the key doesn't exist.
- `delete(key)`:
Removes the specified key and its associated value from the ephemeral store.
- `getAllStates()`:
Returns all current key-value pairs in the ephemeral store.
- `keys()`:
Returns an array of all keys currently in the ephemeral store.
- `encode(key)`:
Encodes the value associated with the specified key into a binary format that can be transmitted to other peers.
- `encodeAll()`:
Encodes all key-value pairs in the ephemeral store into a binary format.
- `apply(bytes)`:
Applies encoded ephemeral data received from other peers to the local ephemeral store.
- `subscribe((event: EphemeralStoreEvent)=>void)`:
Registers a listener function that will be called whenever the ephemeral store is updated, either from local changes, remote changes, or timeout events.
```ts
interface EphemeralStoreEvent {
// The source of the event: local changes, imported from remote, or timeout expiration
by: "local" | "import" | "timeout";
// Array of keys that were newly added
added: string[];
// Array of keys that had their values updated
updated: string[];
// Array of keys that were removed
removed: string[];
}
```
- `subscribeLocalUpdates((bytes: Uint8Array) => void)`:
Registers a listener that will be called only for local updates to the ephemeral store.
```ts
// you need maintain the Subscription to avoid gc
const _sub1 = ephemeral1.subscribeLocalUpdates((update) => {
ephemeral2.apply(update);
});
const _sub2 = ephemeral2.subscribeLocalUpdates((update) => {
ephemeral1.apply(update);
});
```
# FILE: pages/docs/tutorial/sync.md
## Sync
Two documents with concurrent edits can be synchronized by just two message
exchanges.
Below is an example of synchronization between two documents:
```ts
const docA = new LoroDoc();
const docB = new LoroDoc();
const listA: LoroList = docA.getList("list");
listA.insert(0, "A");
listA.insert(1, "B");
listA.insert(2, "C");
// B import the ops from A
const data: Uint8Array = docA.export({ mode: "update" });
// The data can be sent to B through the network
docB.import(data);
expect(docB.toJSON()).toStrictEqual({
list: ["A", "B", "C"],
});
const listB: LoroList = docB.getList("list");
listB.delete(1, 1);
// `doc.export({mode: "update", from: version})` can encode all the ops from the version to the latest version
// `version` is the version vector of another document
const missingOps = docB.export({
mode: "update",
from: docA.oplogVersion(),
});
docA.import(missingOps);
expect(docA.toJSON()).toStrictEqual({
list: ["A", "C"],
});
expect(docA.toJSON()).toStrictEqual(docB.toJSON());
```
## Real-time Collaboration
Due to CRDT properties, document consistency is guaranteed when peers receive the same updates, regardless of order or duplicates.
### Sync Strategies
1. **First Sync** (Initial synchronization between peers):
- New peers can exchange their [Version Vectors](/docs/tutorial/version) to determine missing updates
- Use `doc.export({ mode: "update", from: versionVector })` to get updates since the peer's last known state.
You may as well send the whole history by `doc.export({ mode: "update" })` as shown in the example above.
- Example shows basic first sync scenario
2. **Realtime Sync** (Continuous updates):
- Subscribe to local updates
- Broadcast updates directly to all other peers
- No need for version comparison after initial sync
- As long as updates reach all peers, consistency is maintained
### Example
Here's how two peers can establish realtime sync when one comes online with offline changes:
1. Both peers exchange their version information
2. Each peer shares their missing updates:
- `doc2` gets updates it's missing from `doc1`
- `doc1` gets updates it's missing from `doc2`
3. Both peers establish realtime sync to stay connected
```ts
const doc1 = new LoroDoc();
doc1.getText("text").insert(0, "Hello");
// Peer2 joins the network
const doc2 = new LoroDoc();
// ... doc2 may import its local snapshot
// 1. Exchange version information
const peer2Version = doc2.oplogVersion();
const peer1Version = doc1.oplogVersion();
// 2. Request missing updates from existing peers
const missingOps = doc1.export({
mode: "update",
from: peer2Version
});
doc2.import(missingOps);
const missingOps2 = doc2.export({
mode: "update",
from: peer1Version,
});
doc1.import(missingOps2);
// 3. Establish realtime sync
doc2.subscribeLocalUpdates((update) => {
// websocket.send(update);
});
doc1.subscribeLocalUpdates((update) => {
// websocket.send(update);
});
// Now both peers are in sync and can collaborate
```
## Understanding the `import()` Return Value
The `import()` method in Loro's JavaScript/WASM binding returns an object that provides feedback on the import operation. This object, let's call it `ImportStatusJS`, has the following structure:
```typescript
interface ImportStatusJS {
success: PeerVersionRange;
pending?: PeerVersionRange; // Optional: only present if there are pending operations
}
interface PeerVersionRange {
[peerId: string]: {
start: number; // Start counter (inclusive)
end: number; // End counter (exclusive)
};
}
```
### Fields Explained:
1. **`success`** (Object, `PeerVersionRange`)
* **Description**: This field is always present and details the ranges of operations (changes) that were successfully imported and applied to the Loro document.
* **Structure**: It's an object where:
* Each **key** is a `string` representing a `PeerID` (the unique identifier of a collaborator or a source of changes).
* Each **value** is an object `{ start: number, end: number }` defining a continuous range of operation counters for that specific peer.
* `start`: The starting counter of the successfully imported range (inclusive).
* `end`: The ending counter of the successfully imported range (exclusive). This means operations from `start` up to, but not including, `end` were processed.
* **Purpose**: Helps understand which parts of the provided update data have been integrated into the local document's state.
* **Example**:
```javascript
// Assuming importResult is the return value of doc.import(bytes)
console.log(importResult.success);
// Example output:
// {
// "clientA_peerId": { "start": 0, "end": 50 },
// "server_peerId": { "start": 120, "end": 150 }
// }
// This means operations from clientA (counters 0-49) and
// operations from server (counters 120-149) were successfully imported.
```
2. **`pending`** (Object, `PeerVersionRange`, optional)
* **Description**: This field is only present if some operations from the imported data could not be applied because they depend on other operations that Loro has not seen yet (i.e., their causal dependencies are missing). It details these "pending" operation ranges.
* **Structure**: Identical to the `success` field. An object mapping `PeerID` strings to `{ start: number, end: number }` counter ranges.
* **Purpose**: Informs the application that certain changes are known but are "on hold" awaiting their prerequisites. To apply these pending changes, the missing prerequisite operations must be imported first. This is crucial for maintaining data consistency in collaborative scenarios.
* **Example**:
```javascript
// Assuming importResult is the return value of doc.import(bytes)
if (importResult.pending) {
console.log(importResult.pending);
// Example output:
// {
// "clientA_peerId": { "start": 50, "end": 60 },
// "clientB_peerId": { "start": 10, "end": 25 }
// }
// This means operations from clientA (counters 50-59) and
// operations from clientB (counters 10-24) are pending due to missing dependencies.
}
```
### How to Use This Information:
* Check the `success` field to confirm which updates were applied.
* If the `pending` field exists and is not empty, it signals that further updates (dependencies) are required to fully integrate all known changes. Your application might need to fetch or request these missing updates from other peers or a central server.
# FILE: pages/docs/tutorial/event.md
# Event Handling in Loro
Loro implements an event system to track changes in the document. This section
explains when events are emitted and how transactions work in Loro.
## Event Emission Points
Events in Loro are emitted whenever the internal document state changes. This
mechanism allows application-level derived states to automatically synchronize
with changes in the document state.
1. **Local Operations**: For local operations (like insertions or deletions on
text), the operations are first placed in a pending state within an internal
transaction.
2. **Transaction Commit**: When a transaction is committed, all pending
operations collectively emit their corresponding events. This transaction
commit occurs in two scenarios:
- When `LoroDoc.commit()` is explicitly called
- Automatically before an import or export operation
Note that events are emitted asynchronously after a microtask. If you need to handle events immediately after a commit, you should await a microtask:
```javascript
const doc = new LoroDoc();
doc.subscribe((event) => {
console.log("Event:", event);
});
const text = doc.getText("text");
text.insert(0, "Hello");
doc.commit();
// Event hasn't been emitted yet
await Promise.resolve();
// Now the event has been emitted
```
3. **Import**: When importing changes from a remote source using the `import()`
method, respective events are emitted. This allows the local document to
react to changes made by other peers.
```javascript no_run
const doc = new LoroDoc();
doc.subscribe((event) => {
console.log("Event:", event);
});
doc.import(remoteChanges); // This will trigger events after a microtask
await Promise.resolve(); // Wait for events to be emitted
```
4. **Version Checkout**: When you switch document state to a different version
using `doc.checkout(frontiers)`, Loro emits an event to reflect this change.
Like other events, these are also emitted after a microtask.
```javascript
const doc = new LoroDoc();
const frontiers = doc.frontiers();
doc.checkout(frontiers); // This will trigger events after a microtask
await Promise.resolve(); // Wait for events to be emitted
```
## Transaction Behavior
Transactions in Loro primarily serve to bundle related operations and emit their
events together as a cohesive unit. This is useful in several scenarios:
1. **Related Local Operations**: When performing multiple local operations that
are logically connected, you may want them to:
- Share the same commit message
- Have the same timestamp
- Move together during undo/redo operations
2. **Event Handling**: Applications often benefit from receiving related changes
as a single batch rather than individual updates. Transactions facilitate
this by:
- Allowing you to set an origin identifier during commit
- Including this origin value in the emitted events
- Enabling better event filtering and processing based on the origin
## Triggering a Commit
There are several ways to trigger a commit:
1. **Explicit Commit**: Directly calling the `commit()` method on the Loro
document.
```javascript
const doc = new LoroDoc();
const text = doc.getText("myText");
text.insert(0, "Hello, Loro!");
doc.commit(); // This commits pending operations and emits events
```
2. **Before Import/Export**: A commit is automatically triggered before
executing an import operation.
```javascript
const doc1 = new LoroDoc();
doc1.setPeerId(1);
const doc2 = new LoroDoc();
doc2.setPeerId(2);
// Some ops on doc1 and doc2
doc1.getText("text").insert(0, "Alice");
doc2.getText("text").insert(0, "Hello, Loro!");
console.log(doc1.version().toJSON()); // Map(0) {}
console.log(doc2.version().toJSON()); // Map(0) {}
const updates = doc1.export({ mode: "snapshot" });
doc2.import(updates); // This first commits any pending operations in doc2
console.log(doc2.version().toJSON()); // Map(2) { "1" => 5, "2" => 12 }
console.log(doc1.version().toJSON()); // Map(2) { "1" => 5 }
```
## Transactions in Loro
It's important to note that Loro's concept of a transaction differs from
traditional database transactions:
- Loro transactions do not have ACID properties.
- They primarily serve as event wrappers.
- There is no rollback mechanism if an operation fails.
# FILE: pages/docs/tutorial/get_started.md
---
keywords: "loro-crdt, build collaboration software, local-first, operation transform, crdts, ot"
description: "How to use Loro to build real-time or asynchronous collaboration software."
---
# Getting Started
You can use Loro in your application by using:
- [`loro-crdt`](https://www.npmjs.com/package/loro-crdt) NPM package
- [`loro`](https://crates.io/crates/loro) Rust crate
- [`loro-swift`](https://github.com/loro-dev/loro-swift) Swift package
- [`loro-py`](https://github.com/loro-dev/loro-py) Python package
- You can also find a list of examples in
[Loro examples in Deno](https://github.com/loro-dev/loro-examples-deno).
You can use [Loro Inspector](/docs/advanced/inspector) to debug and visualize the state and history of Loro documents.
The following guide will use `loro-crdt` js package as the example.
[](https://stackblitz.com/edit/loro-basic-test?file=test%2Floro-sync.test.ts)
## Install
```bash
npm install loro-crdt
# Or
pnpm install loro-crdt
# Or
yarn add loro-crdt
```
If you're using `Vite`, you should add the following to your vite.config.ts:
```ts no-run
import wasm from "vite-plugin-wasm";
import topLevelAwait from "vite-plugin-top-level-await";
export default defineConfig({
plugins: [...otherConfigures, wasm(), topLevelAwait()],
});
```
If you're using `Next.js`, you should add the following to your next.config.js:
```js no-run
module.exports = {
webpack: function (config) {
config.experiments = {
layers: true,
asyncWebAssembly: true,
};
return config;
},
};
```
You can also use Loro directly in the browser via ESM imports. Here's a minimal
example:
```html
ESM Module Example
```
## Introduction
It is well-known that syncing data/building realtime collaborative apps is
challenging, especially when devices can be offline or part of a peer-to-peer
network. Loro simplifies this process for you.
After you model your app state by Loro, syncing is simple:
```ts
const docA = new LoroDoc();
const docB = new LoroDoc();
//...operations on docA and docB
// Assume docA and docB are two Loro documents in two different devices
const bytesA = docA.export({ mode: "update" });
// send bytes to docB by any method
docB.import(bytesA);
// docB is now updated with all the changes from docA
const bytesB = docB.export({ mode: "update" });
// send bytes to docA by any method
docA.import(bytesB);
// docA and docB are now in sync, they have the same state
```
Saving your app state is also straightforward:
```ts
const doc = new LoroDoc();
doc.getText("text").insert(0, "Hello world!");
const bytes = doc.export({ mode: "snapshot" });
// Bytes can be saved to local storage, database, or sent over the network
```
Loading your app state:
```ts no_run
const newDoc = new LoroDoc();
newDoc.import(bytes);
```
Loro also makes it easy for you to time travel the history and add version
control to your app. [Learn more about time travel](/docs/tutorial/time_travel).
```ts no_run
doc.checkout(version); // Checkout the doc to the given version
```
Loro is compatible with the JSON schema. If you can model your app state with
JSON, you probably can sync your app with Loro. Because we need to adhere to the
JSON schema, using a number as a key in a Map is not permitted, and cyclic links
should be avoided.
```ts no_run
doc.toJSON(); // Get the JSON representation of the doc
```
## Entry Point: LoroDoc
LoroDoc is the entry point for using Loro. You must create a Doc to use Map,
List, Text, and other types and to complete data synchronization.
```ts
const doc = new LoroDoc();
const text: LoroText = doc.getText("text");
text.insert(0, "Hello world!");
console.log(doc.toJSON()); // { "text": "Hello world!" }
```
## Container
We refer to CRDT types such as `List`, `Map`, `Tree`, `MovableList`, and `Text`
as `Container`s.
Here are their basic operations:
```ts
const doc = new LoroDoc();
const list: LoroList = doc.getList("list");
list.insert(0, "A");
list.insert(1, "B");
list.insert(2, "C");
const map: LoroMap = doc.getMap("map");
// map can only has string key
map.set("key", "value");
expect(doc.toJSON()).toStrictEqual({
list: ["A", "B", "C"],
map: { key: "value" },
});
// delete 2 element at index 0
list.delete(0, 2);
expect(doc.toJSON()).toStrictEqual({
list: ["C"],
map: { key: "value" },
});
// Insert a text container to the list
const text = list.insertContainer(0, new LoroText());
text.insert(0, "Hello");
text.insert(0, "Hi! ");
expect(doc.toJSON()).toStrictEqual({
list: ["Hi! Hello", "C"],
map: { key: "value" },
});
// Insert a list container to the map
const list2 = map.setContainer("test", new LoroList());
list2.insert(0, 1);
expect(doc.toJSON()).toStrictEqual({
list: ["Hi! Hello", "C"],
map: { key: "value", test: [1] },
});
```
## Save and Load
Loro is a pure library and does not handle network protocols or storage mechanisms. It is your responsibility to manage the storage and transmission of the binary data exported by Loro.
To save the document, use `doc.export({mode: "snapshot"})` to get its binary
form. To open it again, use `doc.import(data)` to load this binary data.
```ts
const doc = new LoroDoc();
doc.getText("text").insert(0, "Hello world!");
const data = doc.export({ mode: "snapshot" });
const newDoc = new Loro();
newDoc.import(data);
expect(newDoc.toJSON()).toStrictEqual({
text: "Hello world!",
});
```
Exporting the entire document on each keypress is inefficient. Instead, use
`doc.export({mode: "update", from: VersionVector})` to obtain binary data for
operations since the last export.
```ts
const doc = new LoroDoc();
doc.getText("text").insert(0, "Hello world!");
const data = doc.export({ mode: "snapshot" });
let lastSavedVersion = doc.version();
doc.getText("text").insert(0, "✨");
const update0 = doc.export({ mode: "update", from: lastSavedVersion });
lastSavedVersion = doc.version();
doc.getText("text").insert(0, "😶🌫️");
const update1 = doc.export({ mode: "update", from: lastSavedVersion });
{
/**
* You can import the snapshot and the updates to get the latest version of the document.
*/
// import the snapshot
const newDoc = new LoroDoc();
newDoc.import(data);
expect(newDoc.toJSON()).toStrictEqual({
text: "Hello world!",
});
// import update0
newDoc.import(update0);
expect(newDoc.toJSON()).toStrictEqual({
text: "✨Hello world!",
});
// import update1
newDoc.import(update1);
expect(newDoc.toJSON()).toStrictEqual({
text: "😶🌫️✨Hello world!",
});
}
{
/**
* You may also import them in a batch
*/
const newDoc = new LoroDoc();
newDoc.importUpdateBatch([update1, update0, data]);
expect(newDoc.toJSON()).toStrictEqual({
text: "😶🌫️✨Hello world!",
});
}
```
If updates accumulate, exporting a new snapshot can quicken import times and
decrease the overall size of the exported data.
You can store the binary data exported from Loro wherever you prefer.
## Sync
Two documents with concurrent edits can be synchronized by just two message
exchanges.
Below is an example of synchronization between two documents:
```ts
const docA = new LoroDoc();
const docB = new LoroDoc();
const listA: LoroList = docA.getList("list");
listA.insert(0, "A");
listA.insert(1, "B");
listA.insert(2, "C");
// B import the ops from A
const data: Uint8Array = docA.export({ mode: "update" });
// The data can be sent to B through the network
docB.import(data);
expect(docB.toJSON()).toStrictEqual({
list: ["A", "B", "C"],
});
const listB: LoroList = docB.getList("list");
listB.delete(1, 1);
// `doc.export({mode: "update", from: version})` can encode all the ops from the version to the latest version
// `version` is the version vector of another document
const missingOps = docB.export({
mode: "update",
from: docA.oplogVersion(),
});
docA.import(missingOps);
expect(docA.toJSON()).toStrictEqual({
list: ["A", "C"],
});
expect(docA.toJSON()).toStrictEqual(docB.toJSON());
```
## Event
You can subscribe to the event from `Container`s.
`LoroText` and `LoroList` can receive updates in
[Quill Delta](https://quilljs.com/docs/delta/) format.
The events will be emitted after a transaction is committed. A transaction is
committed when:
- `doc.commit()` is called.
- `doc.export(mode)` is called.
- `doc.import(data)` is called.
- `doc.checkout(version)` is called.
Below is an example of rich text event:
```ts
// The code is from https://github.com/loro-dev/loro-examples-deno
const doc = new LoroDoc();
const text = doc.getText("text");
text.insert(0, "Hello world!");
doc.commit();
let ran = false;
text.subscribe((e) => {
for (const event of e.events) {
if (event.diff.type === "text") {
expect(event.diff.diff).toStrictEqual([
{
retain: 5,
attributes: { bold: true },
},
]);
ran = true;
}
}
});
text.mark({ start: 0, end: 5 }, "bold", true);
doc.commit();
await new Promise((r) => setTimeout(r, 1));
expect(ran).toBeTruthy();
```
The types of events are defined as follows:
```ts
export interface LoroEvent {
/**
* The container ID of the event's target.
*/
target: ContainerID;
diff: Diff;
/**
* The absolute path of the event's emitter, which can be an index of a list container or a key of a map container.
*/
path: Path;
}
export type Path = (number | string | TreeID)[];
export type Diff = ListDiff | TextDiff | MapDiff | TreeDiff | CounterDiff;
export type ListDiff = {
type: "list";
diff: Delta[];
};
export type TextDiff = {
type: "text";
diff: Delta[];
};
export type MapDiff = {
type: "map";
updated: Record;
};
export type TreeDiffItem =
| {
target: TreeID;
action: "create";
parent: TreeID | undefined;
index: number;
fractionalIndex: string;
}
| {
target: TreeID;
action: "delete";
oldParent: TreeID | undefined;
oldIndex: number;
}
| {
target: TreeID;
action: "move";
parent: TreeID | undefined;
index: number;
fractionalIndex: string;
oldParent: TreeID | undefined;
oldIndex: number;
};
export type TreeDiff = {
type: "tree";
diff: TreeDiffItem[];
};
export type CounterDiff = {
type: "counter";
increment: number;
};
export type Delta =
| {
insert: T;
attributes?: { [key in string]: {} };
retain?: undefined;
delete?: undefined;
}
| {
delete: number;
attributes?: undefined;
retain?: undefined;
insert?: undefined;
}
| {
retain: number;
attributes?: { [key in string]: {} };
delete?: undefined;
insert?: undefined;
};
```
# FILE: pages/docs/tutorial/tree.md
---
keywords: "tree crdt, move operation, fractional index, hierarchical, tree"
description: "how to use loro tree crdt and show all APIs of loro tree crdt."
---
# Tree
When it comes to utilizing hierarchical data structures and even performing operations across different levels of data, tree structures are of paramount importance. Loro implements the concept of a movable tree CRDT, based on the algorithm created by Kleppmann et al. in **_[A highly-available move operation for replicated trees](https://martin.kleppmann.com/2021/10/07/crdt-tree-move-operation.html)_**.
In addition to this, Loro further employs **Fractional Index** (an algorithm used in distributed systems to maintain the order of sequences) to sort each child node, ensuring that sibling nodes maintain an orderly sequence. As a result, Loro can provide APIs such as `moveAfter()` and `moveBefore()`. This is particularly useful when a custom-ordered hierarchical view is required.
## Node Data
Loro associates a [Map](https://www.loro.dev/docs/tutorial/map) with each tree node, serving as a data container for the node, allowing you to nest any data structure supported by Loro.
> Note: The associated Map Container is considered a child of the Tree Container within the Loro documentation hierarchy.
You can get the associated map by `.data` of the `LoroTreeNode` so you can invoke `set` or `setContainer` on the map to add some data or sub-containers to the tree node. For example:
```ts
import { Loro, LoroTree, LoroTreeNode, LoroMap, LoroList } from "loro-crdt";
let doc = new Loro();
let tree: LoroTree = doc.getTree("tree");
let node: LoroTreeNode = tree.createNode();
node.data.set("key", "value");
node.data.setContainer("list", new LoroList());
```
## Ordered Tree Nodes
In certain scenarios such as graphic design or file systems, where sibling nodes may also require a sequential relationship, we have introduced `Fractional Index` in Loro to support this capability. You can read more about `Fractional Index` in the [Figma blog](https://www.figma.com/blog/realtime-editing-of-ordered-sequences). In simple terms, `Fractional Index` assigns a sortable value to each object, and if a new insertion occurs between two objects, the `Fractional Index` of the new object will be between the left and right values. The rust-based `Fractional Index` [implementation of Drifting-in-Space](https://github.com/drifting-in-space/fractional_index) has good design and minimal document size growth in most cases. We forked it and made a simple extension for use in Loro.
Whenever a new tree node is created or a node is moved to a new position, Loro will generate a `Fractional Index` for the node based on its position to sort among sibling nodes. In collaborative environments, conflicts with `Fractional Indexes` can arise, such as different nodes having the same `Fractional Index` or the situation where the calculation of a new node's position results in the same `Fractional Index` on both sides. We will discuss the corresponding conflict resolution methods in detail in [the blog post](https://www.loro.dev/blog/movable-tree).
You should call `enable_fractional_index(jitter: number)` to enable `Fractional Index`.
> Note: Fractional Index has an interleaving issue, but we believe this is acceptable for tree structures.
## Events
There are three types of events in the tree structure: `Create`, `Move`, and `Delete`, as follows:
```typescript
export type TreeDiffItem =
| {
target: TreeID;
action: "create";
parent: TreeID | undefined;
index: number;
fractionalIndex: string;
}
| {
target: TreeID;
action: "delete";
oldParent: TreeID | undefined;
oldIndex: number;
}
| {
target: TreeID;
action: "move";
parent: TreeID | undefined;
index: number;
fractionalIndex: string;
oldParent: TreeID | undefined;
oldIndex: number;
};
```
Here, `index` and `fractionalIndex` represent the node's index and the hex string representation of the `Fractional Index`, respectively. Loro will emit events in the order of causality. The deletion event signifies that the target node, along with the entire subtree rooted at the target node, has been deleted. Deletion events for the child nodes are not emitted.
### Events of node's data
Since the data of the tree nodes is represented using `MapContainer`, each `MapContainer` associated with a tree node is a child of the `TreeContainer` in the document. If you modify the data of a tree node, you will receive an event from the `MapContainer`. However, the event path contains a element of `TreeID` to indicate which node's data has been altered.
## Retrieving All Nodes
There are multiple ways to retrieve all nodes from a `LoroTree`:
1. `nodes()`: Retrieves all `LoroTreeNode` instances from the current `LoroTree`, but this function does not guarantee the order of the nodes.
2. `roots()`: Retrieves all root nodes from the current `LoroTree`, with the root nodes being ordered. Subsequently, the `children()` method of `LoroTreeNode` can be used to perform a hierarchical traversal.
3. `toArray()`: Retrieves all node information in a hierarchical traversal order, where each node's data structure is as follows:
```ts no_run
{
id: TreeID;
parent: TreeID | undefined;
index: number;
fractionalIndex: string;
meta: LoroMap;
}
```
4. `toJSON()`: The JSON representation of `toArray()`, where each node's `meta` is also recursively parsed into JSON format.
## Basic Usage
### Example
```ts
import { Loro, LoroTree, LoroTreeNode, LoroMap } from "loro-crdt";
let doc = new Loro();
let tree: LoroTree = doc.getTree("tree");
let root: LoroTreeNode = tree.createNode();
// By default, append to the end of the parent node's children list
let node = root.createNode();
// Specify the child's position
let node2 = root.createNode(0);
// Move the node to become a child of another node
node.move(node2);
// Specify the child's position within the new parent
node.move(node2, 0);
// Move the node to become the root node
node.move();
// Move the node to be positioned after another node
node.moveAfter(node2);
// Move the node to be positioned before another node
node.moveBefore(node2);
// Retrieve the index of the node within its parent's children
let index = node.index();
// Get the fractional index of the node
let fractionalIndex = node.fractionalIndex();
// Access the associated data map container
let nodeData: LoroMap = node.data;
```
# FILE: pages/docs/tutorial/time_travel.mdx
---
keywords: "crdt, time travel, history, checkout, version control"
description: "time travel in Loro"
---
# How to Use Time Travel in Loro
In Loro, you can call `doc.checkout(frontiers)` to jump to the version specified
by the
frontiers([Learn more about frontiers](/docs/advanced/version_deep_dive#frontiers)).
Note that using `doc.checkout(frontiers)` to jump to a specific version places
the document in a detached state, preventing further edits. To learn more, see
[_Attached/Detached Status_](/docs/advanced/doc_state_and_oplog#attacheddetached-status).
To continue editing, reattach the document to the latest version using
`doc.attach()`. This design is temporary and will be phased out once we have a
more refined version control API in place.
## Read-only Time Travel
Below we demonstrate how to implement simple, read-only time-travel. You could,
for example, combine this with a slider in a UI to allow users to view the document
over time.
### Enable Timestamps
Before this example will work, it is important that the edits made to the document
have had [timestamp storage](/docs/advanced/timestamp) enabled:
```ts no_run
doc.setRecordTimestamp(true);
```
This makes sure that all changes to the document will have a timestamp added to it.
We will use this timestamp to sort changes so that the ordering will match user
intuition.
### Implementing Time Travel
The first step is to load our document. Here we assume that you have a snapshot from your database
or API.
```ts no_run
// Get the snapshot for your doc from your database / API
let snapshot = fetchSnapshot();
// Import into a new document
const doc = new LoroDoc();
doc.import(snapshot);
```
Next we must collect and sort the timestamps for every change in the document. We want uesrs to be
able to drag a slider to select a timestamp out of this list.
```ts no_run
// Collect all changes from the document
const changes = doc.getAllChanges();
// Get the timestamps for all changes
const timestamps = Array.from(
new Set(
[...changes.values()]
.flat() // Flatten changes from all peers into one list
.map((x) => x.timestamp) // Get the timestamp from each peer
.filter((x) => !!x)
)
);
// Sort the timestamps
timestamps.sort((a, b) => a - b);
```
Next we need to make a helper function that will return a list of
[Frontiers](/docs/advanced/version_deep_dive#frontiers) for any timestamp.
For each peer that has edited a document, there is a list of changes by that peer. Each change has a
`counter`, and a `length`. That `counter` is like an always incrementing version number for the
changes made by that peer.
A change's `counter` is the starting point of the change, and the `length` indicates how much the
change incremented the counter before the end of the change.
The frontiers are the list of counters that we want to checkout from each peer. Since we are going
for a timeline view, we want to get the highest counter that we know happned before our timestamp
for each peer.
Here we make a helper function to do that.
```ts
const getFrontiersForTimestamp = (
changes: Map,
ts: number
): { peer: string; counter: number }[] => {
const frontiers = [] as { peer: string; counter: number }[];
// Record the highest counter for each peer where it's change is not later than
// our target timestamp.
changes.forEach((changes, peer) => {
let counter = -1;
for (const change of changes) {
if (change.timestamp <= ts) {
counter = Math.max(counter, change.counter + change.length - 1);
}
}
if (counter > -1) {
frontiers.push({ counter, peer });
}
});
return frontiers;
};
```
Finally, all we can get the index from our slider, get the timestamp from our list, and then
checkout the calculated frontiers.
```ts no_run
let sliderIdx = 3;
const timestamp = timestamps[sliderIdx - 1];
const frontiers = getFrontiersForTimestamp(changes, timestamp);
doc.checkout(frontiers);
```
## Time Travel With Editing
Below is a more complete example demonstrating Time Travel functionality with a node editor.
# FILE: pages/docs/tutorial/loro_doc.md
# Getting Started with LoroDoc
LoroDoc is the main entry point for almost all Loro functionality. It serves as a container manager and coordinator that provides:
1. **Container Management**: Create and manage different types of CRDT containers (Text, List, Map, Tree, MovableList)
2. **Version Control**: Track document history, checkout versions, and manage branches
3. **Event System**: Subscribe to changes at both document and container levels
4. **Import/Export**: Save and load documents/updates in various formats
## Basic Usage
First, let's create a new LoroDoc instance:
```typescript
import { LoroDoc } from "loro-crdt";
// Create a new document with a random peer ID
const doc = new LoroDoc();
// Or set a specific peer ID
doc.setPeerId("1");
// Create containers
const text = doc.getText("text");
const list = doc.getList("list");
const map = doc.getMap("map");
const tree = doc.getTree("tree");
const movableList = doc.getMovableList("tasks");
```
To model a document with the following format:
```json
{
"meta": {
"title": "Document Title",
"createdBy": "Author"
},
"content": "Article",
"comments": [
{
"user": "userId",
"comment": "comment"
}
]
}
```
```ts
const doc = new LoroDoc();
const meta = doc.getMap("meta");
meta.set("title", "Document Title");
meta.set("createdBy", "Author");
doc.getText("content").insert(0, "Article");
const comments = doc.getList("comments");
const comment1 = comments.insertContainer(0, new LoroMap());
comment1.set("user", "userId");
comment1.set("comment", "comment");
```
## Container Types
LoroDoc supports several container types:
1. **Text** - For rich text editing
2. **List** - For ordered collections
3. **Map** - For key-value pairs
4. **Tree** - For hierarchical data structures
5. **MovableList** - For lists with movable items
Let's look at how to use each type:
### Text Container
```typescript
const doc = new LoroDoc();
const text = doc.getText("text");
text.insert(0, "Hello");
text.insert(5, " World!");
console.log(text.toString()); // "Hello World!"
// Rich text support
doc.configTextStyle({
bold: { expand: "after" },
link: { expand: "none" }
});
text.mark({ start: 0, end: 5 }, "bold", true);
```
### List Container
```typescript
const doc = new LoroDoc();
const list = doc.getList("list");
list.insert(0, "first");
list.insert(1, "second");
console.log(list.toArray()); // ["first", "second"]
// Nested containers
const nestedText = list.insertContainer(2, new LoroText());
nestedText.insert(0, "nested text");
```
### Map Container
```typescript
const doc = new LoroDoc();
const map = doc.getMap("map");
map.set("name", "John");
map.set("age", 30);
console.log(map.get("name")); // "John"
// Nested containers
const userText = map.setContainer("bio", new LoroText());
userText.insert(0, "Software Engineer");
```
### Tree Container
```typescript
const doc = new LoroDoc();
const tree = doc.getTree("tree");
const root = tree.createNode();
root.data.set("name", "Root");
const child1 = root.createNode();
child1.data.set("name", "Child 1");
const child2 = root.createNode();
child2.data.set("name", "Child 2");
```
### MovableList Container
```typescript
const doc = new LoroDoc();
const movableList = doc.getMovableList("tasks");
movableList.insert(0, "Task 1");
movableList.insert(1, "Task 2");
movableList.move(0, 1); // Move Task 1 after Task 2
```
## Collaboration Features
LoroDoc can be used for real-time collaboration. Here's how to sync changes between peers:
```typescript
// First peer
const doc1 = new LoroDoc();
doc1.setPeerId("1");
const text1 = doc1.getText("text");
// Second peer
const doc2 = new LoroDoc();
doc2.setPeerId("2");
const text2 = doc2.getText("text");
// Set up two-way sync
doc1.subscribeLocalUpdates((updates) => {
doc2.import(updates);
});
doc2.subscribeLocalUpdates((updates) => {
doc1.import(updates);
});
// Now changes in doc1 will be reflected in doc2 and vice versa
text1.insert(0, "Hello");
doc1.commit();
await Promise.resolve(); // await for the event to be emitted
text2.insert(5, " World!");
doc2.commit();
```
## Undo/Redo Support
Loro provides built-in undo/redo functionality:
```typescript
import { UndoManager, LoroDoc } from "loro-crdt";
const doc = new LoroDoc();
const undoManager = new UndoManager(doc, {
maxUndoSteps: 100,
mergeInterval: 1000
});
const text = doc.getText("text");
// Make some changes
text.insert(0, "Hello");
doc.commit();
// Undo the changes
if (undoManager.canUndo()) {
undoManager.undo();
}
// Redo the changes
if (undoManager.canRedo()) {
undoManager.redo();
}
```
## Exporting and Importing
You can save and load the document state:
```typescript
const doc = new LoroDoc();
// Export the document
const snapshot = doc.export({ mode: "snapshot" });
// Create a new document from the snapshot
const newDoc = LoroDoc.fromSnapshot(snapshot);
const doc2 = new LoroDoc();
// Or import into an existing document
doc2.import(snapshot);
```
### Shallow Import/Export
Shallow import/export is a feature that allows you to create and share document snapshots without including the complete history. This is particularly useful for:
1. Reducing the size of exported data
2. Sharing the document with others without revealing the complete history
3. Speedup the import/export process
Here's how to use shallow export:
```typescript
const doc = new LoroDoc();
// Export a shallow snapshot that only include the history since `doc.oplogFrontiers()`
// It works like `git clone --depth=1`, where the exported data only contain the most recent ops.
const shallowSnapshot = doc.export({
mode: "shallow-snapshot",
frontiers: doc.oplogFrontiers()
});
// Check if a document is shallow
const isShallow = doc.isShallow();
// Get the version since which the history is available
const sinceVersion = doc.shallowSinceVV();
// Or get it in frontiers format
const sinceFrontiers = doc.shallowSinceFrontiers();
```
Note: A shallow document only contains history after a certain version point. Operations before the shallow start point are not included, but the document remains fully functional for collaboration.
### Redacting Sensitive Content
Loro allows you to redact specific segments of document history while preserving the rest. This is particularly useful when:
1. A user accidentally pastes sensitive information (like passwords or API keys) into the document
2. You need to remove just the sensitive part of the history while keeping older and newer edits intact
3. You want to share document history with sensitive segments sanitized
Here's how to use the redaction functionality:
```typescript
const doc = new LoroDoc();
doc.setPeerId("1");
// Create some content to be redacted
const text = doc.getText("text");
text.insert(0, "Sensitive information");
doc.commit();
const map = doc.getMap("map");
map.set("password", "secret123");
map.set("public", "public information");
doc.commit();
// Export JSON updates
const jsonUpdates = doc.exportJsonUpdates();
// Define version range to redact (redact the text content)
const versionRange = {
"1": [0, 21] // Redact the "Sensitive information"
};
// Apply redaction
const redactedJson = redactJsonUpdates(jsonUpdates, versionRange);
// Create a new document with redacted content
const redactedDoc = new LoroDoc();
redactedDoc.importJsonUpdates(redactedJson);
// The text content is now redacted with replacement characters
console.log(redactedDoc.getText("text").toString());
// Outputs: "���������������������"
// Map operations after the redacted range remain intact
console.log(redactedDoc.getMap("map").get("password")); // "secret123"
console.log(redactedDoc.getMap("map").get("public")); // "public information"
```
Redaction applies these rules to preserve document structure while removing sensitive content:
- Preserves delete and move operations
- Replaces text insertion content with Unicode replacement characters '�'
- Substitutes list and map insert values with null
- Maintains structure of nested containers
- Replaces text mark values with null
- Preserves map keys and text annotation keys
Note that redaction doesn't remove the operations completely - it just replaces the sensitive content with placeholders. If you need to completely remove portions of history, see the section on shallow snapshots in the [Tips](./tips.md) section.
#### Important: Synchronization Considerations
Both redaction and shallow snapshots maintain future synchronization consistency, but your application is responsible for ensuring all peers get the sanitized version. Otherwise, old instances of the document with sensitive information will still exist on other peers.
## Event Subscription
Subscribe to changes in the document:
```typescript
const doc = new LoroDoc();
doc.subscribe((event) => {
console.log("Document changed:", event);
});
const text = doc.getText("text");
// Container-specific subscription
text.subscribe((event) => {
console.log("Text changed:", event);
});
```
### Event Emission
Events in LoroDoc are emitted only after a transaction is committed, and importantly, the events are emitted after a microtask. This means you need to await a microtask if you want to handle the events immediately after a commit.
1. Explicitly calling `doc.commit()`:
```typescript
const doc = new LoroDoc();
const text = doc.getText("text");
// Subscribe to changes
doc.subscribe((event) => {
console.log("Change event:", event);
});
text.insert(0, "Hello"); // No event emitted yet
doc.commit(); // Event will be emitted after a microtask
// If you need to wait for the event:
await Promise.resolve(); // Now the event has been emitted
```
2. Implicitly through certain operations:
```typescript no_run
const doc = new LoroDoc();
const text = doc.getText("text");
// These operations trigger implicit commits:
doc.export({ mode: "snapshot" }); // Implicit commit
doc.import(someData); // Implicit commit
doc.checkout(someVersion); // Implicit commit
```
You can also specify additional information when committing:
```typescript no_run
doc.commit({
origin: "user-edit", // Mark the event source
message: "Add greeting", // Like a git commit message
timestamp: Date.now() // Custom timestamp
});
await Promise.resolve(); // Wait for event if needed
```
Note: Multiple operations before a `commit` are batched into a single event. This helps reduce event overhead and provides atomic changes. The event will still be emitted after a microtask, regardless of whether the commit was explicit or implicit.
## Version Control and History
LoroDoc provides powerful version control features that allow you to track and manage document history:
### Version Representation
Loro uses two ways to represent versions:
1. **Version Vector**: A map from peer ID to counter
```typescript
const doc = new LoroDoc();
// Get current version vector
const vv = doc.version();
// Get oplog version vector (latest known version)
const oplogVv = doc.oplogVersion();
```
2. **Frontiers**: A list of operation IDs that represent the latest operations from each peer. This is compacter than version vector. In most of the cases, it only has 1 element.
```typescript
const doc = new LoroDoc();
doc.setPeerId("0");
doc.getMap("map").set("text", "Hello");
// Get current frontiers
const frontiers = doc.frontiers();
// Get oplog frontiers (latest known version)
const oplogFrontiers = doc.oplogFrontiers(); // { "0": 0 }
```
### Checkout and Time Travel
You can navigate through document history using checkout:
```typescript
const doc = new LoroDoc();
// Save current version
const frontiers = doc.frontiers();
const text = doc.getText("text");
// Make some changes
text.insert(0, "Hello World!");
// Checkout to previous version
doc.checkout(frontiers);
// Return to latest version
doc.checkoutToLatest();
// or
doc.attach();
```
Note: After checkout, the document enters "detached" mode. In this mode:
- The document is not editable by default
- Import operations are recorded but not applied to the document state
- You need to call `attach()` or `checkoutToLatest()` to go back to the latest version and make it editable again
### Detached Mode
The document enters "detached" mode after a `checkout` operation or when explicitly calling `doc.detach()`. In detached mode, the document state is not synchronized with the latest version in the OpLog.
```typescript
const doc = new LoroDoc();
// Check if document is in detached mode
console.log(doc.isDetached()); // false
// Explicitly detach the document
doc.detach();
console.log(doc.isDetached()); // true
// Return to attached mode
doc.attach();
console.log(doc.isDetached()); // false
```
By default, editing is disabled in detached mode. However, you can enable it:
```typescript
const doc = new LoroDoc();
// Enable editing in detached mode
doc.setDetachedEditing(true);
console.log(doc.isDetachedEditingEnabled()); // true
```
#### Key Behaviors in Detached Mode
1. **Import Operations**
- Operations imported via `doc.import()` are recorded in the OpLog
- These operations are not applied to the document state until checkout
```typescript
const oldDoc = new LoroDoc();
oldDoc.getMap("map").set("name", "John");
const updates = oldDoc.export({ mode: "update" });
const doc = new LoroDoc();
// In detached mode
doc.import(updates); // Updates are stored but not applied
doc.checkoutToLatest(); // Now updates are applied
```
2. **Version Management**
- Each checkout uses a different PeerID to prevent conflicts
- The document maintains two version states:
```typescript
const doc = new LoroDoc();
// Current state version
const stateVersion = doc.version();
// Latest known version in OpLog
const latestVersion = doc.oplogVersion();
```
3. **Forking**
- You can create a new document at a specific version:
```typescript
const doc = new LoroDoc();
doc.setPeerId("0");
doc.getText("text").insert(0, "Hello");
// Fork at current frontiers
const forkedDoc = doc.fork();
// Or fork at specific frontiers
const forkedAtVersion = doc.forkAt([{ peer: "0", counter: 1 }]);
console.log(forkedAtVersion.getText("text").toString()); // "He"
```
#### Common Use Cases
1. **Time Travel and History Review**
```typescript no_run
const doc = new LoroDoc();
// Save current version
const frontiers = doc.frontiers();
// Make changes
text.insert(0, "New content");
// Review previous version
doc.checkout(frontiers);
// Return to latest version
doc.checkoutToLatest();
```
2. **Branching**
```typescript no_run
const doc = new LoroDoc();
// Enable detached editing
doc.setDetachedEditing(true);
// Create a branch
const branch = doc.fork();
// Make changes in branch
const branchText = branch.getText("text");
branchText.insert(0, "Branch changes");
```
## Subscription and Sync
### Local Updates Subscription
Subscribe to local changes for syncing between peers:
```typescript
const doc = new LoroDoc();
// Subscribe to local updates
const unsubscribe = doc.subscribeLocalUpdates((updates) => {
// Send updates to other peers
otherDoc.import(updates);
});
// Later, unsubscribe when needed
unsubscribe();
```
### Document Events
Subscribe to all document changes. The event may be triggered by local operations, importing updates, or switching to another version.
```typescript
const doc = new LoroDoc();
doc.subscribe((event: LoroEventBatch) => {
console.log("Event triggered by:", event.by); // "local" | "import" | "checkout"
console.log("Event origin:", event.origin);
for (const e of event.events) {
console.log("Target container:", e.target);
console.log("Path:", e.path);
console.log("Changes:", e.diff);
}
});
```
### Container-specific Events
Subscribe to changes in specific containers:
```typescript
const doc = new LoroDoc();
const text = doc.getText("text");
text.subscribe((event: LoroEventBatch) => {
// Handle text-specific changes
console.log("Text changed:", event);
});
const list = doc.getList("list");
list.subscribe((event: LoroEventBatch) => {
// Handle list-specific changes
console.log("List changed:", event);
});
```
## Advanced Features
### Cursor Support
Loro provides stable cursor position tracking that remains valid across concurrent edits:
```typescript
const doc = new LoroDoc();
const text = doc.getText("text");
text.insert(0, "123");
// Get cursor at position with side (-1, 0, or 1)
const cursor = text.getCursor(0, 0);
if (cursor) {
// Get current cursor position
const pos = doc.getCursorPos(cursor);
console.log(pos.offset); // Current position
console.log(pos.side); // Cursor side
// Cursor position updates automatically with concurrent edits
text.insert(0, "abc");
const newPos = doc.getCursorPos(cursor);
console.log(newPos.offset); // Position updated
}
```
### Change Tracking
Track and analyze document changes:
```typescript
const doc = new LoroDoc();
doc.setPeerId("1");
doc.getText("text").insert(0, "Hello");
doc.commit();
// Get number of changes and operations
console.log(doc.changeCount()); // Number of changes
console.log(doc.opCount()); // Number of operations
// Get all changes
const changes = doc.getAllChanges();
for (const [peer, peerChanges] of changes.entries()) {
for (const change of peerChanges) {
console.log("Change:", {
peer: change.peer,
counter: change.counter,
lamport: change.lamport,
timestamp: change.timestamp,
message: change.message
});
}
}
// Get specific change
const changeId = { peer: "1", counter: 0 };
const change = doc.getChangeAt(changeId);
// Get operations in a change
const ops = doc.getOpsInChange(changeId);
// Track change ancestors
doc.travelChangeAncestors([changeId], (change) => {
console.log("Ancestor change:", change);
return true; // continue traversal
});
// Get modified containers in a change
const modifiedContainers = doc.getChangedContainersIn(changeId, 1);
```
### Advanced Import/Export
Loro supports various import and export modes:
```typescript
// Export modes
const doc = new LoroDoc();
const previousVersion = doc.version();
doc.getText("text").insert(0, "Hello");
const snapshot = doc.export({ mode: "snapshot" });
const updates = doc.export({ mode: "update", from: previousVersion });
const shallowSnapshot = doc.export({
mode: "shallow-snapshot",
frontiers: doc.oplogFrontiers()
});
const rangeUpdates = doc.export({
mode: "updates-in-range",
spans: [{ id: { peer: "1", counter: 0 }, len: 10 }]
});
// Import with status tracking
const status = doc.import(updates);
console.log("Successfully imported:", status.success);
console.log("Pending imports:", status.pending);
// Batch import
const status2 = doc.importBatch([snapshot, updates]);
// Import JSON updates
const jsonStatus = doc.importJsonUpdates({
schema_version: 1,
start_version: new Map([["1", 0]]),
peers: ["1"],
changes: []
});
```
### Path and Value Access
Access document content through paths:
```typescript
const doc = new LoroDoc();
// Get value or container by path
const value = doc.getByPath("map/key");
const container = doc.getByPath("list");
// Get path to a container
const path = doc.getPathToContainer("cid:root-list:List");
// JSONPath support
const results = doc.JSONPath("$.list[*]");
// Get shallow values (container IDs instead of resolved values)
const shallowDoc = doc.getShallowValue();
console.log(shallowDoc); // { list: 'cid:root-list:List', ... }
// Custom JSON serialization
const json = doc.toJsonWithReplacer((key, value) => {
if (value instanceof LoroText) {
return value.toDelta();
}
return value;
});
```
### Debug and Metadata
Access debug information and metadata:
```typescript
import { setDebug, LoroDoc, decodeImportBlobMeta } from "loro-crdt";
const doc = new LoroDoc();
// Enable debug info
setDebug();
const blob = doc.export({ mode: "update" });
// Get import blob metadata
const metadata = decodeImportBlobMeta(blob, true);
console.log({
startTimestamp: metadata.startTimestamp,
endTimestamp: metadata.endTimestamp,
mode: metadata.mode,
changeNum: metadata.changeNum
});
```
# FILE: pages/docs/index.mdx
# Introduction to Loro
It is well-known that syncing data/building realtime collaborative apps is
challenging, especially when devices can be offline or part of a peer-to-peer
network. Loro simplifies this process for you.
We want to provide better DevTools to make building
[local-first apps](https://www.inkandswitch.com/local-first/) easy and
enjoyable.
Loro uses [Conflict-free Replicated Data Types (CRDTs)](/docs/concepts/crdt) to
resolve parallel edits. By utilizing Loro's data types, your applications can be
made collaborative and keep the editing history with low overhead.
After you model your app state by Loro, syncing is simple:
```ts
const docA = new LoroDoc();
const docB = new LoroDoc();
docA.getText("text").insert(0, "Hello world!");
docB.getText("text").insert(0, "Hi!");
// Assume docA and docB are two Loro documents in two different devices
const bytesA = docA.export({ mode: "update" });
// send bytes to docB by any method
docB.import(bytesA);
// docB is now updated with all the changes from docA
const bytesB = docB.export({ mode: "update" });
// send bytes to docA by any method
docA.import(bytesB);
// docA and docB are now in sync, they have the same state
```
Saving your app state is also straightforward:
```ts
const doc = new LoroDoc();
doc.getText("text").insert(0, "Hello world!");
const bytes = doc.export({ mode: "snapshot" });
// Bytes can be saved to local storage, database, or sent over the network
```
Loading your app state:
```ts no_run
const newDoc = new LoroDoc();
newDoc.import(bytes);
```
Loro also makes it easy for you to time travel the history and add version
control to your app. [Learn more about time travel](/docs/tutorial/time_travel).
```ts no_run
doc.checkout(version); // Checkout the doc to the given version
```
Loro is compatible with the JSON schema. If you can model your app state with
JSON, you probably can sync your app with Loro. Because we need to adhere to the
JSON schema, using a number as a key in a Map is not permitted, and cyclic links
should be avoided.
```ts no_run
doc.toJSON(); // Get the JSON representation of the doc
```
import { Cards } from "nextra/components";
<>
# Differences from other CRDT libraries
The table below summarizes Loro's features, which may not be present in other
CRDT libraries.
| Features/Important design decisions | Loro | Diamond-types | Yjs | Automerge |
| :-------------------------------------------------------------------------- | :---- | :------------ | :--------- | :---------- |
| [Event Graph Walker](https://loro.dev/docs/advanced/replayable_event_graph) | ✅ | ✅ Inventor | ❌ | ❌ |
| Rich Text CRDT | ✅ | ❌ | ❌ | ✅ |
| [Movable Tree](https://ieeexplore.ieee.org/document/9563274) | ✅ | ❌ | ❌ | ❌ Inventor |
| [Movable List](https://loro.dev/docs/tutorial/list) | ✅ | ❌ | ❌ | ❌ Inventor |
| Time Travel | ✅ | ✅ | ✅[1] | ✅ |
| [Fugue](https://arxiv.org/abs/2305.00583) / Maximal non-interleaving | ✅ | ✅ | ❌ | ❌ |
| JSON Types | ✅ | ❓ | ✅ | ✅ |
| Merging Elements in Memory by Run Length Encoding | ✅ | ✅ | ✅ Inventor | ❌ |
| Byzantine-fault-tolerance | ❌ | ❌ | ❌ | ✅ |
| Version Control | ✅ | ❌ | ❌ | ✅ |
- [1] Unlike others, Yjs requires users to store a version vector and a delete
set, enabling time travel back to a specific point.
- [Fugue](https://arxiv.org/abs/2305.00583) is a text/list CRDTs that can
minimize the chance of the interleaving anomalies.
# FILE: pages/docs/concepts/when_not_crdt.md
---
keywords: "crdt, crdts, difficulty, synchronization"
description: "When Not to Rely on CRDTs"
---
# When Not to Rely on CRDTs
If there are no concurrent operations, CRDTs and other solutions don't differ
much. In handling concurrent editing, CRDTs use predefined algorithms to ensure
strong eventual consistency (i.e., if multiple people receive the same set of
Ops, they will see the same content). Furthermore, some CRDT algorithms make the
merge results as close to user expectations as possible.
However, its problems include:
- Difficulty in maintaining user-defined invariants. For instance, in a meeting
room reservation scenario, a room can only be booked once. But if CRDTs
represent the reservation status, multiple people booking the same room
simultaneously may all see a successful operation, but in reality, only one
person will have the reservation after synchronization. Thus, other systems
are needed to maintain these invariants.
- Automatic merged results of concurrent edits may violate the schema. For
example, automatically merged code edits may not comply with the code's syntax
structure, requiring human intervention to adjust. The requirement that a
`
` can only contain one `
` might also be violated in
concurrent editing (two people inserting a new `
` concurrently). For
such scenarios, this issue can be ignored, or `
` can be represented
differently (changing `
` from a List element to a Register on a
separate Map can prevent this problem).
CRDTs alone may not solve all problems in these scenarios. If maintaining these
invariants is crucial for your application, you might need to combine CRDTs with
centralized solutions for synchronization. Alternatively, you can implement an
additional layer on top of the CRDT that derives a view conforming to the
correct schema or maintaining the required invariants, using the CRDT state as
the source of truth. This approach can ensure consistency across clients, but
its suitability depends on your specific use case and user expectations.
When merging edits from a peer that has been offline for a long time, extensive
changes may result in an automatically merged state that doesn't meet
expectations. If your application cannot tolerate such merge results, you
shouldn't rely solely on CRDT's automatic merging. Instead, detect these
situations of long-term concurrent edits and provide a diff view to users,
allowing them to resolve conflicts manually. Fortunately, Loro's internal
architecture supports implementing such manual conflict resolution logic.
# FILE: pages/docs/concepts/crdt.mdx
import Image from "next/image";
# What are CRDTs
CRDT (conflict-free replicated data type) is a data structure that can be
replicated across multiple computers in a network, where replicas can be updated
independently and in parallel, without the need for coordination between
replicas, and with a guarantee that no conflicts will occur.
CRDT is often used in collaborative software, such as scenarios where multiple
users need to work together to edit/read a shared document, database, or state.
It can be used in database software, text editing software, chat software, etc.
# What problems does CRDT solve?
For example, a scenario where multiple users edit the same document online at
the same time.
This scenario requires that each user sees the same content, even after
concurrent edits by different users (e.g. two users changing the title at the
same time), which is known as **consistency**. (To be precise, CRDT satisfies
the eventual consistency, see below for more details)
Users can use CRDT even when they are offline. They can be back on sync with
others the network is restored. It also supports collaboratively editing with
other users via P2P. It is known as **partitioning fault tolerance**. This
allows CRDT to support **decentralized** applications very well: synchronization
can be done even without a centralized server.
# The Emergence of CRDTs
The formal concept of Conflict-free Replicated Data Types (CRDTs) was first
introduced in Marc Shapiro's 2011 paper,
[Conflict-Free Replicated Data Types](https://inria.hal.science/hal-00932836/file/CRDTs_SSS-2011.pdf).
However, it can be argued that the groundwork for CRDTs was laid earlier, in the
2006 study [Woot](https://doi.org/10.1145%2F1180875.1180916): An Algorithm for
Collaborative Real-time Editing. The primary motivation behind developing CRDTs
was to address the challenges associated with designing conflict resolution
mechanisms for eventual consistency. Prior to the introduction of CRDTs,
literature on the subject offered limited guidance, and ad hoc solutions were
often prone to errors. Consequently, Shapiro's paper presented a simple,
theoretically sound approach to achieving eventual consistency through the use
of CRDTs.
(PS: Marc Shapiro actually wrote a paper
[Designing a commutative replicated data type](https://hal.inria.fr/inria-00177693v2/document)
in 2007. In 2011, he reworded commutative into conflict-free in 2011, expanding
the definition of commutative to include state-based CRDT)
According to [CAP theorem](https://en.wikipedia.org/wiki/CAP_theorem), it is
impossible for a distributed computing system to perfectly satisfy the following
three points at the same time.
- _Consistency_: each read receives the result of the most recent write or
reports an error; it behaves as if it is accessing the same piece of data
- _Availability_: every request gets a non-error response - but there is no
guarantee that the data fetched is up-to-date
- _Partition tolerance_: the ability of a distributed system to continue
functioning properly even when communication between its different components
is lost or delayed, resulting in a partition or network failure.
If the system cannot achieve data consistency within the time limit, it means
that partitioning has occurred and a choice must be made between C and A for the
current operation, so "perfect consistency" is in conflict with "perfect
availability".
CRDTs do not provide "perfect consistency", but
Strong Eventual Consistency (SEC). This
means that site A may not immediately reflect the state changes from site B, but
when A and B synchronize their messages they both regain consistency and do not
need to resolve potential conflicts (CRDT mathematically prevents conflicts from
occurring). _Strong Eventual Consistency_ does not conflict with _Availability_
and _Partition Tolerance_. CRDTs provide a good CAP tradeoff.
_CRDT satisfies A + P + Eventual Consistency; a good tradeoff under CAP_
(PS: In 2012, Eric Brewer, author of the CAP theorem, wrote an article
[CAP Twelve Years Later: How the "Rules" Have Changed](https://www.infoq.com/articles/cap-twelve-years-later-how-the-rules-have-changed/),
explaining that the description of the "two out of three CAP features" is
actually misleading, and that the CAP actually prohibits perfect availability
and consistency in a very small part of the design space, i.e., in the presence
of partitions; in fact, the design of the tradeoff between C and A is very
flexible. A good example is CRDT.)
# A simple CRDT case
We can use a few simple examples to get a general idea of how CRDTs achieve
**Strong Eventual Consistency**.
> **Grow-only Counter**
How can we count the number of times something happens in a distributed system
without locking?
- Let each copy increments only its own counter => no locking synchronization &
no conflicts
- Each copy keeps the count values of all other copies at the same time
- Number of occurrences = sum of count values of all copies
- Since each copy only updates its own count and does not conflict with other
counters, this type satisfies consistency after message synchronization
> **Grow-only Set**
- The elements in a Grow-only Set can only be increased and not decreased
- To merge two such states, you only need to do a merge set
- This type satisfies consistency after message synchronization because there
are no conflicting operations since the elements only grow and do not
decrease.
Both of these methods are CRDTs, and they both satisfy the following properties
- They can both be updated independently and concurrently, without coordination
(locking) between replicas
- There is no possibility of conflict between multiple updates
- Final consistency can always be guaranteed
# Introduction to the Principle
There are two types of CRDTs: Op-based CRDTs and State-based CRDTs. This article
focuses on the concept of Op-based CRDTs.
Op-based CRDTs operate on the principle that if two users perform identical
sequences of operations, the final state of the document should also be
identical. To achieve this, each user saves all the operations performed on the
data (Operations) and synchronizes these Operations with other users to ensure a
consistent final state. A critical challenge in this approach is ensuring the
order of Operations remains consistent, especially when parallel modification
operations occur. To address this, Op-based CRDTs require that all possible
parallel Operations be commutative, satisfying the final consistency
requirement.
# Comparison of CRDT and OT
Both CRDT and [Operation Transformation(OT)][ot] can be used in online
collaborative applications, with the following differences
| OT | CRDT |
| :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | :------------------------------------------------------------------------------------ |
| OT relies on a centralized server for collaboration; [it is extremely difficult to make it work in a distributed environment](https://digitalfreepen.com/2018/01/04/operational-transform-hard.html) | CRDT algorithm can be used to synchronize data through a P2P approach synchronization |
| The earliest paper on OT was presented in 1989 | The earliest paper on CRDT appeared in 2006 |
| The OT algorithm is designed with higher complexity to ensure consistency | The CRDT algorithm is designed to be simpler to ensure consistency |
| It is easier to design OT to preserve user intent | It is more difficult to design a CRDT algorithm that preserves user intent |
| OT does not affect document size | CRDT documents are larger than the original document data |
[a highly-available move operation for replicated trees]:
https://martin.kleppmann.com/papers/move-op.pdf
[moving elements in list crdts]:
https://martin.kleppmann.com/papers/list-move-papoc20.pdf
[interleaving anomalies in collaborative text editors]:
https://martin.kleppmann.com/papers/interleaving-papoc19.pdf
[conflict-free replicated data types]: https://readpaper.com/paper/1516319412
[5000x faster crdts: an adventure in optimization]:
https://josephg.com/blog/crdts-go-brrr/
[json crdt]: https://arxiv.org/abs/1608.03960
[yata]:
https://www.researchgate.net/publication/310212186_Near_Real-Time_Peer-to-Peer_Shared_Editing_on_Extensible_Data_Types
[yjs]: https://github.com/yjs/yjs
[loro]: https://loro.dev
[automerge]: https://github.com/automerge/automerge
[half grid]: https://zh.wikipedia.org/wiki/%E5%8D%8A%E6%A0%BC
[ot]: https://en.wikipedia.org/wiki/Operational_transformation
[crdts and the quest for distributed consistency]:
https://www.infoq.com/presentations/crdt-distributed-consistency/
# FILE: pages/docs/concepts/choose_crdt_type.md
---
keywords: "crdt, crdts, application, data model, concurrent, conflict"
description: "Loro supports many CRDT types. You need to choose the correct type to model the data based on the algorithm semantics."
---
# How to Choose the Right CRDT Types
Choosing the right CRDT type means understanding their potential behavior in concurrent editing situations and judging whether such behavior is acceptable for your application.
For text, you can choose to represent it directly as a Value on a Map (where the Value can be a string type), or you can choose to use a Text CRDT. For the former, each operation completely overwrites the previous one, so if A and B make concurrent modifications, only one of their edits will remain in the end. For the latter, the CRDT will retain all concurrent insertions by both people, and concurrent deletions are combined to complete the deletion. For most text box edits, you might prefer the latter. But for something like editing a link, you might want to use the former.
For Lists, concurrently removing the same element and inserting a single element creates a new element, differentiating from the semantics of Set on a Map (we may consider providing a list set method in the future). For representing coordinates, it's better to use a Map rather than a List. If you represent coordinates as [x, y], and the A client updates the y coordinate by deleting the y element and reinserting a new y_a, and the B client also deletes y and inserts y_b, then after merging, the array will become [x, y_a, y_b], which does not conform to the user's schema. Using a Map can prevent this problem.
# FILE: pages/docs/performance/docsize.md
---
keywords: "loro, yjs, automerge, diamond-type, benchmark, document size, crdt"
description: "Comparing the document size of Loro and popular CRDTs"
---
# Document Size
In this benchmark, we use the Automerge paper dataset.
Source: https://github.com/automerge/automerge-perf/tree/master/edit-by-index
The dataset consists of:
- 182,315 single-character insertion operations
- 77,463 single-character deletion operations
- A total of 259,778 operations
- 104,852 characters in the final document
The first line of settings in the table below indicates configurations without
`gc` and `compress`.
| Settings | loro-snapshot | loro-update | diamond-type | yrs | automerge |
| -------------------- | ------------- | ----------- | ------------ | ------ | --------- |
| Default (no options) | 273561 | 251352 | 281042 | 226973 | 292742 |
| gc | x | x | 203564 | 159921 | x |
| compress | 132459 | 105724 | 150723 | 91777 | 129062 |
| gc & compress | x | x | 106242 | 71033 | x |
> The `x` in the table above signifies that the corresponding setting is not supported.
Loro also supports a shallow snapshot encoding format with gc capabilities by truncating the history. For details, see [the doc](/docs/tutorial/encoding).
If truncated from the latest version, the result will be:
| Settings | loro-shallow-snapshot |
| -------- | --------------------- |
| Default | 63352 |
| compress | 54517 |
# FILE: pages/docs/performance/native.mdx
# Native Benchmarks
[This native benchmark](https://github.com/zxch3n/crdt-bench-native) is based on
the Rust implementation of each crate.
- Conducted on a M2 Max CPU, dated 2024-10-18.
- The tasks with names starting with `automerge` use the automerge paper
dataset.
- In this benchmark, compression is disabled for both automerge and loro.
- Diamond-type doesn't support the list type yet.
| Tasks | automerge | loro | diamond-type | yrs |
| :---------------------- | :-------- | :-------- | :----------- | :-------- |
| automerge - apply | 450.91 ms | 88.19 ms | 15.63 ms | 4238.8 ms |
| automerge - decode time | 506.30 ms | 0.189 ms | 2.19 ms | 3.82 ms |
| automerge - encode time | 17.65 ms | 0.416 ms | 1.15 ms | 0.759 ms |
| concurrent list inserts | 81.07 ms | 130.63 ms | 57.08 ms | 13.95 ms |
| list_random_insert_1k | 296.64 ms | 12.15 ms | 4.32 ms | 5.83 ms |
# FILE: pages/docs/performance/index.md
---
keywords: "loro, yjs, automerge, benchmark, memory, crdt"
description: "CRDT benchmarks, comparing the performance of Loro and popular CRDTs"
---
# JS/WASM Benchmarks
> The primary role of these benchmarks should be to serve as indicators of the absence of performance pitfalls rather than as measures of which project is superior. This is because different projects consistently make different trade-offs. It is inaccurate to claim that Project A is superior to Project B simply because A performs better in certain benchmarks, while Project B may excel in other areas by a significant margin.
The benchmark can be reproduced using the [crdt-benchmarks](https://github.com/zxch3n/crdt-benchmarks) repo.
- The benchmarks were performed on MacBook Pro M1 2020 with 16GB RAM
- loro-old is the version of loro on 2023-11-10, it's compiled from
[this commit](https://github.com/loro-dev/loro/tree/c1613ee680c6a4757e55fcda76e4f5f627daeb56).
Loro has undergone numerous changes since then, particularly in terms of
[encoding schema](https://github.com/loro-dev/loro/pull/219), shifting from a
performance-focused version to one that prioritizes compatibility. Because we
want Loro to have good backward and forward compatibility after reaching
version 1.0, we have adopted a more easily extensible encoding method. It is
slower than the encoding method used in the `loro-old` version, but it better
ensures our ability to iterate quickly after reaching version 1.0 without
introducing breaking changes.
- There is a more exchaustive benchmark at the bottom that only runs benchmarks
on Yjs.
- Automerge can perform the `B4` benchmark in about 1 second (see `time`) if all
changes are applied within a single `change` transaction. However, our
benchmarks test individual edits that generate individual update events as
this more closely simulates actual user behavior. See #21
- Note that `parseTime` is significantly higher with `automerge` and `loro` when
the initial document is not empty (e.g. when syncing content from a remote
server).
- Loro and Automerge can store a complete DAG of editing history for each
keystroke, but Yjs requires additional storage for a Version Vector + Delete
Set for each version saved, which incurs significant extra overhead beyond the
document size reported.
Benchmark setup
#### B1: No conflicts
Simulate two clients. One client modifies a text object and sends update
messages to the other client. We measure the time to perform the task (`time`),
the amount of data exchanged (`avgUpdateSize`), the size of the encoded document
after the task is performed (`docSize`), the time to parse the encoded document
(`parseTime`), and the memory used to hold the decoded document (`memUsed`).
#### B2: Two users producing conflicts
Simulate two clients. Both start with a synced text object containing 100
characters. Both clients modify the text object in a single transaction and then
send their changes to the other client. We measure the time to sync concurrent
changes into a single client (`time`), the size of the update messages
(`updateSize`), the size of the encoded document after the task is performed
(`docSize`), the time to parse the encoded document (`parseTime`), and the
memory used to hold the decoded document (`memUsed`).
#### B3: Many conflicts
Simulate `√N` concurrent actions. We measure the time to perform the task and
sync all clients (`time`), the size of the update messages (`updateSize`), the
size of the encoded document after the task is performed (`docSize`), the time
to parse the encoded document (`parseTime`), and the memory used to hold the
decoded document (`memUsed`). The logarithm of `N` was chosen because `√N`
concurrent actions may result in up to `√N^2 - 1` conflicts (apply action 1: 0
conflict; apply action2: 1 conflict, apply action 2: 2 conflicts, ..).
#### B4: Real-world editing dataset
Replay a real-world editing dataset. This dataset contains the
character-by-character editing trace of a large-ish text document, the LaTeX
source of this paper: https://arxiv.org/abs/1608.03960
Source: https://github.com/automerge/automerge-perf/tree/master/edit-by-index
- 182,315 single-character insertion operations
- 77,463 single-character deletion operations
- 259,778 operations totally
- 104,852 characters in the final document
We simulate one client replaying all changes and storing each update. We measure
the time to replay the changes and the size of all update messages
(`updateSize`), the size of the encoded document after the task is performed
(`docSize`), the time to encode the document (`encodeTime`), the time to parse
the encoded document (`parseTime`), and the memory used to hold the decoded
document in memory (`memUsed`).
##### [B4 x 100] Real-world editing dataset 100 times
Replay the [B4] dataset one hundred times. The final document has a size of over
10 million characters. As comparison, the book "Game of Thrones: A Song of Ice
and Fire" is only 1.6 million characters long (including whitespace).
- 18,231,500 single-character insertion operations
- 7,746,300 single-character deletion operations
- 25,977,800 operations totally
- 10,485,200 characters in the final document
| N = 6000 | yjs | ywasm | loro | loro-old | automerge | automerge-wasm |
| :----------------------------------------------------------------------- | ---------------: | --------------: | ---------------: | ---------------: | ---------------: | --------------: |
| Version | 13.6.15 | 0.17.4 | 1.0.0-beta.2 | 0.15.2 | 2.1.10 | 0.9.0 |
| Bundle size | 84,017 bytes | 938,991 bytes | 2,919,363 bytes | 1,583,094 bytes | 1,696,176 bytes | 1,701,136 bytes |
| Bundle size (gzipped) | 25,105 bytes | 284,616 bytes | 894,460 bytes | 592,039 bytes | 591,049 bytes | 594,071 bytes |
| [B1.1] Append N characters (time) | 141 ms | 171 ms | 164 ms | 115 ms | 279 ms | 110 ms |
| [B1.1] Append N characters (avgUpdateSize) | 27 bytes | 27 bytes | 88 bytes | 58 bytes | 121 bytes | 121 bytes |
| [B1.1] Append N characters (encodeTime) | 1 ms | 0 ms | 3 ms | 0 ms | 5 ms | 6 ms |
| [B1.1] Append N characters (docSize) | 6,031 bytes | 6,031 bytes | 12,382 bytes | 6,219 bytes | 3,992 bytes | 3,992 bytes |
| [B1.1] Append N characters (memUsed) | 0 B | 0 B | 0 B | 0 B | 0 B | 0 B |
| [B1.1] Append N characters (parseTime) | 22 ms | 65 ms | 28 ms | 28 ms | 59 ms | 61 ms |
| [B1.2] Insert string of length N (time) | 1 ms | 1 ms | 0 ms | 0 ms | 18 ms | 14 ms |
| [B1.2] Insert string of length N (avgUpdateSize) | 6,031 bytes | 6,031 bytes | 6,089 bytes | 6,088 bytes | 6,201 bytes | 6,201 bytes |
| [B1.2] Insert string of length N (encodeTime) | 0 ms | 0 ms | 0 ms | 0 ms | 2 ms | 2 ms |
| [B1.2] Insert string of length N (docSize) | 6,031 bytes | 6,031 bytes | 12,313 bytes | 6,146 bytes | 3,974 bytes | 3,974 bytes |
| [B1.2] Insert string of length N (parseTime) | 27 ms | 47 ms | 27 ms | 26 ms | 29 ms | 30 ms |
| [B1.3] Prepend N characters (time) | 118 ms | 30 ms | 111 ms | 47 ms | 272 ms | 73 ms |
| [B1.3] Prepend N characters (avgUpdateSize) | 27 bytes | 26 bytes | 87 bytes | 57 bytes | 116 bytes | 116 bytes |
| [B1.3] Prepend N characters (encodeTime) | 2 ms | 0 ms | 2 ms | 1 ms | 4 ms | 4 ms |
| [B1.3] Prepend N characters (docSize) | 6,041 bytes | 6,040 bytes | 15,414 bytes | 6,165 bytes | 3,988 bytes | 3,988 bytes |
| [B1.3] Prepend N characters (parseTime) | 45 ms | 38 ms | 27 ms | 37 ms | 73 ms | 47 ms |
| [B1.4] Insert N characters at random positions (time) | 128 ms | 101 ms | 113 ms | 51 ms | 268 ms | 89 ms |
| [B1.4] Insert N characters at random positions (avgUpdateSize) | 29 bytes | 29 bytes | 88 bytes | 58 bytes | 121 bytes | 121 bytes |
| [B1.4] Insert N characters at random positions (encodeTime) | 3 ms | 0 ms | 2 ms | 1 ms | 6 ms | 5 ms |
| [B1.4] Insert N characters at random positions (docSize) | 29,571 bytes | 29,554 bytes | 39,040 bytes | 29,503 bytes | 24,743 bytes | 24,743 bytes |
| [B1.4] Insert N characters at random positions (parseTime) | 46 ms | 30 ms | 27 ms | 26 ms | 73 ms | 64 ms |
| [B1.5] Insert N words at random positions (time) | 149 ms | 264 ms | 112 ms | 54 ms | 539 ms | 291 ms |
| [B1.5] Insert N words at random positions (avgUpdateSize) | 36 bytes | 36 bytes | 95 bytes | 65 bytes | 131 bytes | 131 bytes |
| [B1.5] Insert N words at random positions (encodeTime) | 6 ms | 1 ms | 3 ms | 1 ms | 14 ms | 15 ms |
| [B1.5] Insert N words at random positions (docSize) | 87,868 bytes | 87,924 bytes | 135,713 bytes | 98,901 bytes | 96,203 bytes | 96,203 bytes |
| [B1.5] Insert N words at random positions (parseTime) | 50 ms | 33 ms | 27 ms | 33 ms | 101 ms | 111 ms |
| [B1.6] Insert string, then delete it (time) | 1 ms | 0 ms | 2 ms | 1 ms | 39 ms | 31 ms |
| [B1.6] Insert string, then delete it (avgUpdateSize) | 6,053 bytes | 6,052 bytes | 6,189 bytes | 6,179 bytes | 6,338 bytes | 6,338 bytes |
| [B1.6] Insert string, then delete it (encodeTime) | 0 ms | 0 ms | 0 ms | 0 ms | 3 ms | 2 ms |
| [B1.6] Insert string, then delete it (docSize) | 6,040 bytes | 6,039 bytes | 6,409 bytes | 6,145 bytes | 3,993 bytes | 3,993 bytes |
| [B1.6] Insert string, then delete it (parseTime) | 29 ms | 29 ms | 26 ms | 28 ms | 52 ms | 44 ms |
| [B1.7] Insert/Delete strings at random positions (time) | 153 ms | 112 ms | 136 ms | 60 ms | 423 ms | 212 ms |
| [B1.7] Insert/Delete strings at random positions (avgUpdateSize) | 31 bytes | 31 bytes | 100 bytes | 61 bytes | 135 bytes | 135 bytes |
| [B1.7] Insert/Delete strings at random positions (encodeTime) | 3 ms | 1 ms | 3 ms | 1 ms | 13 ms | 11 ms |
| [B1.7] Insert/Delete strings at random positions (docSize) | 41,917 bytes | 41,592 bytes | 81,700 bytes | 51,470 bytes | 59,281 bytes | 59,281 bytes |
| [B1.7] Insert/Delete strings at random positions (parseTime) | 53 ms | 41 ms | 25 ms | 27 ms | 80 ms | 78 ms |
| [B1.8] Append N numbers (time) | 140 ms | 59 ms | 155 ms | 73 ms | 448 ms | 113 ms |
| [B1.8] Append N numbers (avgUpdateSize) | 32 bytes | 32 bytes | 94 bytes | 62 bytes | 125 bytes | 125 bytes |
| [B1.8] Append N numbers (encodeTime) | 2 ms | 0 ms | 2 ms | 2 ms | 6 ms | 6 ms |
| [B1.8] Append N numbers (docSize) | 35,641 bytes | 35,634 bytes | 71,568 bytes | 47,625 bytes | 26,985 bytes | 26,985 bytes |
| [B1.8] Append N numbers (parseTime) | 32 ms | 43 ms | 31 ms | 29 ms | 76 ms | 67 ms |
| [B1.9] Insert Array of N numbers (time) | 3 ms | 3 ms | 13 ms | 9 ms | 47 ms | 22 ms |
| [B1.9] Insert Array of N numbers (avgUpdateSize) | 35,653 bytes | 35,657 bytes | 35,715 bytes | 35,717 bytes | 31,199 bytes | 31,199 bytes |
| [B1.9] Insert Array of N numbers (encodeTime) | 1 ms | 0 ms | 2 ms | 1 ms | 4 ms | 2 ms |
| [B1.9] Insert Array of N numbers (docSize) | 35,653 bytes | 35,657 bytes | 71,578 bytes | 47,646 bytes | 26,953 bytes | 26,953 bytes |
| [B1.9] Insert Array of N numbers (parseTime) | 43 ms | 29 ms | 31 ms | 29 ms | 56 ms | 44 ms |
| [B1.10] Prepend N numbers (time) | 157 ms | 31 ms | 125 ms | 53 ms | 484 ms | 159 ms |
| [B1.10] Prepend N numbers (avgUpdateSize) | 32 bytes | 32 bytes | 93 bytes | 61 bytes | 120 bytes | 120 bytes |
| [B1.10] Prepend N numbers (encodeTime) | 3 ms | 1 ms | 3 ms | 1 ms | 6 ms | 6 ms |
| [B1.10] Prepend N numbers (docSize) | 35,669 bytes | 35,665 bytes | 76,773 bytes | 47,645 bytes | 26,987 bytes | 26,987 bytes |
| [B1.10] Prepend N numbers (parseTime) | 53 ms | 33 ms | 48 ms | 39 ms | 65 ms | 67 ms |
| [B1.11] Insert N numbers at random positions (time) | 160 ms | 121 ms | 125 ms | 56 ms | 517 ms | 121 ms |
| [B1.11] Insert N numbers at random positions (avgUpdateSize) | 34 bytes | 34 bytes | 94 bytes | 60 bytes | 125 bytes | 125 bytes |
| [B1.11] Insert N numbers at random positions (encodeTime) | 2 ms | 1 ms | 4 ms | 1 ms | 8 ms | 6 ms |
| [B1.11] Insert N numbers at random positions (docSize) | 59,132 bytes | 59,137 bytes | 100,632 bytes | 70,901 bytes | 47,746 bytes | 47,746 bytes |
| [B1.11] Insert N numbers at random positions (parseTime) | 52 ms | 50 ms | 58 ms | 41 ms | 428 ms | 80 ms |
| [B2.1] Concurrently insert string of length N at index 0 (time) | 1 ms | 0 ms | 1 ms | 0 ms | 75 ms | 32 ms |
| [B2.1] Concurrently insert string of length N at index 0 (updateSize) | 6,094 bytes | 6,094 bytes | 6,188 bytes | 9,244 bytes | 9,499 bytes | 9,499 bytes |
| [B2.1] Concurrently insert string of length N at index 0 (encodeTime) | 0 ms | 0 ms | 0 ms | 0 ms | 7 ms | 5 ms |
| [B2.1] Concurrently insert string of length N at index 0 (docSize) | 12,151 bytes | 12,151 bytes | 24,735 bytes | 12,281 bytes | 8,011 bytes | 8,011 bytes |
| [B2.1] Concurrently insert string of length N at index 0 (parseTime) | 28 ms | 34 ms | 30 ms | 27 ms | 60 ms | 48 ms |
| [B2.2] Concurrently insert N characters at random positions (time) | 46 ms | 166 ms | 55 ms | 125 ms | 270 ms | 399 ms |
| [B2.2] Concurrently insert N characters at random positions (updateSize) | 33,420 bytes | 33,444 bytes | 23,779 bytes | 350,337 bytes | 27,476 bytes | 1,093,293 bytes |
| [B2.2] Concurrently insert N characters at random positions (encodeTime) | 2 ms | 1 ms | 4 ms | 1 ms | 6 ms | 11 ms |
| [B2.2] Concurrently insert N characters at random positions (docSize) | 66,808 bytes | 66,852 bytes | 79,937 bytes | 59,358 bytes | 50,686 bytes | 50,704 bytes |
| [B2.2] Concurrently insert N characters at random positions (parseTime) | 67 ms | 69 ms | 27 ms | 27 ms | 51 ms | 95 ms |
| [B2.3] Concurrently insert N words at random positions (time) | 105 ms | 459 ms | 68 ms | 120 ms | 435 ms | 630 ms |
| [B2.3] Concurrently insert N words at random positions (updateSize) | 89,143 bytes | 88,994 bytes | 62,640 bytes | 408,723 bytes | 122,485 bytes | 1,185,202 bytes |
| [B2.3] Concurrently insert N words at random positions (encodeTime) | 7 ms | 2 ms | 7 ms | 3 ms | 28 ms | 35 ms |
| [B2.3] Concurrently insert N words at random positions (docSize) | 178,428 bytes | 178,130 bytes | 268,884 bytes | 197,284 bytes | 185,019 bytes | 191,498 bytes |
| [B2.3] Concurrently insert N words at random positions (parseTime) | 82 ms | 67 ms | 31 ms | 30 ms | 134 ms | 184 ms |
| [B2.4] Concurrently insert & delete (time) | 145 ms | 1,243 ms | 118 ms | 282 ms | 653 ms | 1,311 ms |
| [B2.4] Concurrently insert & delete (updateSize) | 140,984 bytes | 141,122 bytes | 123,725 bytes | 798,123 bytes | 298,810 bytes | 2,395,876 bytes |
| [B2.4] Concurrently insert & delete (encodeTime) | 6 ms | 3 ms | 14 ms | 4 ms | 43 ms | 56 ms |
| [B2.4] Concurrently insert & delete (docSize) | 282,112 bytes | 282,358 bytes | 392,151 bytes | 304,592 bytes | 293,831 bytes | 307,291 bytes |
| [B2.4] Concurrently insert & delete (parseTime) | 105 ms | 73 ms | 34 ms | 31 ms | 185 ms | 269 ms |
| [B3.1] 20√N clients concurrently set number in Map (time) | 54 ms | 60 ms | 27 ms | 32 ms | 1,058 ms | 21 ms |
| [B3.1] 20√N clients concurrently set number in Map (updateSize) | 49,167 bytes | 49,162 bytes | 132,376 bytes | 63,832 bytes | 283,296 bytes | 283,296 bytes |
| [B3.1] 20√N clients concurrently set number in Map (encodeTime) | 3 ms | 1 ms | 16 ms | 1 ms | 9 ms | 12 ms |
| [B3.1] 20√N clients concurrently set number in Map (docSize) | 36,763 bytes | 36,751 bytes | 78,764 bytes | 38,428 bytes | 86,165 bytes | 86,164 bytes |
| [B3.1] 20√N clients concurrently set number in Map (parseTime) | 57 ms | 67 ms | 83 ms | 49 ms | 59 ms | 54 ms |
| [B3.2] 20√N clients concurrently set Object in Map (time) | 55 ms | 62 ms | 27 ms | 40 ms | 1,126 ms | 28 ms |
| [B3.2] 20√N clients concurrently set Object in Map (updateSize) | 85,084 bytes | 85,073 bytes | 171,370 bytes | 99,753 bytes | 398,090 bytes | 325,370 bytes |
| [B3.2] 20√N clients concurrently set Object in Map (encodeTime) | 2 ms | 1 ms | 18 ms | 2 ms | 21 ms | 17 ms |
| [B3.2] 20√N clients concurrently set Object in Map (docSize) | 72,682 bytes | 72,659 bytes | 84,255 bytes | 75,227 bytes | 112,588 bytes | 93,401 bytes |
| [B3.2] 20√N clients concurrently set Object in Map (parseTime) | 73 ms | 68 ms | 83 ms | 48 ms | 68 ms | 59 ms |
| [B3.3] 20√N clients concurrently set String in Map (time) | 124 ms | 61 ms | 63 ms | 73 ms | 1,869 ms | 166 ms |
| [B3.3] 20√N clients concurrently set String in Map (updateSize) | 7,826,229 bytes | 7,826,225 bytes | 7,912,520 bytes | 7,840,917 bytes | 8,063,440 bytes | 8,063,440 bytes |
| [B3.3] 20√N clients concurrently set String in Map (encodeTime) | 56 ms | 5 ms | 70 ms | 23 ms | 59 ms | 61 ms |
| [B3.3] 20√N clients concurrently set String in Map (docSize) | 7,813,826 bytes | 7,813,814 bytes | 241,646 bytes | 7,815,537 bytes | 97,997 bytes | 98,008 bytes |
| [B3.3] 20√N clients concurrently set String in Map (parseTime) | 141 ms | 75 ms | 161 ms | 44 ms | 80 ms | 76 ms |
| [B3.4] 20√N clients concurrently insert text in Array (time) | 45 ms | 49 ms | 195 ms | 28 ms | 1,768 ms | 19 ms |
| [B3.4] 20√N clients concurrently insert text in Array (updateSize) | 52,751 bytes | 52,735 bytes | 137,490 bytes | 70,514 bytes | 311,830 bytes | 285,330 bytes |
| [B3.4] 20√N clients concurrently insert text in Array (encodeTime) | 1 ms | 0 ms | 13 ms | 1 ms | 13 ms | 7 ms |
| [B3.4] 20√N clients concurrently insert text in Array (docSize) | 26,596 bytes | 26,580 bytes | 100,791 bytes | 47,943 bytes | 96,423 bytes | 86,519 bytes |
| [B3.4] 20√N clients concurrently insert text in Array (parseTime) | 55 ms | 37 ms | 94 ms | 30 ms | 43 ms | 37 ms |
| [B4] Apply real-world editing dataset (time) | 2,616 ms | 17,556 ms | 2,271 ms | 768 ms | 7,109 ms | 2,775 ms |
| [B4] Apply real-world editing dataset (encodeTime) | 4 ms | 8 ms | 11 ms | 3 ms | 165 ms | 161 ms |
| [B4] Apply real-world editing dataset (docSize) | 226,981 bytes | 226,981 bytes | 230,556 bytes | 260,813 bytes | 129,116 bytes | 129,116 bytes |
| [B4] Apply real-world editing dataset (parseTime) | 27 ms | 22 ms | 6 ms | 4 ms | 1,185 ms | 1,123 ms |
| [B4x100] Apply real-world editing dataset 100 times (time) | 279,705 ms | skipped | 233,739 ms | 75,122 ms | skipped | skipped |
| [B4x100] Apply real-world editing dataset 100 times (encodeTime) | 417 ms | skipped | 743 ms | 205 ms | skipped | skipped |
| [B4x100] Apply real-world editing dataset 100 times (docSize) | 22,694,543 bytes | skipped | 21,016,454 bytes | 26,826,427 bytes | skipped | skipped |
| [B4x100] Apply real-world editing dataset 100 times (parseTime) | 1,270 ms | skipped | 66 ms | 200 ms | skipped | skipped |
| [B3.5] 20√N clients concurrently insert text (time) | 42 ms | 49 ms | 212 ms | 115 ms | 1,869 ms | 36 ms |
| [B3.5] 20√N clients concurrently insert text (updateSize) | 48,129 bytes | 48,135 bytes | 132,870 bytes | 68,978 bytes | 298,020 bytes | 298,020 bytes |
| [B3.5] 20√N clients concurrently insert text (encodeTime) | 1 ms | 0 ms | 13 ms | 1 ms | 12 ms | 16 ms |
| [B3.5] 20√N clients concurrently insert text (docSize) | 24,313 bytes | 24,325 bytes | 102,818 bytes | 48,053 bytes | 90,768 bytes | 90,781 bytes |
| [B3.5] 20√N clients concurrently insert text (parseTime) | 38 ms | 38 ms | 64 ms | 63 ms | 67 ms | 55 ms |
| [C1.1] Concurrently insert & delete 100K (time) | 27,138 ms | skipped | 2,335 ms | skipped | 50,692 ms | skipped |
| [C1.1] Concurrently insert & delete 100K (updateSize) | 4,908,122 bytes | skipped | 4,269,521 bytes | skipped | 10,326,487 bytes | skipped |
| [C1.1] Concurrently insert & delete 100K (encodeTime) | 129 ms | skipped | 210 ms | skipped | 837 ms | skipped |
| [C1.1] Concurrently insert & delete 100K (docSize) | 4,908,186 bytes | skipped | 6,748,052 bytes | skipped | 5,404,289 bytes | skipped |
| [C1.1] Concurrently insert & delete 100K (parseTime) | 1,653 ms | skipped | 78 ms | skipped | 7,308 ms | skipped |
| [C1.1] Concurrently insert & delete 100K (versionSize) | 222,681 bytes | skipped | 28 bytes | skipped | 64 bytes | skipped |
| [C1.2] Concurrently set Map 100K (time) | 31,598 ms | skipped | 488 ms | skipped | 472,547 ms | skipped |
| [C1.2] Concurrently set Map 100K (updateSize) | 980,804 bytes | skipped | 2,601,744 bytes | skipped | 5,541,744 bytes | skipped |
| [C1.2] Concurrently set Map 100K (encodeTime) | 60 ms | skipped | 203 ms | skipped | 2,652 ms | skipped |
| [C1.2] Concurrently set Map 100K (docSize) | 738,949 bytes | skipped | 1,539,209 bytes | skipped | 1,743,081 bytes | skipped |
| [C1.2] Concurrently set Map 100K (parseTime) | 4,069 ms | skipped | 631 ms | skipped | 338 ms | skipped |
| [C1.2] Concurrently set Map 100K (versionSize) | 416,246 bytes | skipped | 314,810 bytes | skipped | 1,949,999 bytes | skipped |
# FILE: pages/blog/movable-tree.mdx
---
title: "Movable tree CRDTs and Loro's implementation"
date: 2024/07/18
description: This article introduces the implementation difficulties and challenges of Movable Tree CRDTs when collaboration, and how Loro implements it and sorts child nodes. The algorithm has high performance and can be used in production.
image: https://i.ibb.co/nMrgzZJ/DALL-E-2024-01-31-21-29-16-Create-a-black-and-white-illustration-with-a-black-background-that-matche.png
---
# Movable tree CRDTs and Loro's implementation
import Caption from "components/caption";
import Authors, { Author } from "components/authors";
This article introduces the implementation difficulties and challenges of Movable Tree CRDTs when collaboration, and how Loro implements it and sorts child nodes. The algorithm has high performance and can be used in production.
## Background
In distributed systems and collaborative software, managing hierarchical relationships is difficult and complex. Challenges arise in resolving conflicts and meeting user expectations when working with the data structure that models movement by combining deletion and insertion. For instance, if a node is concurrently moved to different parents in replicas, it may lead to the unintended creation of duplicate nodes with the same content. Because the node is deleted twice and created under two parents.
Currently, many software solutions offer different levels of support and functionality for managing hierarchical data structures in distributed environments. The key variation among these solutions lies in their approaches to handling potential conflicts.
### Conflicts in Movable Trees
A movable tree has 3 primary operations: creation, deletion, and movement. Consider a scenario where two peers independently execute various operations on their respective replicas of the same movable tree. Synchronizing these operations can lead to potential conflicts, such as:
- The same node was deleted and moved
- The same node was moved under different nodes
- Different nodes were moved, resulting in a cycle
- The ancestor node is deleted while the descendant node is moved
#### Deletion and Movement of the Same Node
This situation is relatively easy to resolve. It can be addressed by applying one of the operations while ignoring the other based on the timestamp in the distributed system or the application's specific requirements. Either approach yields an acceptable outcome.
#### Moving the Same Node Under Different Parents
Merging concurrent movement operations of the same node is slightly more complex. Different approaches can be adopted depending on the application:
- Delete the node and create copies of nodes under different parent nodes. Subsequent operations then treat these nodes independently. This approach is acceptable when node uniqueness is not critical.
- Allow the node have two edges pointing to different parents. However, this approach breaks the fundamental tree structure and is generally not considered acceptable.
- Sort all operations, then apply them one by one. The order can be determined by timestamps in a distributed system. Providing the system maintains a consistent operation sequence, it ensures uniform results across all peers.
#### Movement of Different Nodes Resulting in a Cycle
Concurrent movement operations that cause cycles make the conflict resolution of movable trees complex. Matthew Weidner listed several solutions to resolve cycles in his [blog](https://mattweidner.com/2023/09/26/crdt-survey-2.html#forests-and-trees).
> 1. Error. Some desktop file sync apps do this in practice ([Martin Kleppmann et al. (2022)](https://doi.org/10.1109/TPDS.2021.3118603) give an example).
> 2. Render the cycle nodes (and their descendants) in a special “time-out” zone. They will stay there until some user manually fixes the cycle.
> 3. Use a server to process move ops. When the server receives an op, if it would create a cycle in the server’s own state, the server rejects it and tells users to do likewise. This is [what Figma does](https://www.figma.com/blog/how-figmas-multiplayer-technology-works/#syncing-trees-of-objects). Users can still process move ops optimistically, but they are tentative until confirmed by the server. (Optimistic updates can cause temporary cycles for users; in that case, Figma uses strategy (2): it hides the cycle nodes.)
> 4. Similar, but use a [topological sort](https://mattweidner.com/2023/09/26/crdt-survey-2.html#topological-sort) (below) instead of a server’s receipt order. When processing ops in the sort order, if an op would create a cycle, skip it [(Martin Kleppmann et al. 2022)](https://doi.org/10.1109/TPDS.2021.3118603).
> 5. For forests: Within each cycle, let `B.parent = A` be the edge whose `set` operation has the largest LWW timestamp. At render time, “hide” that edge, instead rendering `B.parent = "none"`, but don’t change the actual CRDT state. This hides one of the concurrent edges that created the cycle.
> • To prevent future surprises, users’ apps should follow the rule: before performing any operation that would create or destroy a cycle involving a hidden edge, first “affirm” that hidden edge, by performing an op that sets `B.parent = "none"`.
> 6. For trees: Similar, except instead of rendering `B.parent = "none"`, render the previous parent for `B` - as if the bad operation never happened. More generally, you might have to backtrack several operations. Both [Hall et al. (2018)](http://dx.doi.org/10.1145/3209280.3229110) and [Nair et al. (2022)](https://arxiv.org/abs/2103.04828) describe strategies along these lines.
#### Ancestor Node Deletion and Descendant Node Movement
The most easily overlooked scenario is moving descendant nodes when deleting an ancestor node. If all descendant nodes of the ancestor are deleted directly, users may easily misunderstand that their data has been lost.
### How Popular Applications Handle Conflicts
Dropbox is a file data synchronization software. Initially, Dropbox treated file movement as a two-step process: deletion from the original location followed by creation at a new location. However, this method risked data loss, especially if a power outage or system crash occurred between the delete and create operations.
Today, when multiple people move the same file concurrently and attempt to save their changes, Dropbox detects a conflict. In this scenario, it typically saves one version of the original file and creates a new ["conflicted copy"](https://help.dropbox.com/organize/conflicted-copy) for the changes made by one of the users.
The image shows the conflict that occurs when A is moved to the B folder and B
is moved to the A folder concurrently.
Figma is a real-time collaborative prototyping tool. They consider tree structures as the most complex part of the collaborative system, as detailed in their [blog post about multiplayer technology](https://www.figma.com/blog/how-figmas-multiplayer-technology-works/#syncing-trees-of-objects). To maintain consistency, each element in Figma has a "parent" attribute. The centralized server plays a crucial role in ensuring the integrity of these structures. It monitors updates from various users and checks if any operation would result in a cycle. If a potential cycle is detected, the server rejects the operation.
However, due to network delays and similar issues, there can be instances where updates from users temporarily create a cycle before the server has the chance to reject them. Figma acknowledges that this situation is uncommon. Their [solution](https://www.figma.com/blog/how-figmas-multiplayer-technology-works/#syncing-trees-of-objects) is straightforward yet effective: they temporarily preserve this state and hide the elements involved in the cycle. This approach lasts until the server formally rejects the operation, ensuring both the stability of the system and a seamless user experience.
An animation that demonstrates how
[Figma](https://www.figma.com/blog/how-figmas-multiplayer-technology-works/#syncing-trees-of-objects)
resolves conflicts.
## Movable Tree CRDTs
The applications mentioned above use movable trees and resolve conflicts based on centralized solutions. Another alternative approach to collaborative tree structures is using Conflict-free Replicated Data Types (CRDTs). While initial CRDT-based algorithms were challenging to implement and incurred significant storage overhead as noted in prior research, such as [Abstract unordered and
ordered trees CRDT](https://arxiv.org/pdf/1201.1784.pdf) or [File system on CRDT](https://arxiv.org/pdf/1207.5990.pdf), but continual optimization and improvement have made several CRDT-based tree synchronization algorithms suitable for certain production environments. This article highlights two innovative CRDT-based approaches for movable trees. The first is presented by Martin Kleppmann et al. in their work **_[A highly-available move operation for replicated trees](https://martin.kleppmann.com/2021/10/07/crdt-tree-move-operation.html)_** and the second by Evan Wallace in his **_[CRDT: Mutable Tree Hierarchy](https://madebyevan.com/algos/crdt-mutable-tree-hierarchy/)_**.
### A highly-available move operation for replicated trees
This paper unifies the three operations used in trees (creating, deleting, and moving nodes) into a move operation. The move operation is defined as a four-tuple `Move t p m c`, where `t` is the operation's unique and ordered timestamp such as [`Lamport timestamp`](https://en.wikipedia.org/wiki/Lamport_timestamp), `p` is the parent node ID, `m` is the metadata associated with the node, and `c` is the child node ID.
If all nodes of the tree do not contain `c`, this is a **creation** operation that creates a child node `c` under parent node `p`. Otherwise, it is a **move** operation that moves `c` from its original parent to the new parent `p`. Additionally, node deletion is elegantly handled by introducing a designated `TRASH` node; moving a node to `TRASH` implies its deletion, with all descendants of `TRASH` considered deleted. But they remain in memory to prevent concurrent editing from moving them to other nodes. In order to handle the previously mentioned situation of deleting ancestor nodes and moving descendant nodes concurrently.
In the three potential conflicts mentioned earlier, since deletion is also defined as a move operation, **deleting and moving the same node** is transformed into two move operations, leaving only two remaining problems:
- **Moving the same node under different parents**
- **Moving different nodes, creating a cycle**
Logical timestamps are added so that all operations can be linearly ordered, thus the first conflict can be avoided as they can be expressed as two operations in sequence rather than concurrently for the same node. Therefore, in modeling a Tree using only move operations, the only exceptional case in concurrent editing would be creating a cycle, and operations causing a cycle are termed **unsafe operations**.
This algorithm sorts all move operations according to their timestamps. It can then sequentially apply each operation. Before applying, the algorithm detects cycles to determine whether an operation is safe. If the operation creates a cycle, we ignore the unsafe operation to ensure the correct structure of the tree.
Based on the above approach, the consistency problem of movable trees becomes the following two questions:
1. How to introduce global order to operations
2. How to apply a remote operation that should be inserted in the middle of an existing sorted sequence of operations
#### Globally Ordered Logical Timestamps
[Lamport Timestamp](https://en.wikipedia.org/wiki/Lamport_timestamp) can determine the causal order of events in a distributed system. Here's how they work: each peer starts with a counter initialized to `0`. When a local event occurs, the counter is increased by `1`, and this value becomes the event's Lamport Timestamp. When peer `A` sends a message to peer `B`, `A` attaches its Lamport Timestamp to the message. Upon receiving the message, peer `B` compares its current logical clock value with the timestamp in the message and updates its logical clock to the larger value.
To globally sort events, we first look at the Lamport Timestamps: smaller numbers mean earlier events. If two events have the same timestamp, we use the unique ID of the peer serves as a tiebreaker.
#### Apply a Remote Operation
An op's safety depends on the tree's state when applied, avoiding cycles. Insertion requires evaluating the state formed by all preceding ops. For remote updates, we may need to:
1. Undo recent ops
2. Insert the new op
3. Reapply undone ops
This ensures proper integration of new ops into the existing sequence.
##### Undo Recent Ops
Since we've modeled all operations on the tree as move operations, undoing a move operation involves either moving the node back to its old parent or undoing the operation that created this node. To enable quick undoing, we cache and record the **old parent** of the node before applying each move operation.
##### Apply the Remote Op
Upon encountering an unsafe operation, disregarding its effects prevents the creation of a cycle. Nevertheless, it's essential to record the operation, as the safety of an operation is determined **dynamically**. For instance, if we receive and sort an update that deletes another node causing the cycle prior to this operation, the operation that was initially unsafe becomes safe. Additionally, we need to mark this unsafe operation as ineffective, since during undo operations, it's necessary to query the **old parent** node, which is the target parent of the last effective operation in the sequence targeting this node.
##### Reapply Undone Ops
Cycles only occur when receiving updates from other peers, so the undo-do-redo process is also needed at this time. When receiving a new op:
```jsx
function apply(newOp)
// Compare the ID of the new operation with existing operations
if largerThanExistingOpId(newOp.id, oplog)
// If the new operation's ID is greater, apply it directly
oplog.applyOp(newOp)
else
// If the new operation's ID is not the greatest, undo operations until it can be applied
undoneOps = oplog.undoUtilCanBeApplied(newOp)
oplog.applyOp(newOp)
// After applying the new operation, redo the undone operations to maintain sequence order
oplog.redoOps(undoneOps)
```
- If the new operation depends on an op that has not been encountered locally, indicating that some inter-version updates are still missing, it is necessary to temporarily cache the new op and wait to apply it until the missing updates are received.
- Compare the new operation with all existing operations. If the `opId` of the new operation is greater than that of all existing operations, it can be directly applied. If the new operation is safe, record the parent node of the target node as the old parent node, then apply the move operation to change the current state. If it is not safe, mark this operation as ineffective and ignore the operation's impact.
- If the new opId is sorted in the middle of the existing sequence, it is necessary to pop the operations that are sorted later from the sequence one by one, and undo the impact of this operation, which means moving back to the child of the old parent node, until the new operation can be applied. After applying the new operation, reapply the undone nodes in sequence order, ensuring that all operations are applied in order.
The following animated GIF demonstrates the process executed by `Peer1`:
1. Received `Peer0` creating node `A` with the `root` node as its parent.
2. Received `Peer0` creating node `B` with `A` as its parent.
3. Created node `C` with `A` as its parent and synchronized it with `Peer0`.
4. Moved `C` to have `B` as its parent.
5. Received `Peer0`'s moving `B` to have `C` as its parent.
The queue at the top right of the animation represents the order of local operations and newly received updates. The interpretation of each element in each `Block` is as follows:
A particular part of this process to note is the two operations with `lamport timestamps` of `0:3` and `1:3`. Initially, the `1:3` operation moving `C` to `B` was created and applied locally, followed by receiving `Peer0`'s `0:3` operation moving `B` to `C`. In `lamport timestamp` order, `0:3` is less than `1:3` but greater than `1:2` (with peer as the tiebreaker when counters are equal). To apply the new op, the `1:3` operation is undone first, moving `C` back to its old parent `A`, then `0:3` moving `B` to `C` is applied. After that, `1:3` is redone, attempting to move `C` to `B` again (the old parent remains `A`, omitted in the animation). However, a cycle is detected during this attempt, preventing the operation from taking effect, and the state of the tree remains unchanged. This completes an `undo-do-redo` process.
### CRDT: Mutable Tree Hierarchy
Evan Wallace has developed an innovative algorithm that enables each node to track all its historical parent nodes, attaching a counter to each recorded parent. The count value of a new parent node is 1 higher than that of all the node's historical parents, indicating the update sequence of the node's parents. The parent with the highest count is considered the current parent node.
During synchronization, this parent node information is also synced. If a cycle occurs, a heuristic algorithm reattaches the nodes causing the cycle back to the nearest historical parent node that won't cause a cycle and is connected to the root node, thus updating the parent node record. This process is repeated until all nodes causing cycles are reattached to the tree, achieving all replica synchronization of the tree structure. The demo in [Evan's blog](https://madebyevan.com/algos/crdt-mutable-tree-hierarchy/) clearly illustrates this process.
As Evan summarized at the end of the article, this algorithm does not require the expensive `undo-do-redo` process. However, each time a remote move is received, the algorithm needs to determine if all nodes are connected to the root node and reattach the nodes causing cycles back to the tree, which can perform poorly when there are too many nodes.
I established a [benchmark](https://github.com/Leeeon233/movable-tree-crdt) to compare the performance of the movable tree algorithms.
## Movable Tree CRDTs implementation in Loro
Loro implements the algorithm proposed by Martin Kleppmann et al., **_[A highly-available move operation for replicated trees](https://martin.kleppmann.com/2021/10/07/crdt-tree-move-operation.html)_**. On one hand, this algorithm has high performance in most real world scenarios. On the other hand, the core `undo-do-redo` process of the algorithm is highly similar to how Eg-walker (Event Graph Walker) applies remote updates in Loro. Introduction about **Eg-walker** can be found in our previous [blog](https://www.loro.dev/blog/loro-richtext#brief-introduction-to-replayable-event-graph).
Movable tree has been introduced in detail, but there is still another problem of tree structure that has not been solved. For movable tree, in some real use cases, we still need the capability to sort child nodes. This is necessary for outline notes or layer management in graphic design softwares. Users need to adjust node order and sync it to other collaborators or devices.
We integrated the `Fractional Index` algorithm into Loro and combined it with the movable tree, making the child nodes of the movable tree sortable.
There are many introductions to `Fractional Index` on the web, You can read more about `Fractional Index` in the [Figma blog](https://www.figma.com/blog/realtime-editing-of-ordered-sequences) or [Evan blog](https://madebyevan.com/algos/crdt-fractional-indexing/). In simple terms, `Fractional Index` assigns a sortable value to each object, and if a new insertion occurs between two objects, the `Fractional Index` of the new object will be between the left and right values. What we want to speak about more here is how to deal with potential conflicts brought by `Fractional Index` in CRDTs systems.
### Potential Conflicts in Child Node Sorting
As our applications are in a distributive condition, when multiple peers insert new nodes in the same position, the same `Fractional Index` would be assigned to these differing content but same position nodes. When updates from the remote are applied to local, conflicts arise as the same `Fractional Index` is encountered.
In Loro, we retain these identical `Fractional Index` and use `PeerID` (unique ID of every Peer) as the tie-breaker for the relative order judgment of the same `Fractional Index`.
Although this solved the sorting problem among the same `Fractional Index` nodes from different peers, it impacted the generation of new `Fractional Index` as we cannot generate a new `Fractional Index` between two same ones. We use two methods to solve this problem:
1. The first method, as stated in Evan's blog, we could add a certain amount of jitter to each generated `Fractional Index`, (for the ease of explanation, all examples below take decimal fraction as the `Fractional Index`) for example, when generating a new `Fractional Index` between 0 and 1, it should have been 0.5, but through random jitters, it could be `0.52712`, `0.58312`, `0.52834`, etc., thus significantly reducing the chance of same `Fractional Index` appearing.
2. If the situation arises where the same `Fractional Index` is present on both sides, we can handle this problem by resetting these `Fractional Index`. For example, if we need to insert a new node between `0.7@A` and `0.7@B` (which indicates `Fractional Index` @ `PeerID`), instead of generating a new `Fractional Index` between 0.7 and 0.7, we could assign two new `Fractional Index` respectively for the new node and the `0.7@B` node between 0.7 and 1, which could be understood as an extra move operations.
### Implementation and Encoding Size
Introducing `Fractional Index` brings the advantage of node sequence. What about encoding size?
Loro uses [drifting-in-space](https://github.com/drifting-in-space/fractional_index) `Fractional Index` implementation based on `Vec`, which is base 256. In other words, you need to continuously insert 128 values forward or backward from the default value to increase the byte size of the `Fractional Index` by 1. The worst storage overhead case, such as inserting new values alternately each time. For example, the initial sequence is `ab`, insert `c` between `a` and `b`, then insert `d` between `c` and `b`, then `e` between `c` and `d`, like:
```js no_run
ab // [128] [129, 128]
acb // [128] [129, 127, 128] [129, 128]
acdb // [128] [129, 127, 128] [129, 127, 129, 128] [129, 128]
acedb // [128] [129, 127, 128] [129, 127, 129, 127, 128] [129, 127, 129, 128] [129, 128]
```
a new operation would cause an additional byte to be needed. But such a situation is very rare.
Considering that potential conflicts wouldn't appear frequently in most applications, Loro simply extended the implementation, the original implementation produced new `Fractional Index` in `Vec` by only increasing or decreasing 1 in certain index to achieve relative sorting. The simple jitter solution was added, by appending random bytes in length of jitter value to `Fractional Index`. To enable jitter in js, you can use `doc.setFractionalIndexJitter(number)` with a positive value. But this will increase the encoding size slightly, but each `Fractional Index` only adds `jitter` bytes. If you want to generate `Fractional Index` at the same position with 99% probability without conflict, the relationship between `jitter` settings and the maximum number of concurrent edits `n` will be:
jitter
max num of concurrent edits
1
3
2
37
3
582
When there are numerous `Fractional Indexes`, there will be many common prefixes after being sorted, when Loro encodes these `Fractional Indexes`, prefix optimization would be implemented. Each `Fractional Index` only saves the amount of same prefix bits and remaining bytes with the previous one, which further downsizes the overall encoding size.
### Related work
Other than using Fractional Index, there are other movable list CRDT that can make sibling nodes of the tree in order. One of these algorithms is Martin Kleppmann's [Moving Elements in List CRDTs](https://martin.kleppmann.com/2020/04/27/papoc-list-move.html), which has been used in Loro's [Movable List](https://www.loro.dev/docs/tutorial/list).
In comparison, the implementation of `Fractional Index` solution is simpler, and no stable position representation is provided for child nodes when modeling nodes in a tree, otherwise, the overall tree structure would be too complex. However, the `Fractional Index` has the problem of [interleaving](https://vlcn.io/blog/fractional-indexing#interleaving), but this is acceptable when some only need relative order and do not require strict sequential semantics, such as figma layer items, multi-level bookmarks, etc.
## Benchmark
We conducted performance benchmarks on the Movable Tree implementation by Loro, including scenarios of random node movement, switching to historical versions, and performance under extreme conditions with significantly deep tree structures. The results indicate that it is capable of supporting real-time collaboration and enabling seamless historical version checkouts.
| Task | Time | Setup |
| :---------------------------------------- | :----- | :------------------------------------------------ |
| Move 10000 times randomly | 28 ms | Create 1000 nodes first |
| Switch to different versions 1000 times | 153 ms | Create 1000 nodes and move 1000 times first |
| Switch to different versions 1000 times in a tree with depth of 300 | 701 ms | The new node is a child node of the previous node |
Test environment: M2 Max CPU, you can find the bench code
[here](https://github.com/loro-dev/loro/blob/main/crates/loro-internal/benches/tree.rs).
## Usage
```tsx
import { Loro, LoroTree, LoroTreeNode, LoroMap } from "loro-crdt";
let doc = new Loro();
let tree: LoroTree = doc.getTree("tree");
let root: LoroTreeNode = tree.createNode();
// By default, append to the end of the parent node's children list
let node = root.createNode();
// Specify the child's position
let node2 = root.createNode(0);
// Move `node2` to be the last child of `node`
node2.move(node);
// Move `node` to be the first child of `node2`
node.move(node2, 0);
// Move the node to become the root node
node.move();
// Move the node to be positioned after another node
node.moveAfter(node2);
// Move the node to be positioned before another node
node.moveBefore(node2);
// Retrieve the index of the node within its parent's children
let index = node.index();
// Get the `Fractional Index` of the node
let fractionalIndex = node.fractionalIndex();
// Access the associated data map container
let nodeData: LoroMap = node.data;
```
### Demo
We developed a simulated Todo app with data synchronization among multiple peers using Loro, including the use of `Movable Tree` to represent subtask relationships, `Map` to represent various attributes of tasks, and `Text` to represent task titles, etc. In addition to basic creation, moving, modification, and deletion, we also implemented version switching based on Loro. You can drag the scrollbar to switch between all the historical versions that have been operated on.
## Summary
This article discusses why implementing Movable Tree CRDTs is difficult, and presents two innovative algorithms for movable trees.
For implementation, Loro has integrated **_[A highly-available move operation for replicated trees](https://martin.kleppmann.com/2021/10/07/crdt-tree-move-operation.html)_** to implement the hierarchical movement of the Tree, and integrated the `Fractional Index` implementation by [drifting-in-space](https://github.com/drifting-in-space/fractional_index) to achieve the movement between child nodes. This can meet the needs of various application scenarios.
If you are developing collaborative applications or are interested in CRDT algorithms, you are welcome to join [our community](https://discord.gg/tUsBSVfqzf).
# FILE: pages/blog/v1.0.mdx
---
title: "Loro 1.0"
date: 2024/10/23
keywords: "loro, crdt, event graph walker"
description: "Announcing Loro 1.0: Introducing a stable encoding schema, 10-100x faster document import, advanced version control, and more for efficient real-time collaboration and local-first software development."
image: https://i.ibb.co/T1x1bSf/IMG-8191.jpg
---
# Loro 1.0
import Authors, { Author } from "components/authors";
import Image from "next/image";
Loro is a [Conflict-free Replicated Data Type (CRDT)](https://crdt.tech/)
library that developers can use to implement real-time collaboration and version
control in their applications. You can use Loro to create
[local-first software](https://www.inkandswitch.com/local-first/). Loro 1.0 has
a stable data format, excellent performance, and rich features. You can use it
in Rust, JS (via WASM), and Swift.
What is CRDT? What is it used for?
Distributed states are now ubiquitous in multi-user collaborative applications
and applications that need multi-device synchronization. You need to ensure
consistency across devices. CRDTs provide a decentralized way to automatically
solve this problem.
> CRDTs automatically resolve conflicts and ensure the consistency of the data.
> Some CRDT algorithms provide extra properties for merge results, which should align with user expectations as much as possible.
CRDT provides a decentralized way to solve this problem. The decentralization here not only means that it can synchronize through P2P methods, but it also means:
- It allows applications to naturally support offline editing
- It allows users to store and implement two-way synchronization of data in
multiple different locations
- It makes it easier for the backend to implement horizontal scaling
- It can easily support end-to-end encryption
CRDTs were once considered unable to be used in serious and complex scenarios,
such as rich text, but optimizations in recent years have greatly expanded its
application scenarios, making it a practical and easy-to-use technology.
Based on CRDT, we can create applications that
allow users to fully control data ownership. These applications can be like
Git-managed repositories, not relying on specific software service providers.
Users can switch between GitHub, GitLab, self-hosted Git servers, and the data
is always available locally. This is the vision of
[local-first software](https://www.inkandswitch.com/local-first/).
CRDTs often also provides a simpler and easier-to-use sync method,
because for Op-based CRDTs like Loro, as long as the sets of CRDT operations
received by two peers are consistent, the CRDT document states of these two
peers are consistent. You don't have to worry about idempotency, the order of
operation application, and network exception handling. For Loro's CRDT document,
just two rounds of data exchange can transmit the missing operations between two
documents to achieve final consistency:
> You can find all the code samples in this blog [here](https://github.com/zxch3n/loro-blog-examples)
```jsx
import { LoroDoc, VersionVector } from "npm:loro-crdt@1.0.0-beta.3";
const docA = new LoroDoc();
const docB = new LoroDoc();
docA.setPeerId(0);
docA.setPeerId(1);
docA.getText("text").insert(0, "Hello!");
docB.getText("text").insert(0, "Hi!");
const versionA: Uint8Array = docA.version().encode();
const versionB: Uint8Array = docB.version().encode();
// Exchange versionA and versionB Info
const bytesA: Uint8Array = docA.export({
mode: "update",
from: VersionVector.decode(versionB),
});
const bytesB: Uint8Array = docB.export({
mode: "update",
from: VersionVector.decode(versionA),
});
// Exchange bytesA and bytesB
docB.import(bytesA);
docA.import(bytesB);
console.log(docA.getText("text").toString()); // Hello!Hi!
console.log(docB.getText("text").toString()); // Hello!Hi!
```
A minimum of one round of data exchange can ensure consistency
```jsx
import { LoroDoc } from "npm:loro-crdt@1.0.0-beta.2";
const docA = new LoroDoc();
const docB = new LoroDoc();
docA.setPeerId(0);
docA.setPeerId(1);
docA.getText("text").insert(0, "Hello!");
docB.getText("text").insert(0, "Hi!");
// Exchange versionA and versionB Info
const bytesA: Uint8Array = docA.export({
mode: "update",
});
const bytesB: Uint8Array = docB.export({
mode: "update",
});
// Exchange bytesA and bytesB
docB.import(bytesA);
docA.import(bytesB);
console.log(docA.getText("text").toString()); // Hello!Hi!
console.log(docB.getText("text").toString()); // Hello!Hi!
```
## Features of Loro 1.0
### High-performance CRDTs
High-performance, general-purpose CRDTs can significantly reduce data synchronization
complexity and are crucial for local-first development.
However, large CRDT documents may face challenges with loading speed and memory consumption,
especially when dealing with those with extensive editing histories.
Loro 1.0 addresses this challenge through a new storage format, achieving a 10x improvement in
loading speed. In [benchmarks using Loro with real-world editing data](#document-import-speed-benchmarks),
we've reduced the loading time for a document with millions of operations from 16ms to 1ms. When utilizing the
shallow snapshot format (discussed later), the time can be further reduced to 0.37ms.
As a result, Loro will not become a bottleneck for applications dealing with such large documents.
It expands the potential use cases for CRDTs, making them viable for a wider range of applications.
### Rich CRDT types
Loro now supports
[rich text CRDT](https://loro.dev/blog/loro-richtext),
which enhances the merge result of rich text (text with formatting and styling) to better align with user expectations.
Our text/list CRDT is based on the [Fugue](https://arxiv.org/abs/2305.00583) algorithm.
It prevents interleaving issues when merging concurrent edits. For example,
it can avoid unintended merges like "1H2i3" when "123" and "Hi" are inserted concurrently.
We also support:
- Movable List: Supports set, insert, delete, and move operations. The algorithm ensures that after
merging concurrent moves, each element occupies only one position.
- Map: Similar to a JavaScript object.
- [Movable Tree](https://loro.dev/blog/movable-tree): Used to model file directories, outliners, and
other hierarchical structures that may need moving. It ensures no cyclic dependencies exist in the
tree after merging concurrent move operations.
Loro also supports nesting between types, so you can model edits on JSON documents through them:
> You can find all the code samples in this blog [here](https://github.com/zxch3n/loro-blog-examples)
```tsx
import {
LoroDoc,
LoroList,
LoroMap,
LoroText,
} from "npm:loro-crdt@1.0.0-beta.2";
// Create a JSON structure of
interface JsonStructure {
users: LoroList<
LoroMap<{
name: string;
age: number;
}>
>;
notes: LoroList;
}
const doc = new LoroDoc();
const users = doc.getList("users");
const user = users.insertContainer(0, new LoroMap());
user.set("name", "Alice");
user.set("age", 20);
const notes = doc.getList("notes");
const firstNote = notes.insertContainer(0, new LoroText());
firstNote.insert(0, "Hello, world!");
// { users: [ { age: 20, name: "Alice" } ], notes: [ "Hello, world!" ] }
console.log(doc.toJSON());
```
### Version control
Like Git, Loro saves a complete directed acyclic graph (DAG) of edit history. In Loro, the DAG is used to represent the dependencies between edits, similar to how Git represents commit history.
Loro supports primitives that allow users to switch between different versions, fork new branches, edit on new branches, and merge branches.
Based on this operation primitive, applications can build various Git-like capabilities:
- You can merge multiple versions without needing to manually resolve conflicts
- You can rebase/squash updates from the current branch to the target branch (WIP)
```jsx
import { LoroDoc } from "npm:loro-crdt@1.0.0-beta.2";
const doc = new LoroDoc();
doc.setPeerId("0");
doc.getText("text").insert(0, "Hello, world!");
doc.checkout([{ peer: "0", counter: 1 }]);
console.log(doc.getText("text").toString()); // "He"
doc.checkout([{ peer: "0", counter: 5 }]);
console.log(doc.getText("text").toString()); // "Hello,"
doc.checkoutToLatest();
console.log(doc.getText("text").toString()); // "Hello, world!"
// Simulate a concurrent edit
doc.checkout([{ peer: "0", counter: 5 }]);
doc.setDetachedEditing(true);
doc.setPeerId("1");
doc.getText("text").insert(6, " Alice!");
// ┌───────────────┐ ┌───────────────┐
// │ Hello, │◀─┬──│ world! │
// └───────────────┘ │ └───────────────┘
// │
// │ ┌───────────────┐
// └──│ Alice! │
// └───────────────┘
doc.checkoutToLatest();
console.log(doc.getText("text").toString()); // "Hello, world! Alice!"
```
You can also use `doc.fork()` to create a separate doc at the current version. It is independent of the current doc, and works like a fork:
```tsx
import { LoroDoc } from "npm:loro-crdt@1.0.0-beta.4";
const doc = new LoroDoc();
doc.setPeerId("0");
doc.getText("text").insert(0, "Hello, world!");
doc.checkout([{ peer: "0", counter: 5 }]);
const newDoc = doc.fork();
newDoc.setPeerId("1");
newDoc.getText("text").insert(6, " Alice!");
// ┌───────────────┐ ┌───────────────┐
// │ Hello, │◀─┬──│ world! │
// └───────────────┘ │ └───────────────┘
// │
// │ ┌───────────────┐
// └──│ Alice! │
// └───────────────┘
doc.import(newDoc.export({ mode: "update" }));
doc.checkoutToLatest();
console.log(doc.getText("text").toString()); // "Hello, world! Alice!"
```
### Leveraging the potential of the [Eg-walker](https://arxiv.org/abs/2409.14252)
import { ReactPlayer } from "components/video";
import Caption from "components/caption";
[Event Graph Walker (Eg-walker)](/docs/advanced/event_graph_walker) is a pioneering collaboration algorithm that combines the strengths of
Operational Transformation (OT) and CRDT, two widely used algorithms for real-time collaboration.
While OT is centralized and CRDT is decentralized, OT traditionally had an advantage
in terms of lower document overhead. CRDTs initially had higher overhead, but recent
optimizations have significantly reduced this gap, making CRDTs increasingly competitive.
Eg-walker leverages the best aspects of both approaches.
Not only have we use the idea of Eg-walker for Text and List CRDTs in Loro, but
Loro's overall architecture has also been greatly inspired by Eg-walker. As a
result, Loro closely resembles Eg-walker in terms of algorithmic properties.
[The Eg-walker paper](https://arxiv.org/abs/2409.14252) was released in
September 2023. Prior to its official publication, Joseph Gentle shared an
initial version of the algorithm in the Diamond-Type repository. Excited by
the design, I implemented a similar algorithm in Loro two years ago. A brief
introduction to this algorithm can be found
[here](https://loro.dev/docs/advanced/event_graph_walker).
The properties of Eg-walker includes:
- It itself conforms to the definition of CRDT, so it has the strong eventual
consistency property of CRDT, thus can be used in distributed environments
- Fast local operation speed: compared to previous CRDTs, it processes
operations extremely fast because it doesn't need to generate corresponding
Operations based on CRDT data structures
- Fast merging of remote operations: The complexity of OT merging remote
operations is O(n^2), while Eg-walker, like mainstream CRDTs, is O(nlogn),
only reaching O(n^2) in extremely rare worst-case scenarios. This means that
when the number of concurrent operations reaches 10,000, OT will start to show
noticeable lag to users, while CRDTs can handle it easily. And in most
real-world scenario benchmarks, it's faster than other CRDTs.
- Lower memory usage: Because it doesn't need to persistently store CRDT
structures in memory, its memory usage is lower than general CRDTs
- Faster import speed: CRDT documents often take a long time to load because
they need to parse the corresponding CRDT structures or operations to build the CRDT
data structures. Without these structures, they cannot continue subsequent
editing, resulting in long import times. Eg-walker, like OT algorithms, only
needs the current document state and does not need to build these additional
structures to allow users to start editing the document directly, thus
achieving much faster import speed
In the past quarter, we have made significant architectural adjustments to allow
Loro to further leverage the advantages of the Eg-walker algorithm. Here are our
achievements
#### Shallow Snapshot
By default, Loro stores the complete editing history of the document like Git,
because
[the Eg-walker algorithm needs to load edits that are parallel to them and to the least common ancestor when merging remote edits](https://loro.dev/docs/advanced/event_graph_walker).
Shallow Snapshot is like Git's Shallow Clone, which can remove old historical
operations that users don't need, greatly reducing document size and improving
document import and export speed. This allows you to cold store document history
that is too old and mainly use shallow doc for collaboration. Here's
an example usage:
```jsx
import { LoroDoc } from "npm:loro-crdt@1.0.0-beta.2";
const doc = new LoroDoc();
for (let i = 0; i < 10_000; i++) {
doc.getText("text").insert(0, "Hello, world!");
}
const snapshotBytes = doc.export({ mode: "snapshot" });
const shallowSnapshotBytes = doc.export({
mode: "shallow-snapshot",
frontiers: doc.frontiers(),
});
console.log(snapshotBytes.length); // 5421
console.log(shallowSnapshotBytes.length); // 869
```
For details on the implementation principle, see
[Shallow Snapshot](/docs/advanced/shallow_snapshot).
#### Optimized Document Format
Loro version 1.0 has achieved a 10x to 100x improvement in document import speed
compared to version 0.16, which already has a fast import speed.
It makes it possible to load a large text document with several million operations
in under a frame time.
This is because we introduced a new snapshot format.
When a LoroDoc is initialized through this snapshot format, we don't
parse the corresponding document state and historical information until the user
actually needs that information.
In Loro 1.0's snapshot format, without compression algorithms, its document size
is twice that of the old version (and other mainstream CRDTs). This additional
size mainly comes from encoding historical operations + document state in the
1.0 snapshot format, without reusing stored data between the two, while in the
old version we used the order of historical operations to encode the current
state of the document (the old version's encoding learned from
[Automerge encoding's Value Column](https://automerge.org/automerge-binary-format-spec/#_value_column)).
Trading twice the document size for ten times the import speed is worthwhile
because import speed affects the performance of many aspects, and the import
speed of CRDT documents
[is often noticeable to users on large documents](https://loro.dev/docs/performance)
(> 16ms). It also leaves possibilities for more optimizations in the future.
Inspired by the design of Key-Value Databases, we have also divided the storage
of document state and history into blocks, with each block roughly 4KB in size,
so that when users really need a piece of history, we only need to decompress
and read this 4KB of content, without parsing the entire document. This has led
to a qualitative improvement in import speed, and because the serialization
format can better compress history and state, memory usage is also lower than
before.
The lazy loading optimization takes advantage of Eg-walker's property that "it
doesn't need to keep the complete CRDT data structure in memory at all times,
and only needs to access historical operations when parallel edits occur".
How we implemented lazy loading
In Loro 1.0, we implemented a simple [LSM (Log-structured merge-tree)](https://en.wikipedia.org/wiki/Log-structured_merge-tree) engine internally. LSM is a data structure often used to
implement Key-Value Databases, and Loro 1.0 is heavily inspired by its design.
Currently, Loro's storage implementation uses get, set, and range operations of
Key-Value Database as primitives. For example, Loro stores history as a series of
ChangeBlocks, with each ChangeBlock serialized to about 4KB. Each ChangeBlock
uses its first Op Id as the Key, and the serialized binary data of the
ChangeBlock as the Value, stored in the internal LSM engine.
In our simple LSM Engine implementation, each Block is compressed during
serialization, and decompression only occurs when the corresponding Value is
actually retrieved. This allows the import speed of the new data format to be up
to a hundred times faster than before, with even lower memory usage. So in Loro
1.0:
1. Data integrity is checked during import
2. Loro internally stores history (History/OpLog) and state (DocState) in
blocks, loading the corresponding blocks as needed
3. The Eg-walker algorithm that Loro is based on allows documents to start
editing without complete CRDTs meta information, thus easily working with
lazy loading behavior
Why is lazy loading valuable? Because in many use cases, we don't need to fully
load the document's history and state:
- For example, when we receive a set of remote updates, but the Loro document
data is still in the database, and we want to know the latest state of the
document, we need to load the LoroDoc snapshot from the database, then import
the remote update set, and then get the latest document state. At this point,
most of the historical information won't be accessed.
- Sometimes in data synchronization scenarios, peer A needs to send historical
data that peer B doesn't have. It needs to import the snapshot and then
extract the historical information that B doesn't have. In this case, the
document's state doesn't need to be parsed, and the unused part of the history
doesn't need to be parsed either.
- Users don't need document history when initializing a document; only parsing
the State is necessary at this point
When merging remote operations, only the modified containers and some of the
related historical operations need to be visited
What happens during import and export in the new version? Let's take a common
scenario as an example:
In real-time collaboration sessions or local storage, we recommend developers
first store the operations from users, and then periodically perform compaction.
This compaction involves importing the old snapshot and all scattered updates
into the same LoroDoc, then exporting uniformly through the Snapshot format. In
the new version, this will involve the following:
- First, the old version of the snapshot is imported
- The received updates may contain parallel edits, so a part of the related
parallel edit history from the old version needs to be loaded to construct the
CRDT and complete the diff calculation
- Loro internally loads and parses the data of the corresponding block to get
the corresponding history; at this point, complete document parsing does not
occur
- After the diff calculation is complete, it needs to be applied to the
corresponding States
- Loro will internally load and parse the corresponding state, and at this
point, complete document parsing does not occur either
- Export
- Unaffected history blocks or state blocks are exported as they are
- Affected blocks will be serialized to overwrite the original block, then
exported
- During export, we use a method similar to SSTable internally for the final
export
The only data that needs to be parsed in this entire process are:
- Meta information for each stored block
- Blocks that need to be read will be decompressed
- History Blocks / state Blocks that will be affected by Updates
#### Benchmarks
> All benchmarks results below were performed on a MacBook Pro M1 2020
Below is a comparison of Snapshot import and export speeds between Loro versions
1.0.0-beta.1 and 0.16.12. The benchmark is based on document editing history
from the real world. Thanks to [latch.bio](http://latch.bio) for sharing the
document data. The benchmark code is available [here](https://github.com/loro-dev/latch-bench).
The document contains 1,659,541 operations.
> In Loro, a Snapshot stores the document history along with its current state.
> The Shallow Snapshot format, similar to Git's Shallow Clone, can exclude
> history. In the benchmark below, the Shallow Snapshot has a depth=1 (only the
> most recent operation history is retained, other historical operations are
> removed)
| task | Old Snapshot Format on 0.16.12 | New Snapshot Format | Shallow Snapshot Format |
| ---- | ----------------------------- | ---------------------------------- | -------------------------------------- |
| Import | 17.3ms +- 0.0298ms | 1.15ms +- 0.0101ms (15x) | 375µs +- 8.47µs (47x) |
| Import+GetAllValues | 17.4ms +- 0.0437ms | 1.19ms +- 0.0122ms (14.5x) | 375µs +- 1.60µs (46x) |
| Import+GetAllValues+Edit | 17.5ms +- 0.0263ms | 1.21ms +- 0.0120ms (14.5x) | 375µs +- 1.40µs (46.5x) |
| Import+GetAllValues+Edit+Export | 32.4ms +- 0.0560ms | 5.46ms +- 0.0772ms (6x) | 844µs +- 5.12µs (38.5x) |
Here are the key points of this benchmark:
- The Shallow Snapshot has a depth of 1, meaning it only contains the document
state and a single historical operation, which is why it's significantly
faster
- *GetAllValue* refers to calling `doc.get_deep_value()` (in JS, it's
`doc.toJSON()` ). It loads the complete state of the document and
obtains the corresponding JSON-like structure. This represents the time spent
on CRDT parsing before a user loads a document.
- *Edit* refers to making a local modification. As you can see, it has little
impact on the time taken because Loro doesn't need to load the complete CRDT
data structure for local operations.
- _Export_ refers to exporting the complete document data again. We expect to
further reduce the time spent here in the future, as we can continue to reuse
the encoding of unmodified Blocks from the import.
The following shows the performance on a document after applying the editing
history from the
[Automerge Paper](https://github.com/automerge/automerge-perf/tree/master/edit-by-index)
**100 times**. You can reproduce the results [here](https://github.com/zxch3n/automerge-paper-bench).
The document contains:
- 18,231,500 single-character insertion operations
- 7,746,300 single-character deletion operations
- 25,977,800 operations totally
- 10,485,200 characters in the final document
| Snapshot Type | Size (bytes) |
| ---------------- | ------------ |
| Old snapshot | 27,347,374 |
| New snapshot | 23,433,380 |
| Shallow Snapshot | 4,388,215 |
- The New snapshot data is smaller because it performs additional simple
compression on each Block during encoding internally
| task | Old Snapshot | New Snapshot | Shallow Snapshot |
| ---------------- | -------------------------- | -------------------------- | -------------------------- |
| Parse | 538ms +- 3.23ms | 17.9ms +- 48.5µs (30x) | 14.4ms +- 114µs (37x) |
| Parse+ToString | 568ms +- 1.78ms | 20.2ms +- 57.2µs (28x) | 16.8ms +- 81.4µs (34x) |
| Parse+ToString+Edit | 561ms +- 940µs | 119ms +- 180µs (4.5x) | 113ms +- 185µs (5x) |
| Parse+ToString+Edit+Export | 1460ms +- 22.9ms | 251ms +- 1.60ms (6x) | 206ms +- 360µs (7x) |
## Next Steps for Loro
### Loro Version Controller
Importing Loro Git Repo into Loro Version Controller
Loro's performance on a single document is now sufficient to cover the real-time
collaboration and version management needs of most documents. So our next step
will be to explore real-time collaboration and version control across a
collection of documents.
We believe that CRDTs can create a Git for Everyone and Everything:
- It's for Everyone because by leveraging the power of CRDTs, we can make version
control much easier to reason about and use for the average person.
- It's (nearly) for Everything because Loro provides a rich set of data
synchronization types. We're no longer limited to synchronizing plain text
data, but can solve semantic automatic merging of JSON-like schema, which can meet
most needs of creative tools and collaborative tools.
We've created a demo of the Loro version controller, which is based on our
sub-document implementation (implemented in the application layer) with Version information.
It can import the entire React repository (about 20,000 commits, thousands of
collaborators), and it supports real-time collaboration on such
repositories. However, how to better manage versions and seamlessly integrate with Git still needs to be explored.
Loro CRDTs still have significant room for optimization in these scenarios.
Currently, the Loro CRDTs library doesn't involve network or disk I/O, which
enhances its ease of use but also constrains its capabilities and potential
optimizations.
For example, while we've implemented block-level storage, documents are still
imported and exported as whole units. Adding I/O capabilities to selectively
load/save blocks would enable significant performance optimizations.
## Conclusion
Loro 1.0 features great performance improvements, rich CRDT types, and advanced
version control features. Our optimized document format has yielded promising
results on the import speed and the memory usage.
Now that Loro CRDTs are stable, we are able to develop a better ecosystem.
We're excited to see it being applied in various scenarios.
If you're interested in using Loro, welcome to join our
[Discord community](https://discord.gg/tUsBSVfqzf) for discussions.
# FILE: pages/blog/loro-now-open-source.mdx
---
title: "Loro: Reimagine State Management with CRDTs"
date: 2023/11/13
description:
"Loro, our high-performance CRDTs library, is now open source. In this
article, we share our vision for the local-first software development
paradigm, why we're excited about it, and the current status of Loro."
---
# Loro: Reimagine State Management with CRDTs
import Caption from "components/caption";
import GitHub from "components/github";
import Authors, { Author } from "components/authors";
Loro, our high-performance CRDTs library, is now open source
.
In this article, we share our vision for the local-first software development
paradigm, explain why we're excited about it, and discuss the current status of
Loro.
With better DevTools, documentation, and a friendly ecosystem, everyone can
easily build local-first software.
You can build collaborative apps with time travel features easily using Loro.
[Play the example online](https://loro-react-flow-example.vercel.app/).
## Envisioning the Local-First Development Paradigm
Distributed states are commonly found in numerous scenarios, such as multiplayer
games, multi-device document synchronization, and edge networks. These scenarios
require synchronization to achieve consistency, usually entailing elaborate
design and coding. For instance, considerations for network issues or concurrent
write operations are necessary. However, for a wide range of applications CRDTs
can simplify the code significantly:
- CRDTs can automatically merge concurrent writes without conflicts.
- Fewer abstractions. There's no need to design specific backend database
schemas, manually execute expected conflict merges, or implement interfaces to
memory and memory to persistent structure conversions.
- Offline supports are right out of the box
What are CRDTs
### What are Conflict-Free Replicated Data Types (CRDTs)?
CRDTs are data structures used in distributed systems that allow updates to be
merged across multiple replicas without conflicts. In this context, "replicas"
refer to different independent data instances within the system, such as the
same collaborative document on various user devices.
CRDTs enable users to operate independently on their replicas, like editing a
document, without needing real-time communication with other replicas. The CRDTs
merge these operations, ensuring all replicas achieve "strong eventual
consistency". As long as all nodes receive the same set of updates, regardless
of the order, their data states will eventually be consistent.
> For more details, visit
> [What are CRDTs](https://www.loro.dev/docs/concepts/crdt)
When you can't use CRDTs
### When you can't use CRDTs
CRDTs only guarantee _Strong Eventual Consistency_. You have to make sure it's
suitable for your application.
"Strong Eventual Consistency": As long as all nodes receive the same set of
updates, their data states will ultimately become consistent regardless of their
sequence.
Strong eventual consistency may not be acceptable in scenarios requiring
immediate consistency or transactional integrity, such as financial
transactions, exclusive resource access, or allocation.
Since the data resides locally, client applications can directly access and
manipulate local data, offering both speed and availability. Additionally, due
to CRDTs' nature, synchronization / real-time collaboration can be achieved
without relying on centralized servers (similar to Git, allowing migration to
other platforms without data loss). With performance improvements, CRDTs
increasingly replace traditional real-time collaboration solutions in various
contexts.
This represents a new paradigm. Local-first not only empowers users with control
over their data, but also makes developers' lives easier.
The annual growth rate of the *"local-first"* star count in GitHub has reached
40%+.
### Integrating CRDTs with UI State Management
Loro's rich text collaboration example
Since CRDTs enable conflict-free automatic merging, the challenge of managing
distributed states shifts to "how to express operations and states on CRDTs".
Front-end state management libraries typically require developers to define how
to retrieve State and specify Actions, as illustrated by this example from Vue's
state management tool, Pinia:
```ts no-run
export const useCartStore = defineStore({
id: "cart",
state: () => ({
rawItems: [] as string[],
}),
getters: {
items: (state): Array<{ name: string; amount: number }> =>
state.rawItems.reduce((items, item) => {
const existingItem = items.find((it) => it.name === item);
if (!existingItem) {
items.push({ name: item, amount: 1 });
} else {
existingItem.amount++;
}
return items;
}, [] as Array<{ name: string; amount: number }>),
},
actions: {
addItem(name: string) {
this.rawItems.push(name);
},
removeItem(name: string) {
const i = this.rawItems.lastIndexOf(name);
if (i > -1) this.rawItems.splice(i, 1);
},
async purchaseItems() {
const user = useUserStore();
if (!user.name) return;
console.log("Purchasing", this.items);
const n = this.items.length;
this.rawItems = [];
return n;
},
},
});
```
This paradigm and CRDTs are easily compatible: The state in the state management
libraries corresponds to CRDT types, and Action corresponds to a set of CRDT
operations.
Thus, implementing UI state management through CRDTs does not require users to
change their habits. It also has many advanced features:
- Make states automatically synchronizable / support real-time collaboration.
- Like Git, maintain a complete distributed editing history.
- It can store an extensively large editing history with a low memory footprint
and a compact encoding size. Below is an example.
With this, you can effortlessly implement products with real-time / async
collaboration and time machine features.
Time travel a document with 360,000+ operations using Loro. To load the
whole history and playback, it only takes 8.4MB in memory. And the entire
history only takes 361KB in storage. The editing trace is from{" "}
.
## Introduction to Loro
Loro is our CRDTs library, now open-sourced under a permissive license. We
believe a cooperative and friendly open-source community is key to creating
outstanding developer experiences.
We aim to make Loro simple to use, extensible, and maintain high performance.
The following is the latest status of Loro.
### CRDTs
We have explored extensively, supporting a range of CRDT algorithms that have
yet to be widely used.
#### OT-like CRDTs
> Update: This algorithm is now called Event Graph Walker (Eg-Walker)
Our CRDTs library is built on the brilliant concept of OT-like CRDTs from Seph
Gentle's [Diamond-types](https://github.com/josephg/diamond-types). Joseph Gentle
is currently writing a paper on it, which is worth looking forward to. Its
notable features include reducing the cost of local operations, easier
historical data reclamation, and sometimes lower storage and memory overhead.
However, it relies on high-performance algorithms to apply remote operations.
This design has great potential and we are excited about its future.
Brief Introduction to OT-like CRDT algorithms
To briefly introduce the concept of OT-like CRDTs, this part is complex and
requires some prior knowledge. I might not encapsulate it well.
The general idea of OT-like CRDTs is that they do not retain the CRDTs' data
structure (e.g., originLeft originRight information). When merging remote
operations, they return to the lowest common ancestor in the directed acyclic
graph history of local and remote, and from there, reapply each operation. This
process reconstructs the CRDTs structure, resolving conflicts arising from
parallel editing. Its advantage is that, since it doesn't need to retain these
CRDTs Meta information, local operations are virtually cost-free, like OT, where
only the index at which insertions and deletions occur needs to be saved. The
trade-off is a longer time for merging remote operations, but this issue can be
significantly mitigated with well-designed data structures and algorithms.
Moreover, since most parallel edits last only a short time, the lowest common
ancestor is not far, making the merging process quick.
The image below shows an example of merging versions 2@1 and 1@2 using this
algorithm on a DAG. The algorithm needs to revert to the lowest common ancestor
version 0@1 and apply all subsequent operations from there (a total of four
operations). For a better understanding of this image, refer to
[https://www.loro.dev/docs/advanced/version_deep_dive](https://www.loro.dev/docs/advanced/version_deep_dive)
#### Rich Text CRDTs
In May of this year, we open-sourced the
[crdt-richtext](https://github.com/loro-dev/crdt-richtext) project, integrating
the algorithms of [the rich text CRDT](https://loro.dev/blog/loro-richtext) and the
sequence CRDT [Fugue by Matthew Weidner](https://arxiv.org/abs/2305.00583). A
brief introduction to these two algorithms can be found in
[our blog at the time](https://www.notion.so/crdt-richtext-Rust-implementation-of-Peritext-and-Fugue-c49ef2a411c0404196170ac8daf066c0?pvs=21).
Based on our experience from previous projects, we have integrated a rich text
CRDT and Fugue into our framework in the current Loro. However, the biggest
challenge was that
[Peritext did not integrate well with OT-like CRDTs](https://github.com/inkandswitch/peritext/issues/31).
We have recently overcome this issue. We developed a new rich text CRDT
algorithm that can run on OT-like CRDTs and has passed the capabilities listed
in the Peritext paper's Criteria for rich text CRDTs, with no new issues
revealed in our current million fuzzing tests. We will write an article in the
future specifically to introduce this algorithm.
#### Movable Tree
We have also supported a movable tree CRDT. Synchronizing tree movements is
often complex due to the potential for circular references. Addressing this
issue in the distributed environment is even more challenging.
We implemented Martin Kleppmann's paper,
[_A Highly-Available Move Operation for Replicated Trees_](https://ieeexplore.ieee.org/document/9563274/).
The idea of this algorithm is to sort all move operations, ensuring the ordering
is consistent across the replicas. Then, each operation is applied sequentially.
If an operation would cause a circular reference, it has no effect.
We found it to be elegant in design and also performant. The time complexity of
local operations is O(k) (k being the average tree depth, as circular reference
detection is required). For applying remote operations, which entails inserting
new operations into the sorted list, we must undo operations that are subsequent
in the ordering, apply the remote operation, and then redo the undone
operations, with a cost of O(km) (m being the number of operations to undo).
Visualization of applying a remote op
Our tests show that local operations involving ten thousand random movements
among a thousand nodes take less than 10ms (tested on an M2 MAX chip). Moreover,
the cost of merging remote operations in this algorithm is similar to applying
remote operations in OT-like CRDTs, making it adoptable. We've also experimented
with [log-spaced snapshots](https://madebyevan.com/algos/log-spaced-snapshots/)
and immutable data structure approaches in our
[movable-tree project](https://github.com/loro-dev/movable-tree), concluding
that the undo + redo method is the fastest and the most memory-efficient.
### Data Structures
Designing and experimenting with data structures is routine in Loro's
development process.
We previously open-sourced
[generic-btree](https://github.com/loro-dev/generic-btree) and have redesigned
its structure for a more compact memory layout and cache-friendliness. Besides
its remarkable performance, its flexibility enables us to support various
information types required for Text, like utf16/Unicode code points/utf8, with
minimal code. We also extensively reuse it to fulfill various requirements,
highlighting Rust's impressive type expression capabilities.
Internally, we've
[separated the document's state from its history](https://www.loro.dev/docs/advanced/doc_state_and_oplog).
The state represents the current form of the document, akin to Git's HEAD
pointer, while the document's history resembles the complete operation history
behind Git. Hence, multiple document states can correspond to the same history.
This structure simplifies our code and facilitates future support for version
control.
Most of our optimizations thus far have focused on text manipulations,
historically one of the thorniest problems in CRDTs. In the future, we plan
optimizations for a wider range of real-world scenarios.
### The Future
We aim to reach version 1.0 by mid-next year, with much work to complete.
Given our limited workforce, we will first provide a WASM interface for web
developers to experiment with. Optimizing the WASM size is one of our goals for
this phase. Much of our design work is still ongoing, and we plan to stabilize
it in the next quarter, aiming for a simple yet powerful and flexible API. We
welcome ideas and suggestions in our
[community discussions](https://discord.gg/tUsBSVfqzf).
There's also extensive documentation work to make working with Loro enjoyable. A
potential indicator of success would be GPT generating sufficiently good code
based on our documentation.
Developing tools for developers is a challenging and exciting task. Many
developer tools and visualization methods in front-end development are
exceptionally good, and we hope to bring such experiences into the world of
CRDTs and local-first development. DevTools will reveal CRDTs' hidden states and
simplify control, making state maintenance and debugging a breeze.
We also plan to support richer CRDT semantics, including Movable Lists and
global undo/redo operations to support more diverse application scenarios.
## Seeking Collaborative Project Opportunities
Our design and optimization efforts need feedback from real-world applications.
If you are excited about a local-first future and think Loro can help you,
please contact us directly at [zx@loro.dev](mailto:zx@loro.dev). We're open to
collaboration and ready to help.
# FILE: pages/blog/loro-richtext.mdx
---
title: "Introduction to Loro's Rich Text CRDT"
date: 2024/01/22
keywords: "loro, crdt, rich text, peritext, event graph walker, eg-walker, fugue"
description:
This article presents the rich text CRDT algorithm implemented in Loro,
complying with Peritext's criteria for seamless rich text collaboration.
Furthermore, it can be built on top of any List CRDT algorithms and turn them
into rich text CRDTs.
image: https://i.ibb.co/rsX5vR6/cover-long.png
---
# Introduction to Loro's Rich Text CRDT
import Authors, { Author } from "components/authors";
import Caption from "components/caption";
import Demo from "@components/richtextDemo";
This article presents the rich text CRDT algorithm implemented in Loro,
complying with [Peritext]'s criteria for seamless rich text collaboration.
Furthermore, it can be built on top of any List CRDT algorithms and turn them
into rich text CRDTs.
Above is an online demo of Loro's rich text CRDT, built with Quill. After the
replay, you can simulate real-time collaboration and concurrent editing while
offline. You can also drag on the history view to replay the editing history.
If CRDTs are new to you, our article [What are CRDTs](/docs/concepts/crdt)
provides a brief introduction.
## Background
Loro is based on the
[Event Graph Walker (Eg-walker)](/docs/advanced/replayable_event_graph) algorithm
proposed by Joseph Gentle, but this algorithm cannot integrate the original
version of Peritext. This motivates us to create a new rich text algorithm. It
is independent of the specific List CRDTs, thus working nicely with Eg-walker, and is
developed on top of them to establish a rich text CRDT.
Before diving into the algorithm of Loro's rich text CRDT, I'd like to briefly
introduce Eg-walker and Peritext, and why Peritext cannot be used on Eg-walker.
Recap on List CRDTs
### Recap on List CRDTs
Unlike OT, most List-oriented CRDTs assign a unique ID to each item or
character, often corresponding to the operation ID of its insertion. With unique
IDs for each character, we can reliably reference a character or position
through its ID.
The unique ID eliminates concerns about consistent position descriptions during
synchronization. For instance, deletions are straightforward by specifying the
deleted character's ID, and insertions are described using the IDs of adjacent
characters. In cases of concurrent insertions at the same location, List CRDT
algorithms resolve the consistency issues.
However, a notable limitation of List CRDTs is the use of 'tombstones'. Upon
deletion of a character, it is not fully removed but replaced with a tombstone,
maintaining the ID's position. Depending on the algorithm, this tombstone may be
removed once all participating nodes acknowledge the deletion. However, it can
be challenging to determine if all peers have received the corresponding
deletion operation. This information often means additional overhead for many
CRDTs. Thus, the simplest solution is not to perform any tombstone collection.
### Brief Introduction to Event Graph Walker
Eg-walker is a novel CRDT algorithm introduced in:
> [Collaborative Text Editing with Eg-walker: Better, Faster, Smaller](https://arxiv.org/abs/2409.14252)
> By: Joseph Gentle, Martin Kleppmann
Eg-walker is a novel CRDT algorithm that combines the strengths of both OT and CRDTs.
It has the distributed nature of CRDT that enables P2P collaboration and data
ownership. Moreover, it achieves minimal overhead in scenarios devoid of
concurrent edits, similar to OT.
import { ReactPlayer } from "components/video";
Whether in real-time collaboration or multi-end synchronization, a directed
acyclic graph (DAG) forms over the history of these parallel edits, similar to
Git's history. The Eg-walker algorithm records the history of user edits on the DAG.
Unlike conventional CRDTs, Eg-walker can record just the original description of
operations, not the metadata of CRDTs. For instance, in text editing scenarios,
the [RGA algorithm] needs the op ID and [Lamport timestamp][Lamport] of the
character to the left to determine the insertion point. [Yjs]/Fugue, however,
requires the op ID of both the left and right characters at insertion. In
contrast, Eg-walker simplifies this by only recording the index at the time of
insertion. Loro, which uses [Fugue] upon Eg-walker, inherits these advantages.
An index is not a stable position descriptor, as the index of an operation can
be affected by other operations. For example, if you highlight content from
`index=x` to `index=y`, and concurrently someone inserts n characters at
`index=n` where `nWhat is Fugue
Fugue is a new CRDT text algorithm, presented in
_[The Art of the Fugue: Minimizing Interleaving in Collaborative Text Editing](https://arxiv.org/abs/2305.00583)_
by
[Matthew Weidner](https://arxiv.org/search/cs?searchtype=author&query=Weidner%2C+M)
et al., nicely solves **the interleaving problem**.
The interleaving problem was proposed in the paper
_[Interleaving anomalies in collaborative text editors](https://martin.kleppmann.com/2019/03/25/papoc-interleaving-anomalies.html)_
by Martin Kleppmann et al.
An example of interleaving:
- A type "Hello " from left to right/right to left
- B type "Hi " from left to right/right to left
- The expected result: "Hello Hi " or "Hi Hello "
- The interleaving result may look like: "HHeil lo"
- This happens when typing from right to left in RGA.
 CRDT on text content.
Source: **Martin Kleppmann, Victor B. F. Gomes, Dominic P. Mulligan, and Alastair R. Beresford. 2019. Interleaving anomalies in collaborative text editors. [https://doi.org/10.1145/3301419.3323972](https://doi.org/10.1145/3301419.3323972)](./images/richtext0.png)
An example of an interleaving anomaly when using
[fractional indexing](https://madebyevan.com/algos/crdt-fractional-indexing/)
CRDT on text content. Source: \*\*Martin Kleppmann, Victor B. F. Gomes, Dominic
P. Mulligan, and Alastair R. Beresford. 2019. Interleaving anomalies in
collaborative text editors.
[https://doi.org/10.1145/3301419.3323972](https://doi.org/10.1145/3301419.3323972)
The [Fugue paper](https://arxiv.org/abs/2305.00583) summarizes the current state
of the interleaving problems in the table.
Source: Weidner, M., Gentle, J., & Kleppmann, M. (2023). The Art of the Fugue:
Minimizing Interleaving in Collaborative Text Editing. _ArXiv_. /abs/2305.00583
The interleaving problem sometimes are unsolvable when there are more than 2
sites. See [Fugue](https://arxiv.org/abs/2305.00583) paper Appendix B, Proof of
Theorem 5 for detailed explanation.
The case where the interleaving problem is unsolvable Source: Weidner, M.,
Gentle, J., & Kleppmann, M. (2023). The Art of the Fugue: Minimizing
Interleaving in Collaborative Text Editing. _ArXiv_. /abs/2305.00583
However, we can still minimize the chance of interleaving. Fugue introduces the
concept of **maximal non-interleaving** and solves it with an elegant algorithm
that is easy to optimize. The definition of _maximal non-interleaving_ makes a
lot of sense to me and leaves little room for ambiguity. I won't reiterate the
definition here. But the basic idea is first to solve forward interleaving by
leftOrigin. If there is still ambiguity, then solve the backward interleaving by
rightOrigin. (The leftOrigin and rightOrigin refer to the ids of the original
neighbors when the character is inserted, just like Yjs)
### Brief Introduction to Peritext
[Peritext] was proposed by _Geoffrey Litt et al._ It's the first paper to
discuss rich text CRDTs. It can merge concurrent edits in rich text format while
[preserving users' intent as much as possible](https://www.inkandswitch.com/peritext/#preserving-the-authors-intent).
Its primary focus is merging the formats and annotations of rich text content,
such as bold, italic, and comments. It was implemented in [Automerge] and
[crdt-richtext].
> 💡 The specific definition of user intent in the context of concurrent rich
> text editing can't be clearly explained in a few words. It's best understood
> through particular examples.
Peritext is designed to solve a couple of significant challenges:
Firstly, it addresses the anticipated problems arising from conflicting style
edits. For instance, consider a text example, "The quick fox jumped." If User A
highlights "The quick" in bold and User B highlights "quick fox jumped," the
ideal merge should result in the entire sentence, "The quick fox jumped," being
bold. However, existing algorithms might not meet this expectation, resulting in
either "The quick fox" or "The" and "jumped" being bold instead.
| Original Text | The quick fox jumped |
| -------------------------------------------- | ---------------------------- |
| Concurrent Edit from A | **The quick** fox jumped |
| Concurrent Edit from B | The **quick fox jumped** |
| Expected Merged Result | **The quick fox jumped** |
| Bad case from merging Markdown text directly | **The** quick **fox jumped** |
| Bad case from Yjs | **The quick** fox jumped |
Additionally, Peritext manages conflicts between style and text edits. In the
same example, if User A highlights "The quick" in bold, but User B changes the
text to "The fast fox jumped," the ideal merge should result in "The fast" being
bold.
| Original Text | The quick fox jumped |
| ---------------------- | ------------------------ |
| Concurrent Edit from A | **The quick** fox jumped |
| Concurrent Edit from B | The fast fox jumped |
| Expected Merged Result | **The fast** fox jumped |
What’s more, Peritext takes into account different expectations for expanding
styles. For example, if you type after a bold text, you would typically want the
new text to continue being bold. However, if you're typing after a hyperlink or
a comment, you likely wouldn't want the new input to become part of the
hyperlink or comment.
Illustration of Peritext's internal state. It uses the IDs of the character's ops to record the style ranges. In the example, the bold mark has the range of `{ start: { type: "before", opId: "9@B" }, end: { type: "before", opId: "10@B" }}`
### Why Original Peritext Can't Be Directly Used with Eg-walker
On the one hand, Peritext's algorithm expresses style ranges
[through character OpIDs](https://www.inkandswitch.com/peritext/#generating-inline-formatting-operations).
Without replaying history, CRDTs based on Eg-walker cannot determine the specific
positions corresponding to these OpIDs.
On the other hand, it's not feasible to model Peritext on Eg-walker through replaying.
This is because Eg-walker's "local backtracking suffices" relies on the algorithm
satisfying "the same operation will produce the same effect, regardless of the
current state," which Peritext does not adhere to. For example, when inserting
the character "x" at position `p`, whether "x" is bold depends on "whether `p`
is surrounded by bold" and
"[whether the tombstones at `p` contain boundaries of bold and other styles](https://arc.net/l/quote/ifxpaand)."
## Loro's Rich Text CRDT
### Algorithm
Loro implements rich text using special control characters called 'style
anchors'. Each matching pair of start anchor and end anchor contains the
following information:
- The op ID of the style operation
- The style's key-value pair
- The style's [Lamport timestamp][Lamport]
- Style expansion behavior: Determines whether newly inserted text before or
after the style boundaries should inherit the style.
The method to determine a character's style is as follows:
- Find all style anchor pairs that include the character, where each pair is
created by the same style operation
- Aggregate pairs according to the key. There may be multiple style pairs with
the same key but different values. In such cases, the value with the greatest
Lamport timestamp is chosen (if Lamport timestamps are equal, then use the
peer ID to break the tie)
Contrary to
[Yjs's method of using control characters](https://www.inkandswitch.com/peritext/#adding-control-characters-to-plain-text)
for rich text, our algorithm pairs start and end anchors when they originate
from the same style operation. This approach accurately handles the following
scenarios:
These special control characters are not exposed to the user; each control
character is effectively of zero length from the user's perspective. Our data
structure supports various methods of measuring text length for indexing text
content. Besides Unicode, UTF-16, and UTF-8, we also measure our rich text
length in `Entity length`. It treats each style anchor as an entity with a
length of 1 and measures plain text in Unicode length.
| Concept | Definition |
| ----------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| Style Anchors | Control characters used in Loro denote style boundaries' start and end. They are differentiated into start and end anchors, representing a style's beginning and end. |
| Rich Text Element | A rich text element is either a span of text or a style anchor. A list of rich text elements represents the internal state of Loro's rich text. |
| Unicode Index | A method of indexing text positions in rich text. In this method, the length of the text is measured in Unicode char length, and the length of style anchors is considered 0. |
| Entity Index | A method of indexing text positions in rich text. In this method, the length of the text is measured in Unicode char length, and the length of a style anchor is considered 1. |
#### Local Behavior
Multiple valid insertion points can exist when users insert text at a specific
Unicode index. It occurs due to style anchors, which are zero-length elements
from the user's perspective.
For example, in the case of `Hello world`, when a user inserts content at
Unicode `index=5`, they face the choice of inserting to the left or right of
``. If the user sets the expand behavior of bold to expand forward, the new
character will be inserted to the left of ``, making the inserted text bold
as well.
When users delete text, Loro uses an additional mapping layer to avoid deleting
style anchors within the text range.
To model the deletion of a style, a new style anchor pair with a null value is
added.
We can implement the following optimizations to remove redundant style anchors:
- The style anchors that include no text can be removed.
- When styles completely negate each other, like a span of bold is canceled by a
span of unbold, we can remove their style anchors.
All these behaviors happen locally, and the algorithm is independent of the
specific List CRDT.
##### Behavior When Inserting Text at Style Boundaries
Most modern rich text editors (Google Doc, Microsoft Word, Notion) behave as
follows: when new text is entered right after bold text, the new text should
inherit the bold style; when entered after a hyperlink, the new content should
not inherit the hyperlink style. Different styles have varying preferences for
text insertion positions, leading to potential conflicts. This is reflected in
the degree of freedom we have when inserting new text.
Users interact with rich text based on text-based indexes, like the Unicode
index. Since style anchors have a Unicode Length of 0, a Unicode index with n
style anchors presents n + 1 potential insertion positions.
We select the insertion position based on the following rules:
1. Insertions occur before a start anchor of a style that should not expand
backward.
2. Insertions occur before style anchors that signify the end of bold-like marks
(expand = "after" or expand = "both").
3. Insertions occur after style anchors that signify the end of link-like marks
(expand = "none" or expand = "before").
Rule 1 should be prioritized over rules 2 and 3 to prevent
[the accidental creation of a new style](https://github.com/inkandswitch/peritext/issues/32).
The current method first scans forward to find the last position satisfying
rules 1 and 2.
Then, it scans backward to find the first position satisfying rule 3.
#### Merging Remote Updates
Loro treats style anchors as a special element and handles them using the same
List CRDT for resolving concurrent conflicts. The logic related to rich text is
independent of the particular List CRDT. Therefore, this algorithm can rely on
any List CRDT algorithm for merging remote operations. Loro utilizes the [Fugue]
List CRDT algorithm.
When new style anchors are inserted by remote updates, new styles are added; if
old style anchors are deleted, the corresponding old styles are removed.
#### Strong Eventual Consistency
The internal state of this algorithm consists of a list of elements, each either
a text segment or a style anchor. The rich text document is derived from this
internal state.
The internal state achieves strong eventual consistency through the upstream
List CRDT.
Identical internal states result in identical rich text documents. Hence, the
same set of updates will produce the same rich text documents, evidencing the
strong eventual consistency of this algorithm.
### Criteria in Peritext
[The Peritext paper](https://www.inkandswitch.com/peritext/static/cscw-publication.pdf)
specifies the intent-preserving merge behavior for rich text inline format.
Loro's rich text algorithm successfully passes all test cases outlined therein.
#### 1. Concurrent Formatting and Insertion
| Name | Text |
| :-------------- | :------------------ |
| Origin | Hello World |
| Concurrent A | **Hello World** |
| Concurrent B | Hello New World |
| Expected Result | **Hello New World** |
Loro easily supports this case by treating style anchors as special elements
alongside text.
#### 2. Overlapping Formatting
| Name | Text |
| :-------------- | :-------------- |
| Origin | Hello World |
| Concurrent A | **Hello** World |
| Concurrent B | Hel**lo World** |
| Expected Result | **Hello World** |
This case has been analyzed earlier. Since our style anchors contain style op ID
information, we know there are two bold segments: one from 0 to 5 and another
from 3 to 11, allowing us to merge them.
| Name | Text |
| :-------------- | :------------------ |
| Origin | Hello World |
| Concurrent A | **Hello** World |
| Concurrent B | Hel*lo World* |
| Expected Result | **Hel*lo*** _World_ |
Multiple style types are easily supported.
| Name | Text | Note |
| :-------------- | :--------------------------------------------------- | :------------------ |
| Origin | Hello World | |
| Concurrent A | **Hello World** Then **Hello** World | Bold, then unbold |
| Concurrent B | Hello Wor**ld** | |
| Expected Result | **Hello** Wor**ld** Or **Hello** World | Both are acceptable |
Like Peritext, we model unbolding by adding a new style with the key `bold` and
the value `null`. The final value of each style key on each character is
determined by the style with the greatest [Lamport] timestamp that includes the
character. Thus, it easily supports this case.
#### 3. Text Insertion at Span Boundaries
Insertion right after a bold style should result in the newly inserted text also
being bold.
However, insertion right after a link style should result in the newly inserted
text not having the hyperlink style.
#### 4. Styles that Support Overlapping
The problem of overlapping styles is related to how we represent them.
We represent the rich text using
[Quill's Delta](https://quilljs.com/docs/delta/) format.
```ts
[
{ insert: "Gandalf", attributes: { bold: true } },
{ insert: " the " },
{ insert: "Grey", attributes: { color: "#cccccc" } },
];
```
An example of Quill's Delta format
However, it cannot handle cases with multiple values assigned to the same key.
So, it's a headache to handle the styles that support overlapping.
For example, in the above case, the text "fox" is commented on by both Alice and
Bob. We can't represent it with Quill's Delta format directly. So the possible
workaround includes:
**Turn the attribute value into a list**
```ts no-run
[
{ insert: "The ", attributes: { comment: [{ ...commentA }] } },
{
insert: "fox",
attributes: { comment: [{ ...commentA }, { ...commentB }] },
},
{ insert: " jumped", attributes: { comment: [{ ...commentB }] } },
];
```
**Use op ID that creates the op as the key of the attribute**
```ts no-run
[
{ insert: "The ", attributes: { "id:0@A": { key: "comment", ...commentA } } },
{
insert: "fox",
attributes: {
"id:0@A": { key: "comment", ...commentA },
"id:0@B": { key: "comment", ...commentB },
},
},
{
insert: " jumped",
attributes: { "id:0@B": { key: "comment", ...commentA } },
},
];
```
But both require special behaviors for both CRDT lib and for application code,
which are painful to work with.
Finally, we found that the optimal approach to represent an overlappable style
was to use `:` as a prefix and allow users to assign a unique suffix to
create a distinct style key. This method simplifies the CRDTs library code, as
it doesn't require handling special cases. It effectively addresses scenarios
where multiple comments overlap and is also user-friendly for application
coding.
```ts
[
{ insert: "The ", attributes: { "comment:alice": "Hi" } },
{
insert: "fox",
attributes: { "comment:alice": "Hi", "comment:bob": "Jump" },
},
{ insert: " jumped", attributes: { "comment:bob": "Jump" } },
];
```
Following is the example code in Loro:
```ts
const doc = new Loro();
doc.configTextStyle({
comment: { expand: "none" },
});
const text = doc.getText("text");
text.insert(0, "The fox jumped.");
text.mark({ start: 0, end: 7 }, "comment:alice", "Hi");
text.mark({ start: 4, end: 14 }, "comment:bob", "Jump");
expect(text.toDelta()).toStrictEqual([
{
insert: "The ",
attributes: { "comment:alice": "Hi" },
},
{
insert: "fox",
attributes: {
"comment:alice": "Hi",
"comment:bob": "Jump",
},
},
{
insert: " jumped",
attributes: { "comment:bob": "Jump" },
},
{
insert: ".",
},
]);
```
## Implementation of Loro's Rich Text Algorithm
The following is an overview of Loro's implementation as of January, 2024.
### Architecture of Loro
In line with the properties of Event Graph Walker, Loro uses `OpLog` and
`DocState` as the internal state.
`OpLog` is dedicated to recording history, while `DocState` only records the
current document state and does not include historical operation information.
When applying updates from remote sources, Loro uses the relevant operations
from `OpLog` and computes the diff through a `DiffCalculator`. This diff is then
applied to `DocState`. This architecture also makes time travel easier to
implement.
For more details, see the documentation on
[DocState and OpLog](https://loro.dev/docs/advanced/doc_state_and_oplog).
### Implementation of Loro's Rich Text CRDT
For rich text, Loro reuses the same `DiffCalculator` as Loro List, based on the
[Fugue] algorithm. As a result, the primary logic related to rich text is
concentrated in `DocState`. This includes expressing styles, inserting new
characters, and representing multiple index formats.
In the representation of rich text state, we distinguish between the data
structure `ContentTree`, which expresses the text (including style anchors), and
`StyleRangeMap`, which expresses styles.
Both structures are built on B+Trees.
`ContentTree` is responsible for efficient text finding, insertion, and
deletion. It can index specific insertion/deletion positions using
Unicode/UTF-8/UTF-16/Entity index. It does not store what specific style each
text segment should have.
We built the following B+Tree structure based on our
[generic-btree library](https://github.com/loro-dev/generic-btree) to express
text in memory:
- Each internal node in the B+Tree stores the Unicode char length, UTF-16
length, UTF-8 length, and Entity length of its subtree. The Entity length
considers the length of style anchors as 1, otherwise 0.
- The leaf nodes of the B+Tree are text or style anchors.
`StyleRangeMap` is responsible for efficient updating/querying of style ranges.
In the `StyleRangeMap` B+Tree expressing styles:
- Each internal node stores the `entity length` of its subtree.
- Each leaf node stores the collection of style information for the
corresponding range and its `entity length.
Separating the text `ContentTree` and style `StyleRangeMap` into two structures
aims for better performance optimization. On rich text, style information is
often not abundant and tends to have good continuity, such as several paragraphs
having the same format, which can be expressed with a single leaf node. However,
our structure for storing text is unsuitable for leaf nodes with large content,
as conversion time between different encoding formats would become excessively
long.
When a user inserts a new character at `Unicode index` = i, the following
occurs:
- Find the position at `Unicode index` = i in `ContentTree`.
- Check if there are any adjacent style anchors at this position. If not,
directly insert.
- If there are, decide whether to insert to the left or right of the
corresponding style anchor based on its type and properties. If there are
multiple such style anchors, insert them according to the previous section on
["Behavior When Inserting Text at Style Boundaries"](#behavior-when-inserting-text-at-style-boundaries).
### Testing
We have written tests for the criteria proposed by Peritext and passed all of
them.
To ensure the correctness of our CRDTs, we have added numerous fuzzing tests to
simulate different collaborative behaviors, synchronization behaviors, and
time-travel behaviors. These tests check for the strong eventual consistency and
the correctness of internal invariants. We run these fuzzing tests continuously
for several days after every critical modification to avoid oversights.
## How to Use
Before using the Loro's rich text module, it is necessary to define the
configuration for rich text styles, specifying the expand behavior for different
keys and whether overlap is allowed.
Here is an example of using Loro's rich text in JavaScript:
```typescript
const doc = new Loro();
doc.configTextStyle({
bold: {
expand: "after",
},
comment: {
expand: "none",
overlap: true,
},
link: {
expand: "none",
},
});
const text = doc.getText("text");
text.insert(0, "Hello world!");
text.mark({ start: 0, end: 5 }, "bold", true);
expect(text.toDelta()).toStrictEqual([
{
insert: "Hello",
attributes: { bold: true },
},
{
insert: " world!",
},
] as Delta[]);
text.insert(5, "!");
expect(text.toDelta()).toStrictEqual([
{
insert: "Hello!",
attributes: { bold: true },
},
{
insert: " world!",
},
] as Delta[]);
```
## Summary
This article presents Loro's rich text algorithm design and implementation. Its
correctness is readily demonstrable. It can be built upon any existing List CRDT
algorithm. It allows Loro to support rich text collaboration using
[Eg-walker](#brief-introduction-to-replayable-event-graph) and [Fugue], combining the
strengths of multiple CRDT algorithms.
We are continuously refining its design and actively seeking design partners. We
are open to all forms of feedback and constructive criticism. Should you have
any proposals for collaboration, please reach out to zx@loro.dev
[Peritext]: https://www.inkandswitch.com/peritext/
[Fugue]: https://arxiv.org/abs/2305.00583
[Lamport]: https://en.wikipedia.org/wiki/Lamport_timestamp
[RGA algorithm]: https://www.sciencedirect.com/science/article/abs/pii/S0743731510002716
[Yjs]: https://github.com/yjs/yjs
[Automerge]: https://github.com/automerge/automerge
[crdt-richtext]: https://github.com/loro-dev/crdt-richtext
# FILE: pages/blog/crdt-richtext.mdx
---
title: crdt-richtext - Rust implementation of Peritext and Fugue
date: 2023/04/20
keywords: crdt, richtext, peritext, fugue, loro
description: Presenting a new Rust crate that combines Peritext and Fugue's power with impressive performance, tailored specifically for rich text. This crate's functionality is set to be incorporated into Loro, a general-purpose CRDT library currently under development.
tag: richtext
# ogImage: /images/blog/joining-vercel/x-card.png
---
# [crdt-richtext](https://github.com/loro-dev/crdt-richtext): Rust implementation of Peritext and Fugue
import Authors, { Author } from "components/authors";
Presenting a new Rust crate that combines [Peritext](https://inkandswitch.com/peritext) and [Fugue](https://arxiv.org/abs/2305.00583)'s power with impressive performance, tailored specifically for rich text. This crate's functionality is set to be incorporated into **[Loro](https://www.loro.dev/)**, a general-purpose CRDT library currently under development.
# What’s Peritext
[Peritext: A CRDT for Rich-Text Collaboration](https://inkandswitch.com/peritext)
Peritext is a novel rich-text CRDT (Conflict-free Replicated Data Type) algorithm. It is capable of merging concurrent edits in rich text format while [preserving users' intent as much as possible](https://www.inkandswitch.com/peritext/#preserving-the-authors-intent). Its primary focus is on merging the formats and annotations of rich text content, such as bold, italic, and comments.
> 💡 The specific definition of user intent in the context of concurrent rich text editing can't be clearly explained in a few words. it's best understood through specific examples.
Peritext is designed to solve a couple of significant challenges:
Firstly, it addresses the anticipated problems arising from conflicting style edits. For instance, consider a text example, "The quick fox jumped." If User A highlights "The quick" in bold and User B highlights "quick fox jumped," the ideal merge should result in the entire sentence, "The quick fox jumped," being bold. However, existing algorithms might not meet this expectation, resulting in either "The quick fox" or "The" and "jumped" being bold instead.
| Original Text | The quick fox jumped |
| -------------------------------------------- | ---------------------------- |
| Concurrent Edit from A | **The quick** fox jumped |
| Concurrent Edit from B | The **quick fox jumped** |
| Expected Merged Result | **The quick fox jumped** |
| Bad case from merging Markdown text directly | **The** quick **fox jumped** |
| Bad case from Yjs | **The quick** fox jumped |
Additionally, Peritext manages conflicts between style and text edits. In the same example, if User A highlights "The quick" in bold, but User B changes the text to "The fast fox jumped," the ideal merge should result in "The fast" being bold.
| Original Text | The quick fox jumped |
| ---------------------- | ------------------------ |
| Concurrent Edit from A | **The quick** fox jumped |
| Concurrent Edit from B | The fast fox jumped |
| Expected Merged Result | **The fast** fox jumped |
What’s more, Peritext takes into account different expectations for expanding styles. For example, if you type after a bold text, you would typically want the new text to continue being bold. However, if you're typing after a hyperlink or a comment, you likely wouldn't want the new input to become part of the hyperlink or comment.
# What’s Fugue
Fugue is a new CRDT text algorithm, presented in _[The Art of the Fugue: Minimizing Interleaving in Collaborative Text Editing](https://arxiv.org/abs/2305.00583)_ by [Matthew Weidner](https://arxiv.org/search/cs?searchtype=author&query=Weidner%2C+M) et al., nicely solves **the interleaving problem**.
## The interleaving problem
The interleaving problem was proposed in the paper _[Interleaving anomalies in collaborative text editors](https://martin.kleppmann.com/2019/03/25/papoc-interleaving-anomalies.html)_ by Martin Kleppmann et al.
An example of interleaving:
- A type "Hello " from left to right/right to left
- B type "Hi " from left to right/right to left
- The expected result: "Hello Hi " or "Hi Hello "
- The interleaving result may look like: "HHeil lo"
- This happens when typing from right to left in RGA.
 CRDT on text content.
Source: **Martin Kleppmann, Victor B. F. Gomes, Dominic P. Mulligan, and Alastair R. Beresford. 2019. Interleaving anomalies in collaborative text editors. [https://doi.org/10.1145/3301419.3323972](https://doi.org/10.1145/3301419.3323972)](./images/richtext0.png)
An example of an interleaving anomaly when using [fractional indexing](https://madebyevan.com/algos/crdt-fractional-indexing/) CRDT on text content.
Source: \*\*Martin Kleppmann, Victor B. F. Gomes, Dominic P. Mulligan, and Alastair R. Beresford. 2019. Interleaving anomalies in collaborative text editors. [https://doi.org/10.1145/3301419.3323972](https://doi.org/10.1145/3301419.3323972)
The [Fugue paper](https://arxiv.org/abs/2305.00583) summarizes the current state of the interleaving problems in the table.
Source: Weidner, M., Gentle, J., & Kleppmann, M. (2023). The Art of the Fugue: Minimizing Interleaving in Collaborative Text Editing. _ArXiv_. /abs/2305.00583
The interleaving problem sometimes are unsolvable when there are more than 2 sites. See [Fugue](https://arxiv.org/abs/2305.00583) paper Appendix B, Proof of Theorem 5 for detailed explanation.
The case where the interleaving problem is unsolvable
Source: Weidner, M., Gentle, J., & Kleppmann, M. (2023). The Art of the Fugue: Minimizing Interleaving in Collaborative Text Editing. _ArXiv_. /abs/2305.00583
However, we can still minimize the chance of interleaving. Fugue introduces the concept of **maximal non-interleaving** and solves it with an elegant algorithm that is easy to optimize. The definition of _maximal non-interleaving_ makes a lot of sense to me and leaves little room for ambiguity. I won't reiterate the definition here. But the basic idea is first to solve forward interleaving by leftOrigin. If there is still ambiguity, then solve the backward interleaving by rightOrigin. (The leftOrigin and rightOrigin refer to the ids of the original neighbors when the character is inserted, just like Yjs)
# CRDT-Richtext
Based on the algorithms of Peritext and Fugue, we made `crdt-richtext`, a lib written in Rust that provides a wasm interface. It’s available on [crates.io](http://crates.io) and npm now.
## Example
```tsx
import { RichText } from "crdt-richtext-wasm";
const text = new RichText(BigInt(1));
text.insert(0, "你好，世界！");
text.insert(2, "呀");
expect(text.toString()).toBe("你好呀，世界！");
text.annotate(0, 3, "bold", AnnotateType.BoldLike);
const spans = text.getAnnSpans();
expect(spans.length).toBe(2);
expect(spans[0].text).toBe("你好呀");
expect(spans[0].annotations.size).toBe(1);
expect(spans[0].annotations.has("bold")).toBeTruthy();
expect(spans[1].text.length).toBe(4);
const b = new RichText(BigInt(2));
b.import(text.export(new Uint8Array()));
expect(b.toString()).toBe("你好呀，世界！");
```
## Data structure
We heavily use B-Trees to optimize our algorithm. We made a library called [generic-btree](https://github.com/loro-dev/generic-btree), which is written in safe Rust code, which provides a flexible foundation for our optimization efforts.
[https://github.com/loro-dev/generic-btree](https://github.com/loro-dev/generic-btree)
The cached content inside B-Tree
There are several common tasks we need to address in Text CRDT, including:
- Finding, inserting, or deleting content at a given index:
- We use a BTree to look up and update the content
- The time complexity is O(logN), where N is the length of the content
- Finding content with a given op ID:
- We use a combination of HashMap and BTree
- The time complexity if O(logN), where N is the number of operations
- Compressing content in memory:
- To reduce the amount of memory used by storing every operation in raw format, we compress the content using the RLE tricks from Yjs and DiamondTypes.
- The insight behind this compression is that neighboring inserts and deletions tend to be continuous, so we can merge them and store less metadata.
- Commonly, every leaf node in the diagram contains a dozen of characters
- Converting index between UTF-16 and UTF-8:
- In JS, the default encoding of a string is utf16, but in Rust, the default one is utf8. Although the WASM interface can help us convert the encoding of the string, we still need to convert the _index_ of the operation.
- To solve this, `crdt-richtext` also store the UTF-16 length of the content in B-Tree. So we can query the B-Tree with either the utf8 index or the utf16 index.
- Storing the boundary of style/format/comments:
- We use the same B-Tree to store the boundary, with each subtree corresponding to a span of text or tombstones. For each node in the tree, we store which annotations start before it, start after it, end before it, or end after it.
```rust
#[derive(Debug, PartialEq, Eq, Default, Clone)]
pub struct ElemAnchorSet {
start_before: FxHashSet,
end_before: FxHashSet,
start_after: FxHashSet,
end_after: FxHashSet,
}
```
- This is basically the same optimization as Peritext, except we do it on the tree.
## Encoding
We use columnar encoding, which was first adopted to CRDTs by Martin Kelppmann [in automerge](https://github.com/automerge/automerge-classic/pull/253). To make it easier in Rust, we created the lib [Serde Columnar: Ergonomic columnar storage encoding crate](https://www.notion.so/Serde-Columnar-Ergonomic-columnar-storage-encoding-crate-7b0c86d6f8d24e4da45a1e2ebd86741c?pvs=21).
## Heavily tested by libFuzzer
Test-Driven Development (TDD) provides an amazing development experience. If possible, I always write unit tests for a standalone module before moving forward. However, for algorithms like CRDTs, it is infeasible to list all possible cases manually but is easy to generate test cases automatically. This is where fuzzing tests come into play.
Some fuzzers can track coverage information and generate mutations on the input data to maximize code coverage. LibFuzzer can also identify memory leaks and UAF problems.
`[cargo-fuzz`](https://www.notion.so/crdt-richtext-Rust-implementation-of-Peritext-and-Fugue-c49ef2a411c0404196170ac8daf066c0?pvs=21) provides a user-friendly API for writing fuzzing tests, and it supports two fuzzers: libFuzzer and AFL. It makes the unstructured libFuzzer feel structured. So we’re able to write fuzzing tests in this way
```rust
use arbitrary::Arbitrary;
#[derive(Arbitrary, Clone, Debug, Copy)]
pub enum Action {
Insert {
actor: u8,
pos: u8,
content: u16,
},
Delete {
actor: u8,
pos: u8,
len: u8,
},
Annotate {
actor: u8,
pos: u8,
len: u8,
annotation: AnnotationType,
},
Sync(u8, u8),
}
pub fn fuzzing(actions: Vec) {
// run tests based on actions
...
}
#![no_main]
use libfuzzer_sys::fuzz_target;
fuzz_target!(|actions: [Action; 100]| { fuzzing(actions.to_vec()) });
```
We will run millions of Fuzzing Tests after making big changes. The fuzzer can help us extract the most useful thousands of tests to be included into the corpus. The minor changes can be verified by running the corpus.
We use fuzzing tests in Loro's CRDTs too. This test suite is like our safety net when we're making big tweaks to the code. It's great at spotting all our little slip-ups.
# Performance
## Benchmark
- Benchmark setup
### **B4: Real-world editing dataset**
Replay a real-world editing dataset. This dataset contains the character-by-character editing trace of a large-ish text document, the LaTeX source of this paper: [https://arxiv.org/abs/1608.03960(opens in a new tab)](https://arxiv.org/abs/1608.03960)
Source: [https://github.com/automerge/automerge-perf/tree/master/edit-by-index(opens in a new tab)](https://github.com/automerge/automerge-perf/tree/master/edit-by-index)
- 182,315 single-character insertion operations
- 77,463 single-character deletion operations
- 259,778 operations totally
- 104,852 characters in the final document
We simulate one client replaying all changes and storing each update. We measure the time to replay the changes and the size of all update messages (`updateSize`), the size of the encoded document after the task is performed (`docSize`), the time to encode the document (`encodeTime`), the time to parse the encoded document (`parseTime`), and the memory used to hold the decoded document in memory (`memUsed`).
### **[B4 x 100] Real-world editing dataset 100 times**
Replay the [B4] dataset one hundred times. The final document has a size of over 10 million characters. As comparison, the book "Game of Thrones: A Song of Ice and Fire" is only 1.6 million characters long (including whitespace).
- 18,231,500 single-character insertion operations
- 7,746,300 single-character deletion operations
- 25,977,800 operations totally
- 10,485,200 characters in the final document
The benchmark was conducted on a 2020 M1 MacBook Pro 13-inch on 2023-05-11.
| N=6000 | crdt-richtext-wasm | loro-wasm | automerge-wasm | tree-fugue | yjs | ywasm |
| ---------------------------------------------------------------- | ---------------------- | ----------------------- | ------------------- | --------------------------- | ---------------------------- | ------------------- |
| [B4] Apply real-world editing dataset (time) | 176 +/- 10 ms | 141 +/- 15 ms | 821 +/- 7 ms | 721 +/- 15 ms | 1,114 +/- 33 ms | 23,419 +/- 102 ms |
| [B4] Apply real-world editing dataset (memUsed) | skipped | skipped | skipped | 2,373,909 +/- 13725 bytes | 3,480,708 +/- 168887 bytes | skipped |
| [B4] Apply real-world editing dataset (encodeTime) | 8 +/- 1 ms | 8 +/- 1 ms | 115 +/- 2 ms | 12 +/- 0 ms | 12 +/- 1 ms | 6 +/- 1 ms |
| [B4] Apply real-world editing dataset (docSize) | 127,639 +/- 0 bytes | 255,603 +/- 8 bytes | 129,093 +/- 0 bytes | 167,873 +/- 0 bytes | 159,929 +/- 0 bytes | 159,929 +/- 0 bytes |
| [B4] Apply real-world editing dataset (parseTime) | 11 +/- 0 ms | 2 +/- 0 ms | 620 +/- 5 ms | 8 +/- 0 ms | 43 +/- 3 ms | 40 +/- 3 ms |
| [B4x100] Apply real-world editing dataset 100 times (time) | 15,324 +/- 3188 ms | 12,436 +/- 444 ms | skipped | 91,902 +/- 863 ms | 112,563 +/- 3861 ms | skipped |
| [B4x100] Apply real-world editing dataset 100 times (memUsed) | skipped | skipped | skipped | 224076566 +/- 2812359 bytes | 318807378 +/- 15737245 bytes | skipped |
| [B4x100] Apply real-world editing dataset 100 times (encodeTime) | 769 +/- 37 ms | 780 +/- 32 ms | skipped | 943 +/- 52 ms | 297 +/- 16 ms | skipped |
| [B4x100] Apply real-world editing dataset 100 times (docSize) | 12,667,753 +/- 0 bytes | 26,634,606 +/- 80 bytes | skipped | 17,844,936 +/- 0 bytes | 15,989,245 +/- 0 bytes | skipped |
| [B4x100] Apply real-world editing dataset 100 times (parseTime) | 1,252 +/- 14 ms | 170 +/- 15 ms | skipped | 368 +/- 13 ms | 1,335 +/- 238 ms | skipped |
The complete benchmark result and code is available at https://github.com/zxch3n/fugue-bench.
It is worth noting that:
- The benchmark for Automerge is based on `automerge-wasm`, which is not the latest version of Automerge 2.0.
- `crdt-richtext` and `fugue` are special-purpose CRDTs that tend to be faster and have a smaller encoding size.
- The encoding of `yjs`, `ywasm`, and `loro-wasm` still contains redundancy that can be compressed significantly. For more details, see [the full report](https://loro.dev/docs/performance/docsize).
- loro-wasm and fugue only support plain text for now
# Discussion
[CRDT-richtext: Rust implementation of Peritext and Fugue | Hacker News](https://news.ycombinator.com/item?id=35988046)
# FILE: pages/about.mdx
# About
Loro, created by [Zixuan Chen](http://github.com/zxch3n) and
[Leon Zhao](https://github.com/Leeeon233) in 2022, has the vision of empowering
local-first software and simplifying the creation of collaborative applications.
# Contact
- Zixuan Chen, zx@loro.dev
- Leon Zhao, lz@loro.dev
# Credits
- [Diamond-types](https://github.com/josephg/diamond-types): The ingenious OT-like merging algorithm from [@josephg](https://github.com/josephg) has been adapted to reduce the computation and space usage of CRDTs.
- [Automerge](https://github.com/automerge/automerge): Their use of columnar encoding for CRDTs has informed our strategies for efficient data encoding.
- [Yjs](https://github.com/yjs/yjs): We have incorporated a similar algorithm for effectively merging collaborative editing operations, thanks to their pioneering contributions.
- [Matthew Weidner](https://mattweidner.com/): His work on the [Fugue](https://arxiv.org/abs/2305.00583) algorithm has been invaluable, enhancing our text editing capabilities.
# FILE: node_modules/loro-crdt/nodejs/loro_wasm.d.ts
/* tslint:disable */
/* eslint-disable */
/**
* Get the version of Loro
*/
export function LORO_VERSION(): string;
export function run(): void;
export function encodeFrontiers(frontiers: ({ peer: PeerID, counter: number })[]): Uint8Array;
export function decodeFrontiers(bytes: Uint8Array): { peer: PeerID, counter: number }[];
/**
* Enable debug info of Loro
*/
export function setDebug(): void;
/**
* Decode the metadata of the import blob.
*
* This method is useful to get the following metadata of the import blob:
*
* - startVersionVector
* - endVersionVector
* - startTimestamp
* - endTimestamp
* - mode
* - changeNum
*/
export function decodeImportBlobMeta(blob: Uint8Array, check_checksum: boolean): ImportBlobMetadata;
/**
* Container types supported by loro.
*
* It is most commonly used to specify the type of sub-container to be created.
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* const text = list.insertContainer(1, new LoroText());
* ```
*/
export type ContainerType = "Text" | "Map" | "List"| "Tree" | "MovableList" | "Counter";
export type PeerID = `${number}`;
/**
* The unique id of each container.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* const containerId = list.id;
* ```
*/
export type ContainerID =
| `cid:root-${string}:${ContainerType}`
| `cid:${number}@${PeerID}:${ContainerType}`;
/**
* The unique id of each tree node.
*/
export type TreeID = `${number}@${PeerID}`;
interface LoroDoc {
/**
* Export updates from the specific version to the current version
*
* @deprecated Use `export({mode: "update", from: version})` instead
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* // get all updates of the doc
* const updates = doc.exportFrom();
* const version = doc.oplogVersion();
* text.insert(5, " World");
* // get updates from specific version to the latest version
* const updates2 = doc.exportFrom(version);
* ```
*/
exportFrom(version?: VersionVector): Uint8Array;
/**
*
* Get the container corresponding to the container id
*
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* let text = doc.getText("text");
* const textId = text.id;
* text = doc.getContainerById(textId);
* ```
*/
getContainerById(id: ContainerID): Container | undefined;
/**
* Subscribe to updates from local edits.
*
* This method allows you to listen for local changes made to the document.
* It's useful for syncing changes with other instances or saving updates.
*
* @param f - A callback function that receives a Uint8Array containing the update data.
* @returns A function to unsubscribe from the updates.
*
* @example
* ```ts
* const loro = new Loro();
* const text = loro.getText("text");
*
* const unsubscribe = loro.subscribeLocalUpdates((update) => {
* console.log("Local update received:", update);
* // You can send this update to other Loro instances
* });
*
* text.insert(0, "Hello");
* loro.commit();
*
* // Later, when you want to stop listening:
* unsubscribe();
* ```
*
* @example
* ```ts
* const loro1 = new Loro();
* const loro2 = new Loro();
*
* // Set up two-way sync
* loro1.subscribeLocalUpdates((updates) => {
* loro2.import(updates);
* });
*
* loro2.subscribeLocalUpdates((updates) => {
* loro1.import(updates);
* });
*
* // Now changes in loro1 will be reflected in loro2 and vice versa
* ```
*/
subscribeLocalUpdates(f: (bytes: Uint8Array) => void): () => void
/**
* Subscribe to the first commit from a peer. Operations performed on the `LoroDoc` within this callback
* will be merged into the current commit.
*
* This is useful for managing the relationship between `PeerID` and user information.
* For example, you could store user names in a `LoroMap` using `PeerID` as the key and the `UserID` as the value.
*
* @param f - A callback function that receives a peer id.
*
* @example
* ```ts
* const doc = new LoroDoc();
* doc.setPeerId(0);
* const p = [];
* doc.subscribeFirstCommitFromPeer((peer) => {
* p.push(peer);
* doc.getMap("map").set(e.peer, "user-" + e.peer);
* });
* doc.getList("list").insert(0, 100);
* doc.commit();
* doc.getList("list").insert(0, 200);
* doc.commit();
* doc.setPeerId(1);
* doc.getList("list").insert(0, 300);
* doc.commit();
* expect(p).toEqual(["0", "1"]);
* expect(doc.getMap("map").get("0")).toBe("user-0");
* ```
**/
subscribeFirstCommitFromPeer(f: (e: { peer: PeerID }) => void): () => void
/**
* Subscribe to the pre-commit event.
*
* The callback will be called when the changes are committed but not yet applied to the OpLog.
* You can modify the commit message and timestamp in the callback by `ChangeModifier`.
*
* @example
* ```ts
* const doc = new LoroDoc();
* doc.subscribePreCommit((e) => {
* e.modifier.setMessage("test").setTimestamp(Date.now());
* });
* doc.getList("list").insert(0, 100);
* doc.commit();
* expect(doc.getChangeAt({ peer: "0", counter: 0 }).message).toBe("test");
* ```
*
* ### Advanced Example: Creating a Merkle DAG
*
* By combining `doc.subscribePreCommit` with `doc.exportJsonInIdSpan`, you can implement advanced features like representing Loro's editing history as a Merkle DAG:
*
* ```ts
* const doc = new LoroDoc();
* doc.setPeerId(0);
* doc.subscribePreCommit((e) => {
* const changes = doc.exportJsonInIdSpan(e.changeMeta)
* expect(changes).toHaveLength(1);
* const hash = crypto.createHash('sha256');
* const change = {
* ...changes[0],
* deps: changes[0].deps.map(d => {
* const depChange = doc.getChangeAt(idStrToId(d))
* return depChange.message;
* })
* }
* console.log(change); // The output is shown below
* hash.update(JSON.stringify(change));
* const sha256Hash = hash.digest('hex');
* e.modifier.setMessage(sha256Hash);
* });
*
* doc.getList("list").insert(0, 100);
* doc.commit();
* // Change 0
* // {
* // id: '0@0',
* // timestamp: 0,
* // deps: [],
* // lamport: 0,
* // msg: undefined,
* // ops: [
* // {
* // container: 'cid:root-list:List',
* // content: { type: 'insert', pos: 0, value: [100] },
* // counter: 0
* // }
* // ]
* // }
*
*
* doc.getList("list").insert(0, 200);
* doc.commit();
* // Change 1
* // {
* // id: '1@0',
* // timestamp: 0,
* // deps: [
* // '2af99cf93869173984bcf6b1ce5412610b0413d027a5511a8f720a02a4432853'
* // ],
* // lamport: 1,
* // msg: undefined,
* // ops: [
* // {
* // container: 'cid:root-list:List',
* // content: { type: 'insert', pos: 0, value: [200] },
* // counter: 1
* // }
* // ]
* // }
*
* expect(doc.getChangeAt({ peer: "0", counter: 0 }).message).toBe("2af99cf93869173984bcf6b1ce5412610b0413d027a5511a8f720a02a4432853");
* expect(doc.getChangeAt({ peer: "0", counter: 1 }).message).toBe("aedbb442c554ecf59090e0e8339df1d8febf647f25cc37c67be0c6e27071d37f");
* ```
*
* @param f - A callback function that receives a pre commit event.
*
**/
subscribePreCommit(f: (e: { changeMeta: Change, origin: string, modifier: ChangeModifier }) => void): () => void
/**
* Convert the document to a JSON value with a custom replacer function.
*
* This method works similarly to `JSON.stringify`'s replacer parameter.
* The replacer function is called for each value in the document and can transform
* how values are serialized to JSON.
*
* @param replacer - A function that takes a key and value, and returns how that value
* should be serialized. Similar to JSON.stringify's replacer.
* If return undefined, the value will be skipped.
* @returns The JSON representation of the document after applying the replacer function.
*
* @example
* ```ts
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* text.mark({ start: 0, end: 2 }, "bold", true);
*
* // Use delta to represent text
* const json = doc.toJsonWithReplacer((key, value) => {
* if (value instanceof LoroText) {
* return value.toDelta();
* }
*
* return value;
* });
* ```
*/
toJsonWithReplacer(replacer: (key: string | index, value: Value | Container) => Value | Container | undefined): Value;
/**
* Calculate the differences between two frontiers
*
* The entries in the returned object are sorted by causal order: the creation of a child container will be
* presented before its use.
*
* @param from - The source frontier to diff from. A frontier represents a consistent version of the document.
* @param to - The target frontier to diff to. A frontier represents a consistent version of the document.
* @param for_json - Controls the diff format:
* - If true, returns JsonDiff format suitable for JSON serialization
* - If false, returns Diff format that shares the same type as LoroEvent
* - The default value is `true`
*/
diff(from: OpId[], to: OpId[], for_json: false): [ContainerID, Diff][];
diff(from: OpId[], to: OpId[], for_json: true): [ContainerID, JsonDiff][];
diff(from: OpId[], to: OpId[], for_json: undefined): [ContainerID, JsonDiff][];
diff(from: OpId[], to: OpId[], for_json?: boolean): [ContainerID, JsonDiff|Diff][];
}
/**
* Represents a `Delta` type which is a union of different operations that can be performed.
*
* @typeparam T - The data type for the `insert` operation.
*
* The `Delta` type can be one of three distinct shapes:
*
* 1. Insert Operation:
* - `insert`: The item to be inserted, of type T.
* - `attributes`: (Optional) A dictionary of attributes, describing styles in richtext
*
* 2. Delete Operation:
* - `delete`: The number of elements to delete.
*
* 3. Retain Operation:
* - `retain`: The number of elements to retain.
* - `attributes`: (Optional) A dictionary of attributes, describing styles in richtext
*/
export type Delta =
| {
insert: T;
attributes?: { [key in string]: {} };
retain?: undefined;
delete?: undefined;
}
| {
delete: number;
attributes?: undefined;
retain?: undefined;
insert?: undefined;
}
| {
retain: number;
attributes?: { [key in string]: {} };
delete?: undefined;
insert?: undefined;
};
/**
* The unique id of each operation.
*/
export type OpId = { peer: PeerID, counter: number };
/**
* Change is a group of continuous operations
*/
export interface Change {
peer: PeerID,
counter: number,
lamport: number,
length: number,
/**
* The timestamp in seconds.
*
* [Unix time](https://en.wikipedia.org/wiki/Unix_time)
* It is the number of seconds that have elapsed since 00:00:00 UTC on 1 January 1970.
*/
timestamp: number,
deps: OpId[],
message: string | undefined,
}
/**
* Data types supported by loro
*/
export type Value =
| ContainerID
| string
| number
| boolean
| null
| { [key: string]: Value }
| Uint8Array
| Value[]
| undefined;
export type IdSpan = {
peer: PeerID,
counter: number,
length: number,
}
export type VersionVectorDiff = {
/**
* The spans that the `from` side needs to retreat to reach the `to` side
*
* These spans are included in the `from`, but not in the `to`
*/
retreat: IdSpan[],
/**
* The spans that the `from` side needs to forward to reach the `to` side
*
* These spans are included in the `to`, but not in the `from`
*/
forward: IdSpan[],
}
export type UndoConfig = {
mergeInterval?: number,
maxUndoSteps?: number,
excludeOriginPrefixes?: string[],
onPush?: (isUndo: boolean, counterRange: { start: number, end: number }, event?: LoroEventBatch) => { value: Value, cursors: Cursor[] },
onPop?: (isUndo: boolean, value: { value: Value, cursors: Cursor[] }, counterRange: { start: number, end: number }) => void
};
export type Container = LoroList | LoroMap | LoroText | LoroTree | LoroMovableList | LoroCounter;
export interface ImportBlobMetadata {
/**
* The version vector of the start of the import.
*
* Import blob includes all the ops from `partial_start_vv` to `partial_end_vv`.
* However, it does not constitute a complete version vector, as it only contains counters
* from peers included within the import blob.
*/
partialStartVersionVector: VersionVector;
/**
* The version vector of the end of the import.
*
* Import blob includes all the ops from `partial_start_vv` to `partial_end_vv`.
* However, it does not constitute a complete version vector, as it only contains counters
* from peers included within the import blob.
*/
partialEndVersionVector: VersionVector;
startFrontiers: OpId[],
startTimestamp: number;
endTimestamp: number;
mode: "outdated-snapshot" | "outdated-update" | "snapshot" | "shallow-snapshot" | "update";
changeNum: number;
}
interface LoroText {
/**
* Get the cursor position at the given pos.
*
* When expressing the position of a cursor, using "index" can be unstable
* because the cursor's position may change due to other deletions and insertions,
* requiring updates with each edit. To stably represent a position or range within
* a list structure, we can utilize the ID of each item/character on List CRDT or
* Text CRDT for expression.
*
* Loro optimizes State metadata by not storing the IDs of deleted elements. This
* approach complicates tracking cursors since they rely on these IDs. The solution
* recalculates position by replaying relevant history to update cursors
* accurately. To minimize the performance impact of history replay, the system
* updates cursor info to reference only the IDs of currently present elements,
* thereby reducing the need for replay.
*
* @example
* ```ts
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "123");
* const pos0 = text.getCursor(0, 0);
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(0);
* }
* text.insert(0, "1");
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(1);
* }
* ```
*/
getCursor(pos: number, side?: Side): Cursor | undefined;
}
interface LoroList {
/**
* Get the cursor position at the given pos.
*
* When expressing the position of a cursor, using "index" can be unstable
* because the cursor's position may change due to other deletions and insertions,
* requiring updates with each edit. To stably represent a position or range within
* a list structure, we can utilize the ID of each item/character on List CRDT or
* Text CRDT for expression.
*
* Loro optimizes State metadata by not storing the IDs of deleted elements. This
* approach complicates tracking cursors since they rely on these IDs. The solution
* recalculates position by replaying relevant history to update cursors
* accurately. To minimize the performance impact of history replay, the system
* updates cursor info to reference only the IDs of currently present elements,
* thereby reducing the need for replay.
*
* @example
* ```ts
*
* const doc = new LoroDoc();
* const text = doc.getList("list");
* text.insert(0, "1");
* const pos0 = text.getCursor(0, 0);
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(0);
* }
* text.insert(0, "1");
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(1);
* }
* ```
*/
getCursor(pos: number, side?: Side): Cursor | undefined;
}
export type TreeNodeShallowValue = {
id: TreeID,
parent: TreeID | undefined,
index: number,
fractionalIndex: string,
meta: ContainerID,
children: TreeNodeShallowValue[],
}
export type TreeNodeValue = {
id: TreeID,
parent: TreeID | undefined,
index: number,
fractionalIndex: string,
meta: LoroMap,
children: TreeNodeValue[],
}
export type TreeNodeJSON = Omit & {
meta: T,
children: TreeNodeJSON[],
}
interface LoroMovableList {
/**
* Get the cursor position at the given pos.
*
* When expressing the position of a cursor, using "index" can be unstable
* because the cursor's position may change due to other deletions and insertions,
* requiring updates with each edit. To stably represent a position or range within
* a list structure, we can utilize the ID of each item/character on List CRDT or
* Text CRDT for expression.
*
* Loro optimizes State metadata by not storing the IDs of deleted elements. This
* approach complicates tracking cursors since they rely on these IDs. The solution
* recalculates position by replaying relevant history to update cursors
* accurately. To minimize the performance impact of history replay, the system
* updates cursor info to reference only the IDs of currently present elements,
* thereby reducing the need for replay.
*
* @example
* ```ts
*
* const doc = new LoroDoc();
* const text = doc.getMovableList("text");
* text.insert(0, "1");
* const pos0 = text.getCursor(0, 0);
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(0);
* }
* text.insert(0, "1");
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(1);
* }
* ```
*/
getCursor(pos: number, side?: Side): Cursor | undefined;
}
export type Side = -1 | 0 | 1;
export type JsonOpID = `${number}@${PeerID}`;
export type JsonContainerID = `🦜:${ContainerID}` ;
export type JsonValue =
| JsonContainerID
| string
| number
| boolean
| null
| { [key: string]: JsonValue }
| Uint8Array
| JsonValue[];
export type JsonSchema = {
schema_version: number;
start_version: Map,
peers: PeerID[],
changes: JsonChange[]
};
export type JsonChange = {
id: JsonOpID
/**
* The timestamp in seconds.
*
* [Unix time](https://en.wikipedia.org/wiki/Unix_time)
* It is the number of seconds that have elapsed since 00:00:00 UTC on 1 January 1970.
*/
timestamp: number,
deps: JsonOpID[],
lamport: number,
msg: string | null,
ops: JsonOp[]
}
export interface TextUpdateOptions {
timeoutMs?: number,
useRefinedDiff?: boolean,
}
export type ExportMode = {
mode: "update",
from?: VersionVector,
} | {
mode: "snapshot",
} | {
mode: "shallow-snapshot",
frontiers: Frontiers,
} | {
mode: "updates-in-range",
spans: {
id: OpId,
len: number,
}[],
};
export type JsonOp = {
container: ContainerID,
counter: number,
content: ListOp | TextOp | MapOp | TreeOp | MovableListOp | UnknownOp
}
export type ListOp = {
type: "insert",
pos: number,
value: JsonValue
} | {
type: "delete",
pos: number,
len: number,
start_id: JsonOpID,
};
export type MovableListOp = {
type: "insert",
pos: number,
value: JsonValue
} | {
type: "delete",
pos: number,
len: number,
start_id: JsonOpID,
}| {
type: "move",
from: number,
to: number,
elem_id: JsonOpID,
}|{
type: "set",
elem_id: JsonOpID,
value: JsonValue
}
export type TextOp = {
type: "insert",
pos: number,
text: string
} | {
type: "delete",
pos: number,
len: number,
start_id: JsonOpID,
} | {
type: "mark",
start: number,
end: number,
style_key: string,
style_value: JsonValue,
info: number
}|{
type: "mark_end"
};
export type MapOp = {
type: "insert",
key: string,
value: JsonValue
} | {
type: "delete",
key: string,
};
export type TreeOp = {
type: "create",
target: TreeID,
parent: TreeID | undefined,
fractional_index: string
}|{
type: "move",
target: TreeID,
parent: TreeID | undefined,
fractional_index: string
}|{
type: "delete",
target: TreeID
};
export type UnknownOp = {
type: "unknown"
prop: number,
value_type: "unknown",
value: {
kind: number,
data: Uint8Array
}
};
export type CounterSpan = { start: number, end: number };
export type ImportStatus = {
success: Map,
pending: Map | null
}
export type Frontiers = OpId[];
/**
* Represents a path to identify the exact location of an event's target.
* The path is composed of numbers (e.g., indices of a list container) strings
* (e.g., keys of a map container) and TreeID (the node of a tree container),
* indicating the absolute position of the event's source within a loro document.
*/
export type Path = (number | string | TreeID)[];
/**
* A batch of events that created by a single `import`/`transaction`/`checkout`.
*
* @prop by - How the event is triggered.
* @prop origin - (Optional) Provides information about the origin of the event.
* @prop diff - Contains the differential information related to the event.
* @prop target - Identifies the container ID of the event's target.
* @prop path - Specifies the absolute path of the event's emitter, which can be an index of a list container or a key of a map container.
*/
export interface LoroEventBatch {
/**
* How the event is triggered.
*
* - `local`: The event is triggered by a local transaction.
* - `import`: The event is triggered by an import operation.
* - `checkout`: The event is triggered by a checkout operation.
*/
by: "local" | "import" | "checkout";
origin?: string;
/**
* The container ID of the current event receiver.
* It's undefined if the subscriber is on the root document.
*/
currentTarget?: ContainerID;
events: LoroEvent[];
from: Frontiers;
to: Frontiers;
}
/**
* The concrete event of Loro.
*/
export interface LoroEvent {
/**
* The container ID of the event's target.
*/
target: ContainerID;
diff: Diff;
/**
* The absolute path of the event's emitter, which can be an index of a list container or a key of a map container.
*/
path: Path;
}
export type ListDiff = {
type: "list";
diff: Delta<(Value | Container)[]>[];
};
export type ListJsonDiff = {
type: "list";
diff: Delta<(Value | JsonContainerID )[]>[];
};
export type TextDiff = {
type: "text";
diff: Delta[];
};
export type MapDiff = {
type: "map";
updated: Record;
};
export type MapJsonDiff = {
type: "map";
updated: Record;
};
export type TreeDiffItem =
| {
target: TreeID;
action: "create";
parent: TreeID | undefined;
index: number;
fractionalIndex: string;
}
| {
target: TreeID;
action: "delete";
oldParent: TreeID | undefined;
oldIndex: number;
}
| {
target: TreeID;
action: "move";
parent: TreeID | undefined;
index: number;
fractionalIndex: string;
oldParent: TreeID | undefined;
oldIndex: number;
};
export type TreeDiff = {
type: "tree";
diff: TreeDiffItem[];
};
export type CounterDiff = {
type: "counter";
increment: number;
};
export type Diff = ListDiff | TextDiff | MapDiff | TreeDiff | CounterDiff;
export type JsonDiff = ListJsonDiff | TextDiff | MapJsonDiff | CounterDiff | TreeDiff;
export type Subscription = () => void;
type NonNullableType = Exclude;
export type AwarenessListener = (
arg: { updated: PeerID[]; added: PeerID[]; removed: PeerID[] },
origin: "local" | "timeout" | "remote" | string,
) => void;
interface Listener {
(event: LoroEventBatch): void;
}
interface LoroDoc {
subscribe(listener: Listener): Subscription;
}
interface UndoManager {
/**
* Set the callback function that is called when an undo/redo step is pushed.
* The function can return a meta data value that will be attached to the given stack item.
*
* @param listener - The callback function.
*/
setOnPush(listener?: UndoConfig["onPush"]): void;
/**
* Set the callback function that is called when an undo/redo step is popped.
* The function will have a meta data value that was attached to the given stack item when `onPush` was called.
*
* @param listener - The callback function.
*/
setOnPop(listener?: UndoConfig["onPop"]): void;
}
interface LoroDoc = Record> {
/**
* Get a LoroMap by container id
*
* The object returned is a new js object each time because it need to cross
* the WASM boundary.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* ```
*/
getMap(name: Key): T[Key] extends LoroMap ? T[Key] : LoroMap;
/**
* Get a LoroList by container id
*
* The object returned is a new js object each time because it need to cross
* the WASM boundary.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* ```
*/
getList(name: Key): T[Key] extends LoroList ? T[Key] : LoroList;
/**
* Get a LoroMovableList by container id
*
* The object returned is a new js object each time because it need to cross
* the WASM boundary.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* ```
*/
getMovableList(name: Key): T[Key] extends LoroMovableList ? T[Key] : LoroMovableList;
/**
* Get a LoroTree by container id
*
* The object returned is a new js object each time because it need to cross
* the WASM boundary.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* ```
*/
getTree(name: Key): T[Key] extends LoroTree ? T[Key] : LoroTree;
getText(key: string | ContainerID): LoroText;
/**
* Export the updates in the given range.
*
* @param start - The start version vector.
* @param end - The end version vector.
* @param withPeerCompression - Whether to compress the peer IDs in the updates. Defaults to true. If you want to process the operations in application code, set this to false.
* @returns The updates in the given range.
*/
exportJsonUpdates(start?: VersionVector, end?: VersionVector, withPeerCompression?: boolean): JsonSchema;
/**
* Exports changes within the specified ID span to JSON schema format.
*
* The JSON schema format produced by this method is identical to the one generated by `export_json_updates`.
* It ensures deterministic output, making it ideal for hash calculations and integrity checks.
*
* This method can also export pending changes from the uncommitted transaction that have not yet been applied to the OpLog.
*
* This method will NOT trigger a new commit implicitly.
*
* @param idSpan - The id span to export.
* @returns The changes in the given id span.
*/
exportJsonInIdSpan(idSpan: IdSpan): JsonChange[];
}
interface LoroList {
new(): LoroList;
/**
* Get elements of the list. If the value is a child container, the corresponding
* `Container` will be returned.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* list.insert(1, "foo");
* list.insert(2, true);
* list.insertContainer(3, new LoroText());
* console.log(list.value); // [100, "foo", true, LoroText];
* ```
*/
toArray(): T[];
/**
* Insert a container at the index.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* const text = list.insertContainer(1, new LoroText());
* text.insert(0, "Hello");
* console.log(list.toJSON()); // [100, "Hello"];
* ```
*/
insertContainer(pos: number, child: C): T extends C ? T : C;
/**
* Push a container to the end of the list.
*/
pushContainer(child: C): T extends C ? T : C;
/**
* Get the value at the index. If the value is a container, the corresponding handler will be returned.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* console.log(list.get(0)); // 100
* console.log(list.get(1)); // undefined
* ```
*/
get(index: number): T;
/**
* Insert a value at index.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* list.insert(1, "foo");
* list.insert(2, true);
* console.log(list.value); // [100, "foo", true];
* ```
*/
insert(pos: number, value: Exclude): void;
delete(pos: number, len: number): void;
push(value: Exclude): void;
subscribe(listener: Listener): Subscription;
getAttached(): undefined | LoroList;
}
interface LoroMovableList {
new(): LoroMovableList;
/**
* Get elements of the list. If the value is a child container, the corresponding
* `Container` will be returned.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getMovableList("list");
* list.insert(0, 100);
* list.insert(1, "foo");
* list.insert(2, true);
* list.insertContainer(3, new LoroText());
* console.log(list.value); // [100, "foo", true, LoroText];
* ```
*/
toArray(): T[];
/**
* Insert a container at the index.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getMovableList("list");
* list.insert(0, 100);
* const text = list.insertContainer(1, new LoroText());
* text.insert(0, "Hello");
* console.log(list.toJSON()); // [100, "Hello"];
* ```
*/
insertContainer(pos: number, child: C): T extends C ? T : C;
/**
* Push a container to the end of the list.
*/
pushContainer(child: C): T extends C ? T : C;
/**
* Get the value at the index. If the value is a container, the corresponding handler will be returned.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getMovableList("list");
* list.insert(0, 100);
* console.log(list.get(0)); // 100
* console.log(list.get(1)); // undefined
* ```
*/
get(index: number): T;
/**
* Insert a value at index.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getMovableList("list");
* list.insert(0, 100);
* list.insert(1, "foo");
* list.insert(2, true);
* console.log(list.value); // [100, "foo", true];
* ```
*/
insert(pos: number, value: Exclude): void;
delete(pos: number, len: number): void;
push(value: Exclude): void;
subscribe(listener: Listener): Subscription;
getAttached(): undefined | LoroMovableList;
/**
* Set the value at the given position.
*
* It's different from `delete` + `insert` that it will replace the value at the position.
*
* For example, if you have a list `[1, 2, 3]`, and you call `set(1, 100)`, the list will be `[1, 100, 3]`.
* If concurrently someone call `set(1, 200)`, the list will be `[1, 200, 3]` or `[1, 100, 3]`.
*
* But if you use `delete` + `insert` to simulate the set operation, they may create redundant operations
* and the final result will be `[1, 100, 200, 3]` or `[1, 200, 100, 3]`.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getMovableList("list");
* list.insert(0, 100);
* list.insert(1, "foo");
* list.insert(2, true);
* list.set(1, "bar");
* console.log(list.value); // [100, "bar", true];
* ```
*/
set(pos: number, value: Exclude): void;
/**
* Set a container at the index.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getMovableList("list");
* list.insert(0, 100);
* const text = list.setContainer(0, new LoroText());
* text.insert(0, "Hello");
* console.log(list.toJSON()); // ["Hello"];
* ```
*/
setContainer(pos: number, child: C): T extends C ? T : C;
}
interface LoroMap = Record> {
new(): LoroMap;
/**
* Get the value of the key. If the value is a child container, the corresponding
* `Container` will be returned.
*
* The object returned is a new js object each time because it need to cross
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* const bar = map.get("foo");
* ```
*/
getOrCreateContainer(key: string, child: C): C;
/**
* Set the key with a container.
*
* @example
* ```ts
* import { LoroDoc, LoroText, LoroList } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* const text = map.setContainer("text", new LoroText());
* const list = map.setContainer("list", new LoroList());
* ```
*/
setContainer(key: Key, child: C): NonNullableType extends C ? NonNullableType : C;
/**
* Get the value of the key. If the value is a child container, the corresponding
* `Container` will be returned.
*
* The object/value returned is a new js object/value each time because it need to cross
* the WASM boundary.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* const bar = map.get("foo");
* ```
*/
get(key: Key): T[Key];
/**
* Set the key with the value.
*
* If the key already exists, its value will be updated. If the key doesn't exist,
* a new key-value pair will be created.
*
* > **Note**: When calling `map.set(key, value)` on a LoroMap, if `map.get(key)` already returns `value`,
* > the operation will be a no-op (no operation recorded) to avoid unnecessary updates.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* map.set("foo", "baz");
* ```
*/
set(key: Key, value: Exclude): void;
delete(key: string): void;
subscribe(listener: Listener): Subscription;
}
interface LoroText {
new(): LoroText;
insert(pos: number, text: string): void;
delete(pos: number, len: number): void;
subscribe(listener: Listener): Subscription;
/**
* Update the current text to the target text.
*
* It will calculate the minimal difference and apply it to the current text.
* It uses Myers' diff algorithm to compute the optimal difference.
*
* This could take a long time for large texts (e.g. > 50_000 characters).
* In that case, you should use `updateByLine` instead.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* text.update("Hello World");
* console.log(text.toString()); // "Hello World"
* ```
*/
update(text: string, options?: TextUpdateOptions): void;
/**
* Update the current text based on the provided text.
* This update calculation is line-based, which will be more efficient but less precise.
*/
updateByLine(text: string, options?: TextUpdateOptions): void;
}
interface LoroTree = Record> {
new(): LoroTree;
/**
* Create a new tree node as the child of parent and return a `LoroTreeNode` instance.
* If the parent is undefined, the tree node will be a root node.
*
* If the index is not provided, the new node will be appended to the end.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* const node = tree.createNode(undefined, 0);
*
* // undefined
* // / \
* // node root
* ```
*/
createNode(parent?: TreeID, index?: number): LoroTreeNode;
move(target: TreeID, parent?: TreeID, index?: number): void;
delete(target: TreeID): void;
has(target: TreeID): boolean;
/**
* Get LoroTreeNode by the TreeID.
*/
getNodeByID(target: TreeID): LoroTreeNode | undefined;
subscribe(listener: Listener): Subscription;
toArray(): TreeNodeValue[];
getNodes(options?: { withDeleted?: boolean } ): LoroTreeNode[];
}
interface LoroTreeNode = Record> {
/**
* Get the associated metadata map container of a tree node.
*/
readonly data: LoroMap;
/**
* Create a new node as the child of the current node and
* return an instance of `LoroTreeNode`.
*
* If the index is not provided, the new node will be appended to the end.
*
* @example
* ```typescript
* import { LoroDoc } from "loro-crdt";
*
* let doc = new LoroDoc();
* let tree = doc.getTree("tree");
* let root = tree.createNode();
* let node = root.createNode();
* let node2 = root.createNode(0);
* // root
* // / \
* // node2 node
* ```
*/
createNode(index?: number): LoroTreeNode;
/**
* Move this tree node to be a child of the parent.
* If the parent is undefined, this node will be a root node.
*
* If the index is not provided, the node will be appended to the end.
*
* It's not allowed that the target is an ancestor of the parent.
*
* @example
* ```ts
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* const node = root.createNode();
* const node2 = node.createNode();
* node2.move(undefined, 0);
* // node2 root
* // |
* // node
*
* ```
*/
move(parent?: LoroTreeNode, index?: number): void;
/**
* Get the parent node of this node.
*
* - The parent of the root node is `undefined`.
* - The object returned is a new js object each time because it need to cross
* the WASM boundary.
*/
parent(): LoroTreeNode | undefined;
/**
* Get the children of this node.
*
* The objects returned are new js objects each time because they need to cross
* the WASM boundary.
*/
children(): Array> | undefined;
toJSON(): TreeNodeJSON;
}
interface AwarenessWasm {
getState(peer: PeerID): T | undefined;
getTimestamp(peer: PeerID): number | undefined;
getAllStates(): Record;
setLocalState(value: T): void;
removeOutdated(): PeerID[];
}
type EphemeralListener = (event: EphemeralStoreEvent) => void;
type EphemeralLocalListener = (bytes: Uint8Array) => void;
interface EphemeralStoreWasm {
set(key: string, value: T): void;
get(key: string): T | undefined;
getAllStates(): Record;
removeOutdated();
subscribeLocalUpdates(f: EphemeralLocalListener): () => void;
subscribe(f: EphemeralListener): () => void;
}
interface EphemeralStoreEvent {
by: "local" | "import" | "timeout";
added: string[];
updated: string[];
removed: string[];
}
/**
* `Awareness` is a structure that tracks the ephemeral state of peers.
*
* It can be used to synchronize cursor positions, selections, and the names of the peers.
*
* The state of a specific peer is expected to be removed after a specified timeout. Use
* `remove_outdated` to eliminate outdated states.
*/
export class AwarenessWasm {
free(): void;
/**
* Creates a new `Awareness` instance.
*
* The `timeout` parameter specifies the duration in milliseconds.
* A state of a peer is considered outdated, if the last update of the state of the peer
* is older than the `timeout`.
*/
constructor(peer: number | bigint | `${number}`, timeout: number);
/**
* Encodes the state of the given peers.
*/
encode(peers: Array): Uint8Array;
/**
* Encodes the state of all peers.
*/
encodeAll(): Uint8Array;
/**
* Applies the encoded state of peers.
*
* Each peer's deletion countdown will be reset upon update, requiring them to pass through the `timeout`
* interval again before being eligible for deletion.
*/
apply(encoded_peers_info: Uint8Array): { updated: PeerID[], added: PeerID[] };
/**
* Get the PeerID of the local peer.
*/
peer(): PeerID;
/**
* Get the timestamp of the state of a given peer.
*/
getTimestamp(peer: number | bigint | `${number}`): number | undefined;
/**
* Remove the states of outdated peers.
*/
removeOutdated(): PeerID[];
/**
* Get the number of peers.
*/
length(): number;
/**
* If the state is empty.
*/
isEmpty(): boolean;
/**
* Get all the peers
*/
peers(): PeerID[];
}
export class ChangeModifier {
private constructor();
free(): void;
setMessage(message: string): ChangeModifier;
setTimestamp(timestamp: number): ChangeModifier;
}
/**
* Cursor is a stable position representation in the doc.
* When expressing the position of a cursor, using "index" can be unstable
* because the cursor's position may change due to other deletions and insertions,
* requiring updates with each edit. To stably represent a position or range within
* a list structure, we can utilize the ID of each item/character on List CRDT or
* Text CRDT for expression.
*
* Loro optimizes State metadata by not storing the IDs of deleted elements. This
* approach complicates tracking cursors since they rely on these IDs. The solution
* recalculates position by replaying relevant history to update cursors
* accurately. To minimize the performance impact of history replay, the system
* updates cursor info to reference only the IDs of currently present elements,
* thereby reducing the need for replay.
*
* @example
* ```ts
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "123");
* const pos0 = text.getCursor(0, 0);
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(0);
* }
* text.insert(0, "1");
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(1);
* }
* ```
*/
export class Cursor {
private constructor();
free(): void;
/**
* Get the id of the given container.
*/
containerId(): ContainerID;
/**
* Get the ID that represents the position.
*
* It can be undefined if it's not bind into a specific ID.
*/
pos(): { peer: PeerID, counter: number } | undefined;
/**
* Get which side of the character/list item the cursor is on.
*/
side(): Side;
/**
* Encode the cursor into a Uint8Array.
*/
encode(): Uint8Array;
/**
* Decode the cursor from a Uint8Array.
*/
static decode(data: Uint8Array): Cursor;
/**
* "Cursor"
*/
kind(): any;
}
export class EphemeralStoreWasm {
free(): void;
/**
* Creates a new `EphemeralStore` instance.
*
* The `timeout` parameter specifies the duration in milliseconds.
* A state of a peer is considered outdated, if the last update of the state of the peer
* is older than the `timeout`.
*/
constructor(timeout: number);
set(key: string, value: any): void;
delete(key: string): void;
get(key: string): any;
getAllStates(): any;
encode(key: string): Uint8Array;
encodeAll(): Uint8Array;
apply(data: Uint8Array): void;
removeOutdated(): void;
/**
* If the state is empty.
*/
isEmpty(): boolean;
keys(): string[];
}
/**
* The handler of a counter container.
*/
export class LoroCounter {
free(): void;
/**
* Create a new LoroCounter.
*/
constructor();
/**
* "Counter"
*/
kind(): 'Counter';
/**
* Increment the counter by the given value.
*/
increment(value: number): void;
/**
* Decrement the counter by the given value.
*/
decrement(value: number): void;
/**
* Subscribe to the changes of the counter.
*/
subscribe(f: Function): any;
/**
* Get the parent container of the counter container.
*
* - The parent container of the root counter is `undefined`.
* - The object returned is a new js object each time because it need to cross
* the WASM boundary.
*/
parent(): Container | undefined;
/**
* Whether the container is attached to a docuemnt.
*
* If it's detached, the operations on the container will not be persisted.
*/
isAttached(): boolean;
/**
* Get the attached container associated with this.
*
* Returns an attached `Container` that equals to this or created by this, otherwise `undefined`.
*/
getAttached(): LoroTree | undefined;
/**
* Get the value of the counter.
*/
getShallowValue(): number;
/**
* The container id of this handler.
*/
readonly id: ContainerID;
/**
* Get the value of the counter.
*/
readonly value: number;
}
/**
* The CRDTs document. Loro supports different CRDTs include [**List**](LoroList),
* [**RichText**](LoroText), [**Map**](LoroMap) and [**Movable Tree**](LoroTree),
* you could build all kind of applications by these.
*
* **Important:** Loro is a pure library and does not handle network protocols.
* It is the responsibility of the user to manage the storage, loading, and synchronization
* of the bytes exported by Loro in a manner suitable for their specific environment.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt"
*
* const loro = new LoroDoc();
* const text = loro.getText("text");
* const list = loro.getList("list");
* const map = loro.getMap("Map");
* const tree = loro.getTree("tree");
* ```
*/
export class LoroDoc {
free(): void;
/**
* Create a new loro document.
*
* New document will have a random peer id.
*/
constructor();
/**
* Enables editing in detached mode, which is disabled by default.
*
* The doc enter detached mode after calling `detach` or checking out a non-latest version.
*
* # Important Notes:
*
* - This mode uses a different PeerID for each checkout.
* - Ensure no concurrent operations share the same PeerID if set manually.
* - Importing does not affect the document's state or version; changes are
* recorded in the [OpLog] only. Call `checkout` to apply changes.
*/
setDetachedEditing(enable: boolean): void;
/**
* Whether the editing is enabled in detached mode.
*
* The doc enter detached mode after calling `detach` or checking out a non-latest version.
*
* # Important Notes:
*
* - This mode uses a different PeerID for each checkout.
* - Ensure no concurrent operations share the same PeerID if set manually.
* - Importing does not affect the document's state or version; changes are
* recorded in the [OpLog] only. Call `checkout` to apply changes.
*/
isDetachedEditingEnabled(): boolean;
/**
* Set whether to record the timestamp of each change. Default is `false`.
*
* If enabled, the Unix timestamp (in seconds) will be recorded for each change automatically.
*
* You can also set each timestamp manually when you commit a change.
* The timestamp manually set will override the automatic one.
*
* NOTE: Timestamps are forced to be in ascending order in the OpLog's history.
* If you commit a new change with a timestamp that is less than the existing one,
* the largest existing timestamp will be used instead.
*/
setRecordTimestamp(auto_record: boolean): void;
/**
* If two continuous local changes are within (<=) the interval(**in seconds**), they will be merged into one change.
*
* The default value is 1_000 seconds.
*
* By default, we record timestamps in seconds for each change. So if the merge interval is 1, and changes A and B
* have timestamps of 3 and 4 respectively, then they will be merged into one change
*/
setChangeMergeInterval(interval: number): void;
/**
* Set the rich text format configuration of the document.
*
* You need to config it if you use rich text `mark` method.
* Specifically, you need to config the `expand` property of each style.
*
* Expand is used to specify the behavior of expanding when new text is inserted at the
* beginning or end of the style.
*
* You can specify the `expand` option to set the behavior when inserting text at the boundary of the range.
*
* - `after`(default): when inserting text right after the given range, the mark will be expanded to include the inserted text
* - `before`: when inserting text right before the given range, the mark will be expanded to include the inserted text
* - `none`: the mark will not be expanded to include the inserted text at the boundaries
* - `both`: when inserting text either right before or right after the given range, the mark will be expanded to include the inserted text
*
* @example
* ```ts
* const doc = new LoroDoc();
* doc.configTextStyle({
* bold: { expand: "after" },
* link: { expand: "before" }
* });
* const text = doc.getText("text");
* text.insert(0, "Hello World!");
* text.mark({ start: 0, end: 5 }, "bold", true);
* expect(text.toDelta()).toStrictEqual([
* {
* insert: "Hello",
* attributes: {
* bold: true,
* },
* },
* {
* insert: " World!",
* },
* ] as Delta[]);
* ```
*/
configTextStyle(styles: {[key: string]: { expand: 'before'|'after'|'none'|'both' }}): void;
/**
* Configures the default text style for the document.
*
* This method sets the default text style configuration for the document when using LoroText.
* If `None` is provided, the default style is reset.
*/
configDefaultTextStyle(style: { expand: 'before'|'after'|'none'|'both' } | undefined): void;
/**
* Create a loro document from the snapshot.
*
* @see You can learn more [here](https://loro.dev/docs/tutorial/encoding).
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt"
*
* const doc = new LoroDoc();
* // ...
* const bytes = doc.export({ mode: "snapshot" });
* const loro = LoroDoc.fromSnapshot(bytes);
* ```
*/
static fromSnapshot(snapshot: Uint8Array): LoroDoc;
/**
* Attach the document state to the latest known version.
*
* > The document becomes detached during a `checkout` operation.
* > Being `detached` implies that the `DocState` is not synchronized with the latest version of the `OpLog`.
* > In a detached state, the document is not editable, and any `import` operations will be
* > recorded in the `OpLog` without being applied to the `DocState`.
*
* This method has the same effect as invoking `checkoutToLatest`.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* const frontiers = doc.frontiers();
* text.insert(0, "Hello World!");
* doc.checkout(frontiers);
* // you need call `attach()` or `checkoutToLatest()` before changing the doc.
* doc.attach();
* text.insert(0, "Hi");
* ```
*/
attach(): void;
/**
* `detached` indicates that the `DocState` is not synchronized with the latest version of `OpLog`.
*
* > The document becomes detached during a `checkout` operation.
* > Being `detached` implies that the `DocState` is not synchronized with the latest version of the `OpLog`.
* > In a detached state, the document is not editable by default, and any `import` operations will be
* > recorded in the `OpLog` without being applied to the `DocState`.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* const frontiers = doc.frontiers();
* text.insert(0, "Hello World!");
* console.log(doc.isDetached()); // false
* doc.checkout(frontiers);
* console.log(doc.isDetached()); // true
* doc.attach();
* console.log(doc.isDetached()); // false
* ```
*/
isDetached(): boolean;
/**
* Detach the document state from the latest known version.
*
* After detaching, all import operations will be recorded in the `OpLog` without being applied to the `DocState`.
* When `detached`, the document is not editable.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* doc.detach();
* console.log(doc.isDetached()); // true
* ```
*/
detach(): void;
/**
* Duplicate the document with a different PeerID
*
* The time complexity and space complexity of this operation are both O(n),
*
* When called in detached mode, it will fork at the current state frontiers.
* It will have the same effect as `forkAt(&self.frontiers())`.
*/
fork(): LoroDoc;
/**
* Creates a new LoroDoc at a specified version (Frontiers)
*
* The created doc will only contain the history before the specified frontiers.
*/
forkAt(frontiers: ({ peer: PeerID, counter: number })[]): LoroDoc;
/**
* Checkout the `DocState` to the latest version of `OpLog`.
*
* > The document becomes detached during a `checkout` operation.
* > Being `detached` implies that the `DocState` is not synchronized with the latest version of the `OpLog`.
* > In a detached state, the document is not editable by default, and any `import` operations will be
* > recorded in the `OpLog` without being applied to the `DocState`.
*
* This has the same effect as `attach`.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* const frontiers = doc.frontiers();
* text.insert(0, "Hello World!");
* doc.checkout(frontiers);
* // you need call `checkoutToLatest()` or `attach()` before changing the doc.
* doc.checkoutToLatest();
* text.insert(0, "Hi");
* ```
*/
checkoutToLatest(): void;
/**
* Visit all the ancestors of the changes in causal order.
*
* @param ids - the changes to visit
* @param f - the callback function, return `true` to continue visiting, return `false` to stop
*/
travelChangeAncestors(ids: ({ peer: PeerID, counter: number })[], f: (change: Change) => boolean): void;
/**
* Find the op id spans that between the `from` version and the `to` version.
*
* You can combine it with `exportJsonInIdSpan` to get the changes between two versions.
*
* You can use it to travel all the changes from `from` to `to`. `from` and `to` are frontiers,
* and they can be concurrent to each other. You can use it to find all the changes related to an event:
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const docA = new LoroDoc();
* docA.setPeerId("1");
* const docB = new LoroDoc();
*
* docA.getText("text").update("Hello");
* docA.commit();
* const snapshot = docA.export({ mode: "snapshot" });
* let done = false;
* docB.subscribe(e => {
* const spans = docB.findIdSpansBetween(e.from, e.to);
* const changes = docB.exportJsonInIdSpan(spans.forward[0]);
* console.log(changes);
* // [{
* // id: "0@1",
* // timestamp: expect.any(Number),
* // deps: [],
* // lamport: 0,
* // msg: undefined,
* // ops: [{
* // container: "cid:root-text:Text",
* // counter: 0,
* // content: {
* // type: "insert",
* // pos: 0,
* // text: "Hello"
* // }
* // }]
* // }]
* });
* docB.import(snapshot);
* ```
*/
findIdSpansBetween(from: ({ peer: PeerID, counter: number })[], to: ({ peer: PeerID, counter: number })[]): VersionVectorDiff;
/**
* Checkout the `DocState` to a specific version.
*
* > The document becomes detached during a `checkout` operation.
* > Being `detached` implies that the `DocState` is not synchronized with the latest version of the `OpLog`.
* > In a detached state, the document is not editable, and any `import` operations will be
* > recorded in the `OpLog` without being applied to the `DocState`.
*
* You should call `attach` to attach the `DocState` to the latest version of `OpLog`.
*
* @param frontiers - the specific frontiers
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* const frontiers = doc.frontiers();
* text.insert(0, "Hello World!");
* doc.checkout(frontiers);
* console.log(doc.toJSON()); // {"text": ""}
* ```
*/
checkout(frontiers: ({ peer: PeerID, counter: number })[]): void;
/**
* Set the peer ID of the current writer.
*
* It must be a number, a BigInt, or a decimal string that can be parsed to a unsigned 64-bit integer.
*
* Note: use it with caution. You need to make sure there is not chance that two peers
* have the same peer ID. Otherwise, we cannot ensure the consistency of the document.
*/
setPeerId(peer_id: number | bigint | `${number}`): void;
/**
* Commit the cumulative auto-committed transaction.
*
* You can specify the `origin`, `timestamp`, and `message` of the commit.
*
* - The `origin` is used to mark the event
* - The `message` works like a git commit message, which will be recorded and synced to peers
* - The `timestamp` is the number of seconds that have elapsed since 00:00:00 UTC on January 1, 1970.
* It defaults to `Date.now() / 1000` when timestamp recording is enabled
*
* The events will be emitted after a transaction is committed. A transaction is committed when:
*
* - `doc.commit()` is called.
* - `doc.export(mode)` is called.
* - `doc.import(data)` is called.
* - `doc.checkout(version)` is called.
*
* NOTE: Timestamps are forced to be in ascending order.
* If you commit a new change with a timestamp that is less than the existing one,
* the largest existing timestamp will be used instead.
*
* NOTE: The `origin` will not be persisted, but the `message` will.
*/
commit(options?: { origin?: string, timestamp?: number, message?: string } | null): void;
/**
* Get the number of operations in the pending transaction.
*
* The pending transaction is the one that is not committed yet. It will be committed
* automatically after calling `doc.commit()`, `doc.export(mode)` or `doc.checkout(version)`.
*/
getPendingTxnLength(): number;
/**
* Get a LoroText by container id.
*
* The object returned is a new js object each time because it need to cross
* the WASM boundary.
*
* If the container does not exist, an error will be thrown.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* ```
*/
getText(cid: ContainerID | string): LoroText;
/**
* Get a LoroCounter by container id
*
* If the container does not exist, an error will be thrown.
*/
getCounter(cid: ContainerID | string): LoroCounter;
/**
* Check if the doc contains the target container.
*
* A root container always exists, while a normal container exists
* if it has ever been created on the doc.
*
* @example
* ```ts
* import { LoroDoc, LoroMap, LoroText, LoroList } from "loro-crdt";
*
* const doc = new LoroDoc();
* doc.setPeerId("1");
* const text = doc.getMap("map").setContainer("text", new LoroText());
* const list = doc.getMap("map").setContainer("list", new LoroList());
* expect(doc.isContainerExists("cid:root-map:Map")).toBe(true);
* expect(doc.isContainerExists("cid:0@1:Text")).toBe(true);
* expect(doc.isContainerExists("cid:1@1:List")).toBe(true);
*
* const doc2 = new LoroDoc();
* // Containers exist, as long as the history or the doc state include it
* doc.detach();
* doc2.import(doc.export({ mode: "update" }));
* expect(doc2.isContainerExists("cid:root-map:Map")).toBe(true);
* expect(doc2.isContainerExists("cid:0@1:Text")).toBe(true);
* expect(doc2.isContainerExists("cid:1@1:List")).toBe(true);
* ```
*/
hasContainer(container_id: ContainerID): boolean;
/**
* Set the commit message of the next commit
*/
setNextCommitMessage(msg: string): void;
/**
* Set the origin of the next commit
*/
setNextCommitOrigin(origin: string): void;
/**
* Set the timestamp of the next commit
*/
setNextCommitTimestamp(timestamp: number): void;
/**
* Set the options of the next commit
*/
setNextCommitOptions(options: { origin?: string, timestamp?: number, message?: string }): void;
/**
* Clear the options of the next commit
*/
clearNextCommitOptions(): void;
/**
* Get deep value of the document with container id
*/
getDeepValueWithID(): any;
/**
* Get the path from the root to the container
*/
getPathToContainer(id: ContainerID): (string|number)[] | undefined;
/**
* Evaluate JSONPath against a LoroDoc
*/
JSONPath(jsonpath: string): Array;
/**
* Get the version vector of the current document state.
*
* If you checkout to a specific version, the version vector will change.
*/
version(): VersionVector;
/**
* The doc only contains the history since this version
*
* This is empty if the doc is not shallow.
*
* The ops included by the shallow history start version vector are not in the doc.
*/
shallowSinceVV(): VersionVector;
/**
* Check if the doc contains the full history.
*/
isShallow(): boolean;
/**
* The doc only contains the history since this version
*
* This is empty if the doc is not shallow.
*
* The ops included by the shallow history start frontiers are not in the doc.
*/
shallowSinceFrontiers(): { peer: PeerID, counter: number }[];
/**
* Get the version vector of the latest known version in OpLog.
*
* If you checkout to a specific version, this version vector will not change.
*/
oplogVersion(): VersionVector;
/**
* Get the [frontiers](https://loro.dev/docs/advanced/version_deep_dive) of the current document state.
*
* If you checkout to a specific version, this value will change.
*/
frontiers(): { peer: PeerID, counter: number }[];
/**
* Get the [frontiers](https://loro.dev/docs/advanced/version_deep_dive) of the latest version in OpLog.
*
* If you checkout to a specific version, this value will not change.
*/
oplogFrontiers(): { peer: PeerID, counter: number }[];
/**
* Compare the version of the OpLog with the specified frontiers.
*
* This method is useful to compare the version by only a small amount of data.
*
* This method returns an integer indicating the relationship between the version of the OpLog (referred to as 'self')
* and the provided 'frontiers' parameter:
*
* - -1: The version of 'self' is either less than 'frontiers' or is non-comparable (parallel) to 'frontiers',
* indicating that it is not definitively less than 'frontiers'.
* - 0: The version of 'self' is equal to 'frontiers'.
* - 1: The version of 'self' is greater than 'frontiers'.
*
* # Internal
*
* Frontiers cannot be compared without the history of the OpLog.
*/
cmpWithFrontiers(frontiers: ({ peer: PeerID, counter: number })[]): number;
/**
* Compare the ordering of two Frontiers.
*
* It's assumed that both Frontiers are included by the doc. Otherwise, an error will be thrown.
*
* Return value:
*
* - -1: a < b
* - 0: a == b
* - 1: a > b
* - undefined: a ∥ b: a and b are concurrent
*/
cmpFrontiers(a: ({ peer: PeerID, counter: number })[], b: ({ peer: PeerID, counter: number })[]): -1 | 1 | 0 | undefined;
/**
* Export the snapshot of current version.
* It includes all the history and the document state
*
* @deprecated Use `export({mode: "snapshot"})` instead
*/
exportSnapshot(): Uint8Array;
/**
* Export the document based on the specified ExportMode.
*
* @param mode - The export mode to use. Can be one of:
* - `{ mode: "snapshot" }`: Export a full snapshot of the document.
* - `{ mode: "update", from?: VersionVector }`: Export updates from the given version vector.
* - `{ mode: "updates-in-range", spans: { id: ID, len: number }[] }`: Export updates within the specified ID spans.
* - `{ mode: "shallow-snapshot", frontiers: Frontiers }`: Export a garbage-collected snapshot up to the given frontiers.
*
* @returns A byte array containing the exported data.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* doc.setPeerId("1");
* doc.getText("text").update("Hello World");
*
* // Export a full snapshot
* const snapshotBytes = doc.export({ mode: "snapshot" });
*
* // Export updates from a specific version
* const vv = doc.oplogVersion();
* doc.getText("text").update("Hello Loro");
* const updateBytes = doc.export({ mode: "update", from: vv });
*
* // Export a shallow snapshot that only includes the history since the frontiers
* const shallowBytes = doc.export({ mode: "shallow-snapshot", frontiers: doc.oplogFrontiers() });
*
* // Export updates within specific ID spans
* const spanBytes = doc.export({
* mode: "updates-in-range",
* spans: [{ id: { peer: "1", counter: 0 }, len: 10 }]
* });
* ```
*/
export(mode: ExportMode): Uint8Array;
/**
* Import updates from the JSON format.
*
* only supports backward compatibility but not forward compatibility.
*/
importJsonUpdates(json: string | JsonSchema): ImportStatus;
/**
* Import snapshot or updates into current doc.
*
* Note:
* - Updates within the current version will be ignored
* - Updates with missing dependencies will be pending until the dependencies are received
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* // get all updates of the doc
* const updates = doc.export({ mode: "update" });
* const snapshot = doc.export({ mode: "snapshot" });
* const doc2 = new LoroDoc();
* // import snapshot
* doc2.import(snapshot);
* // or import updates
* doc2.import(updates);
* ```
*/
import(update_or_snapshot: Uint8Array): ImportStatus;
/**
* Import a batch of updates and snapshots.
*
* It's more efficient than importing updates one by one.
*
* @deprecated Use `importBatch` instead.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* const updates = doc.export({ mode: "update" });
* const snapshot = doc.export({ mode: "snapshot" });
* const doc2 = new LoroDoc();
* doc2.importBatch([snapshot, updates]);
* ```
*/
importUpdateBatch(data: Uint8Array[]): ImportStatus;
/**
* Import a batch of updates or snapshots.
*
* It's more efficient than importing updates one by one.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* const updates = doc.export({ mode: "update" });
* const snapshot = doc.export({ mode: "snapshot" });
* const doc2 = new LoroDoc();
* doc2.importBatch([snapshot, updates]);
* ```
*/
importBatch(data: Uint8Array[]): ImportStatus;
/**
* Get the shallow json format of the document state.
*
* Unlike `toJSON()` which recursively resolves all containers to their values,
* `getShallowValue()` returns container IDs as strings for any nested containers.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* const tree = doc.getTree("tree");
* const map = doc.getMap("map");
* const shallowValue = doc.getShallowValue();
* console.log(shallowValue);
* // {
* // list: 'cid:root-list:List',
* // tree: 'cid:root-tree:Tree',
* // map: 'cid:root-map:Map'
* // }
*
* // It points to the same container as `list`
* const listB = doc.getContainerById(shallowValue.list);
* ```
*/
getShallowValue(): Record;
/**
* Get the json format of the entire document state.
*
* Unlike `getShallowValue()` which returns container IDs as strings,
* `toJSON()` recursively resolves all containers to their actual values.
*
* @example
* ```ts
* import { LoroDoc, LoroText, LoroMap } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, "Hello");
* const text = list.insertContainer(0, new LoroText());
* text.insert(0, "Hello");
* const map = list.insertContainer(1, new LoroMap());
* map.set("foo", "bar");
* console.log(doc.toJSON());
* // {"list": ["Hello", {"foo": "bar"}]}
* ```
*/
toJSON(): any;
/**
* Debug the size of the history
*/
debugHistory(): void;
/**
* Get the number of changes in the oplog.
*/
changeCount(): number;
/**
* Get the number of ops in the oplog.
*/
opCount(): number;
/**
* Get all of changes in the oplog.
*
* Note: this method is expensive when the oplog is large. O(n)
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* const changes = doc.getAllChanges();
*
* for (let [peer, c] of changes.entries()){
* console.log("peer: ", peer);
* for (let change of c){
* console.log("change: ", change);
* }
* }
* ```
*/
getAllChanges(): Map;
/**
* Get the change that contains the specific ID
*/
getChangeAt(id: { peer: PeerID, counter: number }): Change;
/**
* Get the change of with specific peer_id and lamport <= given lamport
*/
getChangeAtLamport(peer_id: string, lamport: number): Change | undefined;
/**
* Get all ops of the change that contains the specific ID
*/
getOpsInChange(id: { peer: PeerID, counter: number }): any[];
/**
* Convert frontiers to a version vector
*
* Learn more about frontiers and version vector [here](https://loro.dev/docs/advanced/version_deep_dive)
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* const frontiers = doc.frontiers();
* const version = doc.frontiersToVV(frontiers);
* ```
*/
frontiersToVV(frontiers: ({ peer: PeerID, counter: number })[]): VersionVector;
/**
* Convert a version vector to frontiers
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* const version = doc.version();
* const frontiers = doc.vvToFrontiers(version);
* ```
*/
vvToFrontiers(vv: VersionVector): { peer: PeerID, counter: number }[];
/**
* Get the value or container at the given path
*
* The path can be specified in different ways depending on the container type:
*
* For Tree:
* 1. Using node IDs: `tree/{node_id}/property`
* 2. Using indices: `tree/0/1/property`
*
* For List and MovableList:
* - Using indices: `list/0` or `list/1/property`
*
* For Map:
* - Using keys: `map/key` or `map/nested/property`
*
* For tree structures, index-based paths follow depth-first traversal order.
* The indices start from 0 and represent the position of a node among its siblings.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("key", 1);
* console.log(doc.getByPath("map/key")); // 1
* console.log(doc.getByPath("map")); // LoroMap
* ```
*/
getByPath(path: string): Value | Container | undefined;
/**
* Get the absolute position of the given Cursor
*
* @example
* ```ts
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "123");
* const pos0 = text.getCursor(0, 0);
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(0);
* }
* text.insert(0, "1");
* {
* const ans = doc.getCursorPos(pos0!);
* expect(ans.offset).toBe(1);
* }
* ```
*/
getCursorPos(cursor: Cursor): { update?: Cursor, offset: number, side: Side };
/**
* Gets container IDs modified in the given ID range.
*
* **NOTE:** This method will implicitly commit.
*
* This method identifies which containers were affected by changes in a given range of operations.
* It can be used together with `doc.travelChangeAncestors()` to analyze the history of changes
* and determine which containers were modified by each change.
*
* @param id - The starting ID of the change range
* @param len - The length of the change range to check
* @returns An array of container IDs that were modified in the given range
*/
getChangedContainersIn(id: { peer: PeerID, counter: number }, len: number): ContainerID[];
/**
* Revert the document to the given frontiers.
*
* The doc will not become detached when using this method. Instead, it will generate a series
* of operations to revert the document to the given version.
*
* @example
* ```ts
* const doc = new LoroDoc();
* doc.setPeerId("1");
* const text = doc.getText("text");
* text.insert(0, "Hello");
* doc.commit();
* doc.revertTo([{ peer: "1", counter: 1 }]);
* expect(doc.getText("text").toString()).toBe("He");
* ```
*/
revertTo(frontiers: ({ peer: PeerID, counter: number })[]): void;
/**
* Apply a batch of diff to the document
*
* A diff batch represents a set of changes between two versions of the document.
* You can calculate a diff batch using `doc.diff()`.
*
* Changes are associated with container IDs. During diff application, if new containers were created in the source
* document, they will be assigned fresh IDs in the target document. Loro automatically handles remapping these
* container IDs from their original IDs to the new IDs as the diff is applied.
*
* @example
* ```ts
* const doc1 = new LoroDoc();
* const doc2 = new LoroDoc();
*
* // Make some changes to doc1
* const text = doc1.getText("text");
* text.insert(0, "Hello");
*
* // Calculate diff between empty and current state
* const diff = doc1.diff([], doc1.frontiers());
*
* // Apply changes to doc2
* doc2.applyDiff(diff);
* console.log(doc2.getText("text").toString()); // "Hello"
* ```
*/
applyDiff(diff: [ContainerID, Diff|JsonDiff][]): void;
/**
* Get the pending operations from the current transaction in JSON format
*
* This method returns a JSON representation of operations that have been applied
* but not yet committed in the current transaction.
*
* It will use the same data format as `doc.exportJsonUpdates()`
*
* @example
* ```ts
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* // Get pending ops before commit
* const pendingOps = doc.getPendingOpsFromCurrentTxnAsJson();
* doc.commit();
* const emptyOps = doc.getPendingOpsFromCurrentTxnAsJson(); // this is undefined
* ```
*/
getUncommittedOpsAsJson(): JsonSchema | undefined;
/**
* Delete all content from a root container and hide it from the document.
*
* When a root container is empty and hidden:
* - It won't show up in `get_deep_value()` results
* - It won't be included in document snapshots
*
* Only works on root containers (containers without parents).
*/
deleteRootContainer(cid: ContainerID): void;
/**
* Set whether to hide empty root containers.
*
* @example
* ```ts
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* console.log(doc.toJSON()); // { map: {} }
* doc.setHideEmptyRootContainers(true);
* console.log(doc.toJSON()); // {}
* ```
*/
setHideEmptyRootContainers(hide: boolean): void;
/**
* Peer ID of the current writer.
*/
readonly peerId: bigint;
/**
* Get peer id in decimal string.
*/
readonly peerIdStr: PeerID;
}
/**
* The handler of a list container.
*
* Learn more at https://loro.dev/docs/tutorial/list
*/
export class LoroList {
free(): void;
/**
* Create a new detached LoroList (not attached to any LoroDoc).
*
* The edits on a detached container will not be persisted.
* To attach the container to the document, please insert it into an attached container.
*/
constructor();
/**
* "List"
*/
kind(): 'List';
/**
* Delete elements from index to index + len.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* list.delete(0, 1);
* console.log(list.value); // []
* ```
*/
delete(index: number, len: number): void;
/**
* Get elements of the list. If the type of a element is a container, it will be
* resolved recursively.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* const text = list.insertContainer(1, new LoroText());
* text.insert(0, "Hello");
* console.log(list.toJSON()); // [100, "Hello"];
* ```
*/
toJSON(): any;
/**
* Get the parent container.
*
* - The parent container of the root tree is `undefined`.
* - The object returned is a new js object each time because it need to cross
* the WASM boundary.
*/
parent(): Container | undefined;
/**
* Whether the container is attached to a document.
*
* If it's detached, the operations on the container will not be persisted.
*/
isAttached(): boolean;
/**
* Get the attached container associated with this.
*
* Returns an attached `Container` that equals to this or created by this, otherwise `undefined`.
*/
getAttached(): LoroList | undefined;
/**
* Pop a value from the end of the list.
*/
pop(): Value | undefined;
/**
* Delete all elements in the list.
*/
clear(): void;
getIdAt(pos: number): { peer: PeerID, counter: number } | undefined;
/**
* Check if the container is deleted
*/
isDeleted(): boolean;
/**
* Get the shallow value of the list.
*
* Unlike `toJSON()` which recursively resolves all containers to their values,
* `getShallowValue()` returns container IDs as strings for any nested containers.
*
* ```js
* const doc = new LoroDoc();
* doc.setPeerId("1");
* const list = doc.getList("list");
* list.insert(0, 1);
* list.insert(1, "two");
* const subList = list.insertContainer(2, new LoroList());
* subList.insert(0, "sub");
* list.getShallowValue(); // [1, "two", "cid:2@1:List"]
* list.toJSON(); // [1, "two", ["sub"]]
* ```
*/
getShallowValue(): Value[];
/**
* Get the id of this container.
*/
readonly id: ContainerID;
/**
* Get the length of list.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* list.insert(1, "foo");
* list.insert(2, true);
* console.log(list.length); // 3
* ```
*/
readonly length: number;
}
/**
* The handler of a map container.
*
* Learn more at https://loro.dev/docs/tutorial/map
*/
export class LoroMap {
free(): void;
/**
* Create a new detached LoroMap (not attached to any LoroDoc).
*
* The edits on a detached container will not be persisted.
* To attach the container to the document, please insert it into an attached container.
*/
constructor();
/**
* "Map"
*/
kind(): 'Map';
/**
* Remove the key from the map.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* map.delete("foo");
* ```
*/
delete(key: string): void;
/**
* Get the keys of the map.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* map.set("baz", "bar");
* const keys = map.keys(); // ["foo", "baz"]
* ```
*/
keys(): any[];
/**
* Get the values of the map. If the value is a child container, the corresponding
* `Container` will be returned.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* map.set("baz", "bar");
* const values = map.values(); // ["bar", "bar"]
* ```
*/
values(): any[];
/**
* Get the entries of the map. If the value is a child container, the corresponding
* `Container` will be returned.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* map.set("baz", "bar");
* const entries = map.entries(); // [["foo", "bar"], ["baz", "bar"]]
* ```
*/
entries(): ([string, Value | Container])[];
/**
* Get the keys and the values. If the type of value is a child container,
* it will be resolved recursively.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* const text = map.setContainer("text", new LoroText());
* text.insert(0, "Hello");
* console.log(map.toJSON()); // {"foo": "bar", "text": "Hello"}
* ```
*/
toJSON(): any;
/**
* Get the parent container.
*
* - The parent container of the root tree is `undefined`.
* - The object returned is a new js object each time because it need to cross
* the WASM boundary.
*/
parent(): Container | undefined;
/**
* Whether the container is attached to a document.
*
* If it's detached, the operations on the container will not be persisted.
*/
isAttached(): boolean;
/**
* Get the attached container associated with this.
*
* Returns an attached `Container` that equals to this or created by this, otherwise `undefined`.
*/
getAttached(): LoroMap | undefined;
/**
* Delete all key-value pairs in the map.
*/
clear(): void;
/**
* Get the peer id of the last editor on the given entry
*/
getLastEditor(key: string): PeerID | undefined;
/**
* Check if the container is deleted
*/
isDeleted(): boolean;
/**
* Get the shallow value of the map.
*
* Unlike `toJSON()` which recursively resolves all containers to their values,
* `getShallowValue()` returns container IDs as strings for any nested containers.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* doc.setPeerId("1");
* const map = doc.getMap("map");
* map.set("key", "value");
* const subText = map.setContainer("text", new LoroText());
* subText.insert(0, "Hello");
*
* // Get shallow value - nested containers are represented by their IDs
* console.log(map.getShallowValue());
* // Output: { key: "value", text: "cid:1@1:Text" }
*
* // Get full value with nested containers resolved by `toJSON()`
* console.log(map.toJSON());
* // Output: { key: "value", text: "Hello" }
* ```
*/
getShallowValue(): Record;
/**
* The container id of this handler.
*/
readonly id: ContainerID;
/**
* Get the size of the map.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const map = doc.getMap("map");
* map.set("foo", "bar");
* console.log(map.size); // 1
* ```
*/
readonly size: number;
}
/**
* The handler of a list container.
*
* Learn more at https://loro.dev/docs/tutorial/list
*/
export class LoroMovableList {
free(): void;
/**
* Create a new detached LoroMovableList (not attached to any LoroDoc).
*
* The edits on a detached container will not be persisted.
* To attach the container to the document, please insert it into an attached container.
*/
constructor();
/**
* "MovableList"
*/
kind(): 'MovableList';
/**
* Delete elements from index to index + len.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* list.delete(0, 1);
* console.log(list.value); // []
* ```
*/
delete(index: number, len: number): void;
/**
* Get elements of the list. If the type of a element is a container, it will be
* resolved recursively.
*
* @example
* ```ts
* import { LoroDoc, LoroText } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* const text = list.insertContainer(1, new LoroText());
* text.insert(0, "Hello");
* console.log(list.toJSON()); // [100, "Hello"];
* ```
*/
toJSON(): any;
/**
* Get the parent container.
*
* - The parent container of the root tree is `undefined`.
* - The object returned is a new js object each time because it need to cross
* the WASM boundary.
*/
parent(): Container | undefined;
/**
* Whether the container is attached to a document.
*
* If it's detached, the operations on the container will not be persisted.
*/
isAttached(): boolean;
/**
* Get the attached container associated with this.
*
* Returns an attached `Container` that equals to this or created by this, otherwise `undefined`.
*/
getAttached(): LoroList | undefined;
/**
* Move the element from `from` to `to`.
*
* The new position of the element will be `to`.
* Move the element from `from` to `to`.
*
* The new position of the element will be `to`. This method is optimized to prevent redundant
* operations that might occur with a naive remove and insert approach. Specifically, it avoids
* creating surplus values in the list, unlike a delete followed by an insert, which can lead to
* additional values in cases of concurrent edits. This ensures more efficient and accurate
* operations in a MovableList.
*/
move(from: number, to: number): void;
/**
* Pop a value from the end of the list.
*/
pop(): Value | undefined;
/**
* Delete all elements in the list.
*/
clear(): void;
/**
* Get the creator of the list item at the given position.
*/
getCreatorAt(pos: number): PeerID | undefined;
/**
* Get the last mover of the list item at the given position.
*/
getLastMoverAt(pos: number): PeerID | undefined;
/**
* Get the last editor of the list item at the given position.
*/
getLastEditorAt(pos: number): PeerID | undefined;
/**
* Check if the container is deleted
*/
isDeleted(): boolean;
/**
* Get the shallow value of the movable list.
*
* Unlike `toJSON()` which recursively resolves all containers to their values,
* `getShallowValue()` returns container IDs as strings for any nested containers.
*
* ```js
* const doc = new LoroDoc();
* doc.setPeerId("1");
* const list = doc.getMovableList("list");
* list.insert(0, 1);
* list.insert(1, "two");
* const subList = list.insertContainer(2, new LoroList());
* subList.insert(0, "sub");
* list.getShallowValue(); // [1, "two", "cid:2@1:List"]
* list.toJSON(); // [1, "two", ["sub"]]
* ```
*/
getShallowValue(): Value[];
/**
* Get the id of this container.
*/
readonly id: ContainerID;
/**
* Get the length of list.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const list = doc.getList("list");
* list.insert(0, 100);
* list.insert(1, "foo");
* list.insert(2, true);
* console.log(list.length); // 3
* ```
*/
readonly length: number;
}
/**
* The handler of a text container. It supports rich text CRDT.
*
* Learn more at https://loro.dev/docs/tutorial/text
*/
export class LoroText {
free(): void;
/**
* Create a new detached LoroText (not attached to any LoroDoc).
*
* The edits on a detached container will not be persisted.
* To attach the container to the document, please insert it into an attached container.
*/
constructor();
/**
* "Text"
*/
kind(): 'Text';
/**
* Iterate each text span(internal storage unit)
*
* The callback function will be called for each span in the text.
* If the callback returns `false`, the iteration will stop.
*
* Limitation: you cannot access or alter the doc state when iterating (this is for performance consideration).
* If you need to access or alter the doc state, please use `toString` instead.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* text.iter((str) => (console.log(str), true));
* ```
*/
iter(callback: (string) => boolean): void;
/**
* Insert the string at the given index (utf-16 index).
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* ```
*/
insert(index: number, content: string): void;
/**
* Get a string slice (utf-16 index).
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* text.slice(0, 2); // "He"
* ```
*/
slice(start_index: number, end_index: number): string;
/**
* Get the character at the given position (utf-16 index).
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* text.charAt(0); // "H"
* ```
*/
charAt(pos: number): string;
/**
* Delete and return the string at the given range and insert a string at the same position (utf-16 index).
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* text.splice(2, 3, "llo"); // "llo"
* ```
*/
splice(pos: number, len: number, s: string): string;
/**
* Insert some string at utf-8 index.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insertUtf8(0, "Hello");
* ```
*/
insertUtf8(index: number, content: string): void;
/**
* Delete elements from index to index + len (utf-16 index).
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insert(0, "Hello");
* text.delete(1, 3);
* const s = text.toString();
* console.log(s); // "Ho"
* ```
*/
delete(index: number, len: number): void;
/**
* Delete elements from index to utf-8 index + len
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* text.insertUtf8(0, "Hello");
* text.deleteUtf8(1, 3);
* const s = text.toString();
* console.log(s); // "Ho"
* ```
*/
deleteUtf8(index: number, len: number): void;
/**
* Mark a range of text with a key and a value (utf-16 index).
*
* > You should call `configTextStyle` before using `mark` and `unmark`.
*
* You can use it to create a highlight, make a range of text bold, or add a link to a range of text.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* doc.configTextStyle({bold: {expand: "after"}});
* const text = doc.getText("text");
* text.insert(0, "Hello World!");
* text.mark({ start: 0, end: 5 }, "bold", true);
* ```
*/
mark(range: { start: number, end: number }, key: string, value: any): void;
/**
* Unmark a range of text with a key and a value (utf-16 index).
*
* > You should call `configTextStyle` before using `mark` and `unmark`.
*
* You can use it to remove highlights, bolds or links
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* doc.configTextStyle({bold: {expand: "after"}});
* const text = doc.getText("text");
* text.insert(0, "Hello World!");
* text.mark({ start: 0, end: 5 }, "bold", true);
* text.unmark({ start: 0, end: 5 }, "bold");
* ```
*/
unmark(range: { start: number, end: number }, key: string): void;
/**
* Convert the text to a string
*/
toString(): string;
/**
* Get the text in [Delta](https://quilljs.com/docs/delta/) format.
*
* The returned value will include the rich text information.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const text = doc.getText("text");
* doc.configTextStyle({bold: {expand: "after"}});
* text.insert(0, "Hello World!");
* text.mark({ start: 0, end: 5 }, "bold", true);
* console.log(text.toDelta()); // [ { insert: 'Hello', attributes: { bold: true } } ]
* ```
*/
toDelta(): Delta[];
/**
* Change the state of this text by delta.
*
* If a delta item is `insert`, it should include all the attributes of the inserted text.
* Loro's rich text CRDT may make the inserted text inherit some styles when you use
* `insert` method directly. However, when you use `applyDelta` if some attributes are
* inherited from CRDT but not included in the delta, they will be removed.
*
* Another special property of `applyDelta` is if you format an attribute for ranges out of
* the text length, Loro will insert new lines to fill the gap first. It's useful when you
* build the binding between Loro and rich text editors like Quill, which might assume there
* is always a newline at the end of the text implicitly.
*
* @example
* ```ts
* const doc = new LoroDoc();
* const text = doc.getText("text");
* doc.configTextStyle({bold: {expand: "after"}});
* text.insert(0, "Hello World!");
* text.mark({ start: 0, end: 5 }, "bold", true);
* const delta = text.toDelta();
* const text2 = doc.getText("text2");
* text2.applyDelta(delta);
* expect(text2.toDelta()).toStrictEqual(delta);
* ```
*/
applyDelta(delta: Delta[]): void;
/**
* Get the parent container.
*
* - The parent of the root is `undefined`.
* - The object returned is a new js object each time because it need to cross
* the WASM boundary.
*/
parent(): Container | undefined;
/**
* Whether the container is attached to a LoroDoc.
*
* If it's detached, the operations on the container will not be persisted.
*/
isAttached(): boolean;
/**
* Get the attached container associated with this.
*
* Returns an attached `Container` that is equal to this or created by this; otherwise, it returns `undefined`.
*/
getAttached(): LoroText | undefined;
/**
* Push a string to the end of the text.
*/
push(s: string): void;
/**
* Get the editor of the text at the given position.
*/
getEditorOf(pos: number): PeerID | undefined;
/**
* Check if the container is deleted
*/
isDeleted(): boolean;
/**
* Get the shallow value of the text. This equals to `text.toString()`.
*/
getShallowValue(): string;
/**
* Get the JSON representation of the text.
*/
toJSON(): any;
/**
* Get the container id of the text.
*/
readonly id: ContainerID;
/**
* Get the length of text (utf-16 length).
*/
readonly length: number;
}
/**
* The handler of a tree(forest) container.
*
* Learn more at https://loro.dev/docs/tutorial/tree
*/
export class LoroTree {
free(): void;
/**
* Create a new detached LoroTree (not attached to any LoroDoc).
*
* The edits on a detached container will not be persisted.
* To attach the container to the document, please insert it into an attached container.
*/
constructor();
/**
* "Tree"
*/
kind(): 'Tree';
/**
* Move the target tree node to be a child of the parent.
* It's not allowed that the target is an ancestor of the parent
* or the target and the parent are the same node.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* const node = root.createNode();
* const node2 = node.createNode();
* tree.move(node2.id, root.id);
* // Error will be thrown if move operation creates a cycle
* // tree.move(root.id, node.id);
* ```
*/
move(target: TreeID, parent: TreeID | undefined, index?: number | null): void;
/**
* Delete a tree node from the forest.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* const node = root.createNode();
* tree.delete(node.id);
* ```
*/
delete(target: TreeID): void;
/**
* Return `true` if the tree contains the TreeID, include deleted node.
*/
has(target: TreeID): boolean;
/**
* Return `None` if the node is not exist, otherwise return `Some(true)` if the node is deleted.
*/
isNodeDeleted(target: TreeID): boolean;
/**
* Get the hierarchy array with metadata of the forest.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* root.data.set("color", "red");
* // [ { id: '0@F2462C4159C4C8D1', parent: null, meta: { color: 'red' }, children: [] } ]
* console.log(tree.toJSON());
* ```
*/
toJSON(): any;
/**
* Get all tree nodes of the forest, including deleted nodes.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* const node = root.createNode();
* const node2 = node.createNode();
* console.log(tree.nodes());
* ```
*/
nodes(): LoroTreeNode[];
/**
* Get the root nodes of the forest.
*/
roots(): LoroTreeNode[];
/**
* Get the parent container of the tree container.
*
* - The parent container of the root tree is `undefined`.
* - The object returned is a new js object each time because it need to cross
* the WASM boundary.
*/
parent(): Container | undefined;
/**
* Whether the container is attached to a document.
*
* If it's detached, the operations on the container will not be persisted.
*/
isAttached(): boolean;
/**
* Get the attached container associated with this.
*
* Returns an attached `Container` that equals to this or created by this, otherwise `undefined`.
*/
getAttached(): LoroTree | undefined;
/**
* Set whether to generate a fractional index for moving and creating.
*
* A fractional index can be used to determine the position of tree nodes among their siblings.
*
* The jitter is used to avoid conflicts when multiple users are creating a node at the same position.
* A value of 0 is the default, which means no jitter; any value larger than 0 will enable jitter.
*
* Generally speaking, higher jitter value will increase the size of the operation
* [Read more about it](https://www.loro.dev/blog/movable-tree#implementation-and-encoding-size)
*/
enableFractionalIndex(jitter: number): void;
/**
* Disable the fractional index generation when you don't need the Tree's siblings to be sorted.
* The fractional index will always be set to the same default value 0.
*
* After calling this, you cannot use `tree.moveTo()`, `tree.moveBefore()`, `tree.moveAfter()`,
* and `tree.createAt()`.
*/
disableFractionalIndex(): void;
/**
* Whether the tree enables the fractional index generation.
*/
isFractionalIndexEnabled(): boolean;
/**
* Check if the container is deleted
*/
isDeleted(): boolean;
/**
* Get the shallow value of the tree.
*
* Unlike `toJSON()` which recursively resolves nested containers to their values,
* `getShallowValue()` returns container IDs as strings for any nested containers.
*
* @example
* ```ts
* const doc = new LoroDoc();
* doc.setPeerId("1");
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* root.data.set("name", "root");
* const text = root.data.setContainer("content", new LoroText());
* text.insert(0, "Hello");
*
* console.log(tree.getShallowValue());
* // [{
* // id: "0@1",
* // parent: null,
* // index: 0,
* // fractional_index: "80",
* // meta: "cid:0@1:Map",
* // children: []
* // }]
*
* console.log(tree.toJSON());
* // [{
* // id: "0@1",
* // parent: null,
* // index: 0,
* // fractional_index: "80",
* // meta: {
* // name: "root",
* // content: "Hello"
* // },
* // children: []
* // }]
* ```
*/
getShallowValue(): TreeNodeShallowValue[];
/**
* Get the id of the container.
*/
readonly id: ContainerID;
}
/**
* The handler of a tree node.
*/
export class LoroTreeNode {
private constructor();
free(): void;
__getClassname(): string;
/**
* Move the tree node to be after the target node.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* const node = root.createNode();
* const node2 = root.createNode();
* node2.moveAfter(node);
* // root
* // / \
* // node node2
* ```
*/
moveAfter(target: LoroTreeNode): void;
/**
* Move the tree node to be before the target node.
*
* @example
* ```ts
* import { LoroDoc } from "loro-crdt";
*
* const doc = new LoroDoc();
* const tree = doc.getTree("tree");
* const root = tree.createNode();
* const node = root.createNode();
* const node2 = root.createNode();
* node2.moveBefore(node);
* // root
* // / \
* // node2 node
* ```
*/
moveBefore(target: LoroTreeNode): void;
/**
* Get the index of the node in the parent's children.
*/
index(): number | undefined;
/**
* Get the `Fractional Index` of the node.
*
* Note: the tree container must be attached to the document.
*/
fractionalIndex(): string | undefined;
/**
* Check if the node is deleted.
*/
isDeleted(): boolean;
/**
* Get the last mover of this node.
*/
getLastMoveId(): { peer: PeerID, counter: number } | undefined;
/**
* Get the creation id of this node.
*/
creationId(): { peer: PeerID, counter: number };
/**
* Get the creator of this node.
*/
creator(): PeerID;
/**
* The TreeID of the node.
*/
readonly id: TreeID;
}
/**
* `UndoManager` is responsible for handling undo and redo operations.
*
* By default, the maxUndoSteps is set to 100, mergeInterval is set to 1000 ms.
*
* Each commit made by the current peer is recorded as an undo step in the `UndoManager`.
* Undo steps can be merged if they occur within a specified merge interval.
*
* Note that undo operations are local and cannot revert changes made by other peers.
* To undo changes made by other peers, consider using the time travel feature.
*
* Once the `peerId` is bound to the `UndoManager` in the document, it cannot be changed.
* Otherwise, the `UndoManager` may not function correctly.
*/
export class UndoManager {
free(): void;
/**
* `UndoManager` is responsible for handling undo and redo operations.
*
* PeerID cannot be changed during the lifetime of the UndoManager.
*
* Note that undo operations are local and cannot revert changes made by other peers.
* To undo changes made by other peers, consider using the time travel feature.
*
* Each commit made by the current peer is recorded as an undo step in the `UndoManager`.
* Undo steps can be merged if they occur within a specified merge interval.
*
* ## Config
*
* - `mergeInterval`: Optional. The interval in milliseconds within which undo steps can be merged. Default is 1000 ms.
* - `maxUndoSteps`: Optional. The maximum number of undo steps to retain. Default is 100.
* - `excludeOriginPrefixes`: Optional. An array of string prefixes. Events with origins matching these prefixes will be excluded from undo steps.
* - `onPush`: Optional. A callback function that is called when an undo/redo step is pushed.
* The function can return a meta data value that will be attached to the given stack item.
* - `onPop`: Optional. A callback function that is called when an undo/redo step is popped.
* The function will have a meta data value that was attached to the given stack item when
* `onPush` was called.
*/
constructor(doc: LoroDoc, config: UndoConfig);
/**
* Undo the last operation.
*/
undo(): boolean;
/**
* Redo the last undone operation.
*/
redo(): boolean;
/**
* Can undo the last operation.
*/
canUndo(): boolean;
/**
* Can redo the last operation.
*/
canRedo(): boolean;
/**
* The number of max undo steps.
* If the number of undo steps exceeds this number, the oldest undo step will be removed.
*/
setMaxUndoSteps(steps: number): void;
/**
* Set the merge interval (in ms).
*
* If the interval is set to 0, the undo steps will not be merged.
* Otherwise, the undo steps will be merged if the interval between the two steps is less than the given interval.
*/
setMergeInterval(interval: number): void;
/**
* If a local event's origin matches the given prefix, it will not be recorded in the
* undo stack.
*/
addExcludeOriginPrefix(prefix: string): void;
clear(): void;
}
/**
* [VersionVector](https://en.wikipedia.org/wiki/Version_vector)
* is a map from [PeerID] to [Counter]. Its a right-open interval.
*
* i.e. a [VersionVector] of `{A: 1, B: 2}` means that A has 1 atomic op and B has 2 atomic ops,
* thus ID of `{client: A, counter: 1}` is out of the range.
*/
export class VersionVector {
free(): void;
/**
* Create a new version vector.
*/
constructor(value: Map | Uint8Array | VersionVector | undefined | null);
/**
* Create a new version vector from a Map.
*/
static parseJSON(version: Map): VersionVector;
/**
* Convert the version vector to a Map
*/
toJSON(): Map;
/**
* Encode the version vector into a Uint8Array.
*/
encode(): Uint8Array;
/**
* Decode the version vector from a Uint8Array.
*/
static decode(bytes: Uint8Array): VersionVector;
/**
* Get the counter of a peer.
*/
get(peer_id: number | bigint | `${number}`): number | undefined;
/**
* Compare the version vector with another version vector.
*
* If they are concurrent, return undefined.
*/
compare(other: VersionVector): number | undefined;
/**
* set the exclusive ending point. target id will NOT be included by self
*/
setEnd(id: { peer: PeerID, counter: number }): void;
/**
* set the inclusive ending point. target id will be included
*/
setLast(id: { peer: PeerID, counter: number }): void;
remove(peer: PeerID): void;
length(): number;
}
